Case 580SR+ - Page 553

SECTION 27 - REAR AXLE 61

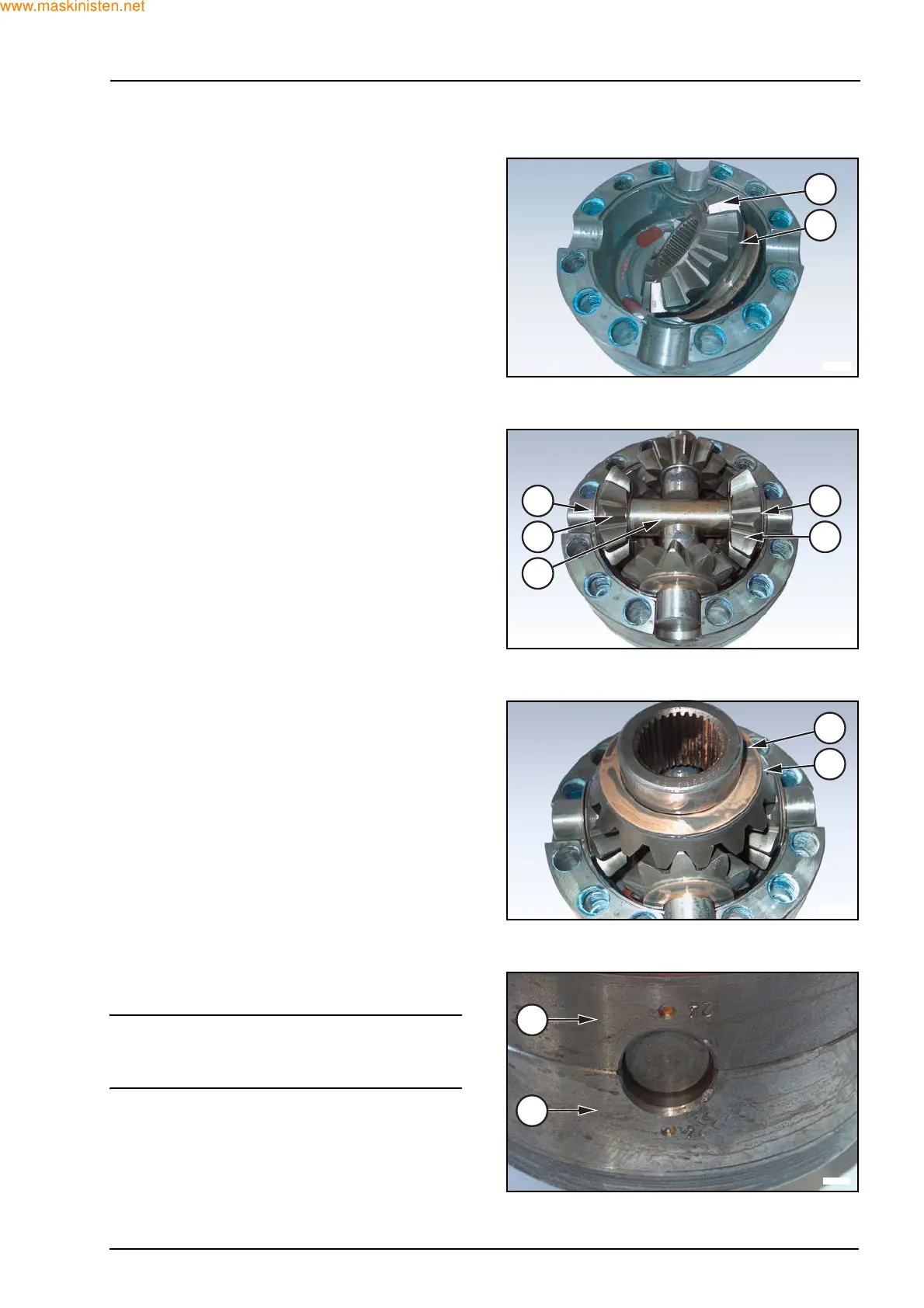

Assemble the gear (16) and the shim (17).
Position the shaft (13), the gears (14) and the spher-
ical washers (15).
Assemble the gear (12) and the shim (11).
Assemble the two half housings of the differential
unit (8) and (9).
SWARNING
Carefully check that the marks of both differential
half housings coincide.
16
17
F28064
15
14
15
14
13
F28060
11
12
F28066
F28058
8
9
