78 SECTION 27 - REAR AXLE

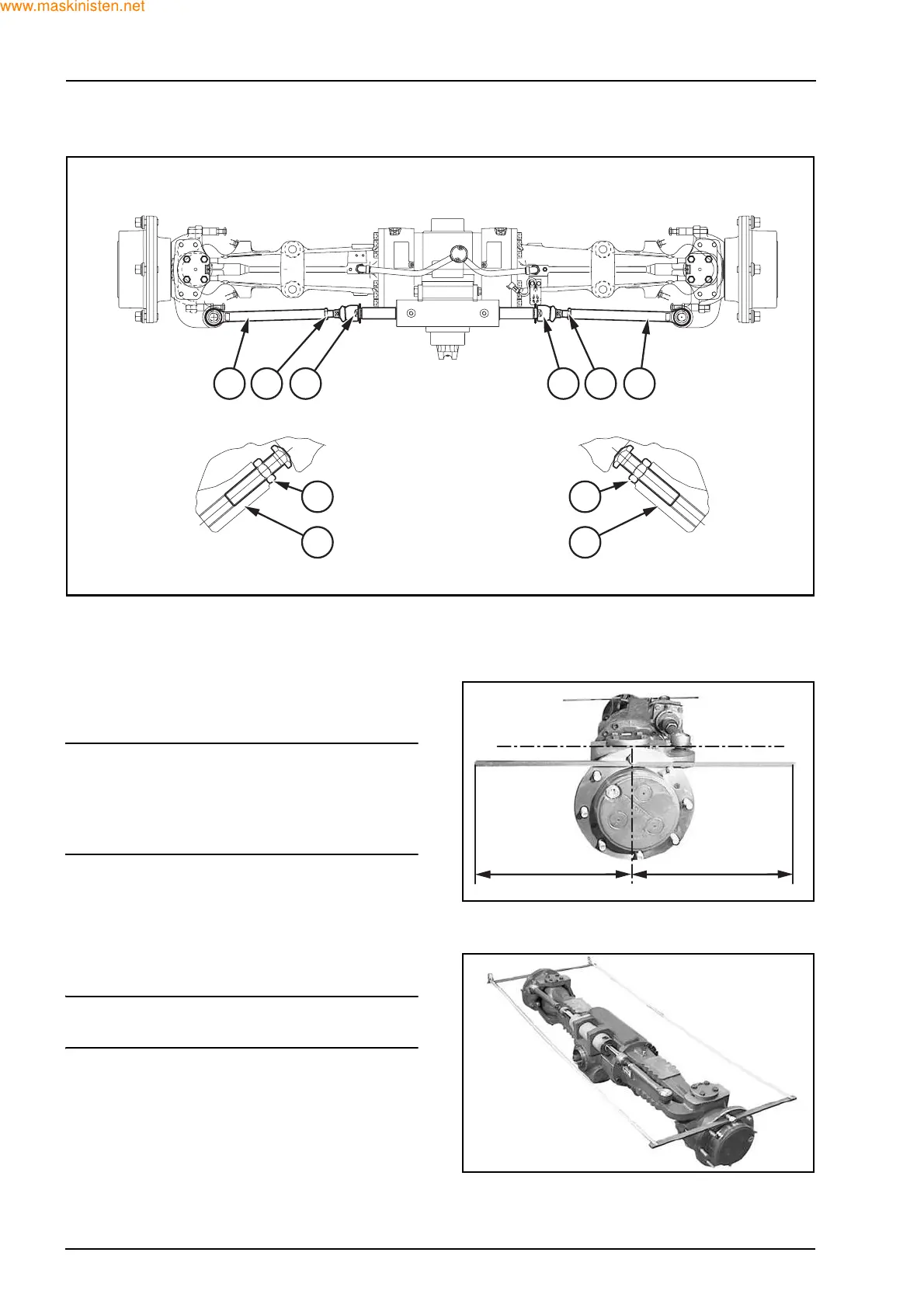

TOE-IN/STEERING ANGLE ADJUSTMENT
Toe-in
Put two equal one-metre-long linear bars on the
wheel sides and lock them with two nuts on the
wheel hub stud bolt.
SWARNING
The two bars should be fixed on their middle so that
they are perpendicular to the supporting surface
and parallel to the pinion shaft axis; align the two
bars.
Measure the distance in mm (M) between the bars
ends with a tapeline.
NOTE: keep the minimum value, swinging the
measurement point.
F28099
1 2 3 3 2 1
5
4
5
4
F27340
500 mm500 mm
F27341
