SECTION 27 - REAR AXLE 79

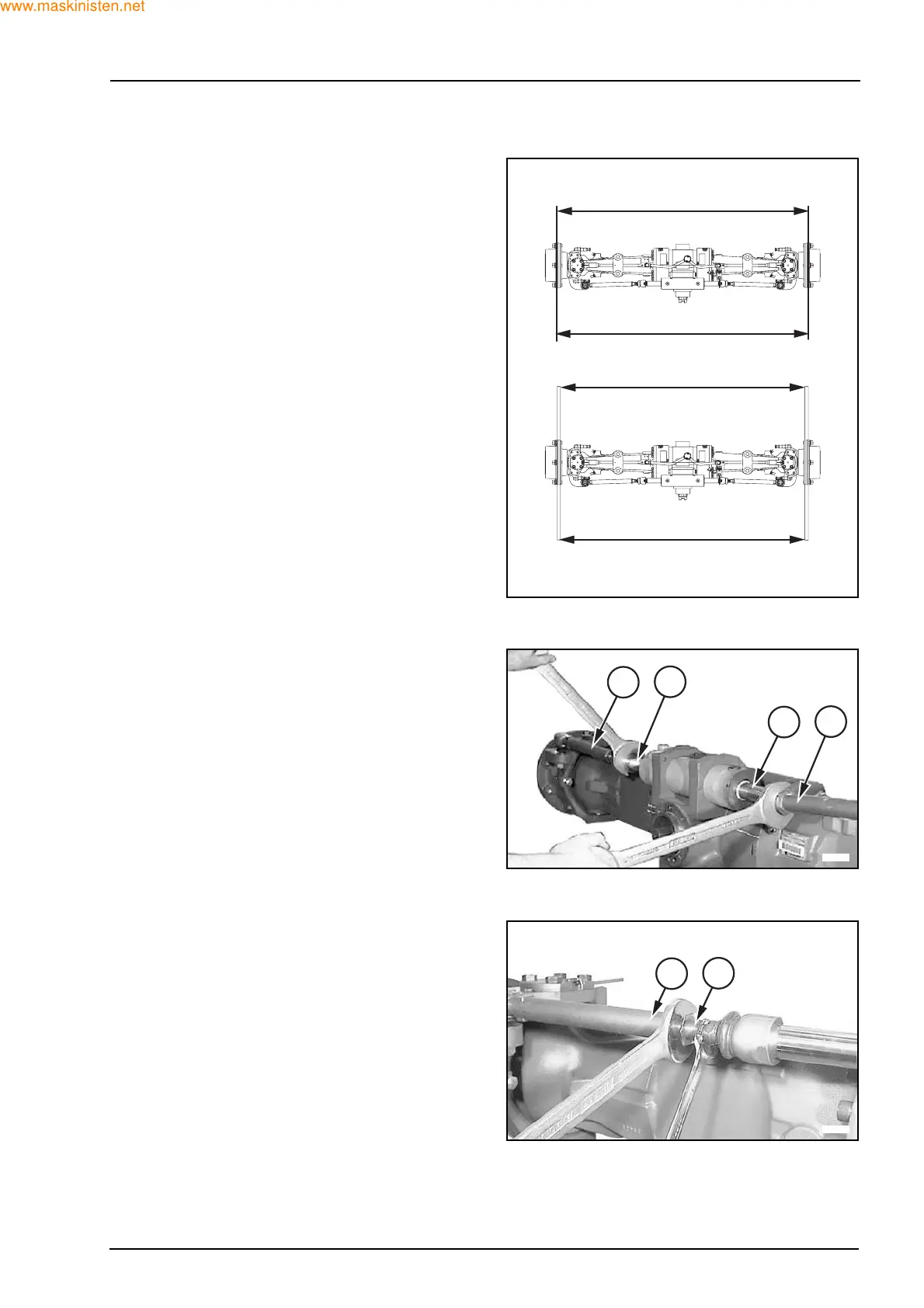

Check that the difference of the measurements be-
tween the wheel hubs diameters ends is within the
requested tolerance range.
The nominal toe-in value (A) is referred to the exter-
nal diameter of the wheel hubs flange, therefore the
measured value (M) at the bars ends must be relat-
ed to the ratio between length of the bar and flange
diameter
nominal toe-in= A
-2
→ measured toe-in= M
-5
If toe-in is incorrect, operate with two wrenches on
the guide rods (1) screwing in and out the two joint
tie rods (3) equally till the toe-in is within the request-
ed tolerance.
After adjusting, screw in the locknuts (2) of the guide
rods (1) to the specified torque.
