Case 580SR+ - Page 619

SECTION 35 - HYDRAULIC SYSTEM 29

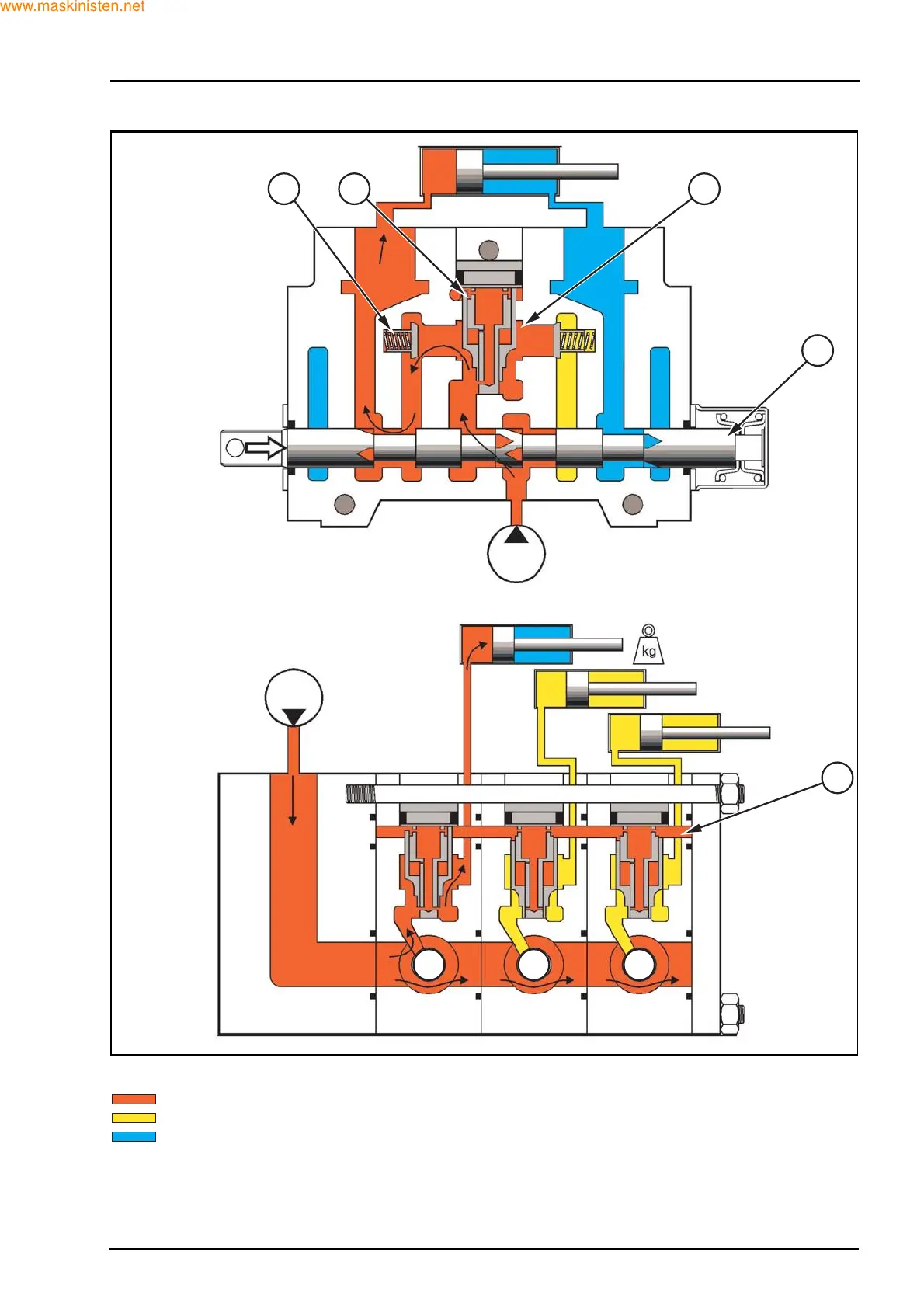

Load sensing flow sharing - One spool operating
Pump pressure
Trapped oil
Return to oil tank
1. Load non-return check valve
2. Load sense line
3. Pressure compensator
4. Spool
4
321
2
4 4 4
F29290
