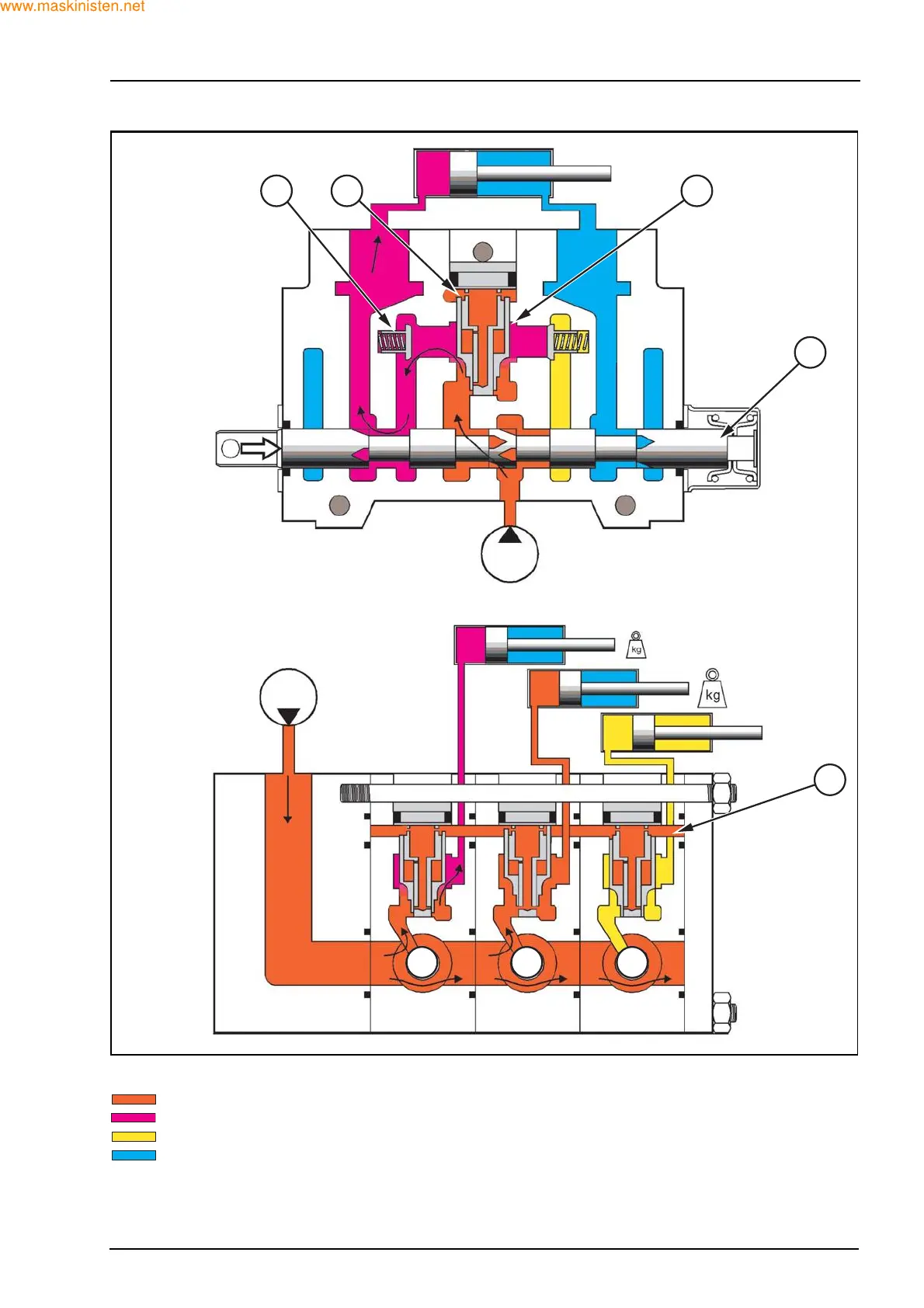

Load sensing flow sharing - Two spools operating
1
st
spool operating pressure
2
st
spool operating pressure
Trapped oil
Return to oil tank
1. Load non-return check valve
2. Load sense line
3. Pressure compensator
4. Spool
4
321
2
4 4 4
F29292
