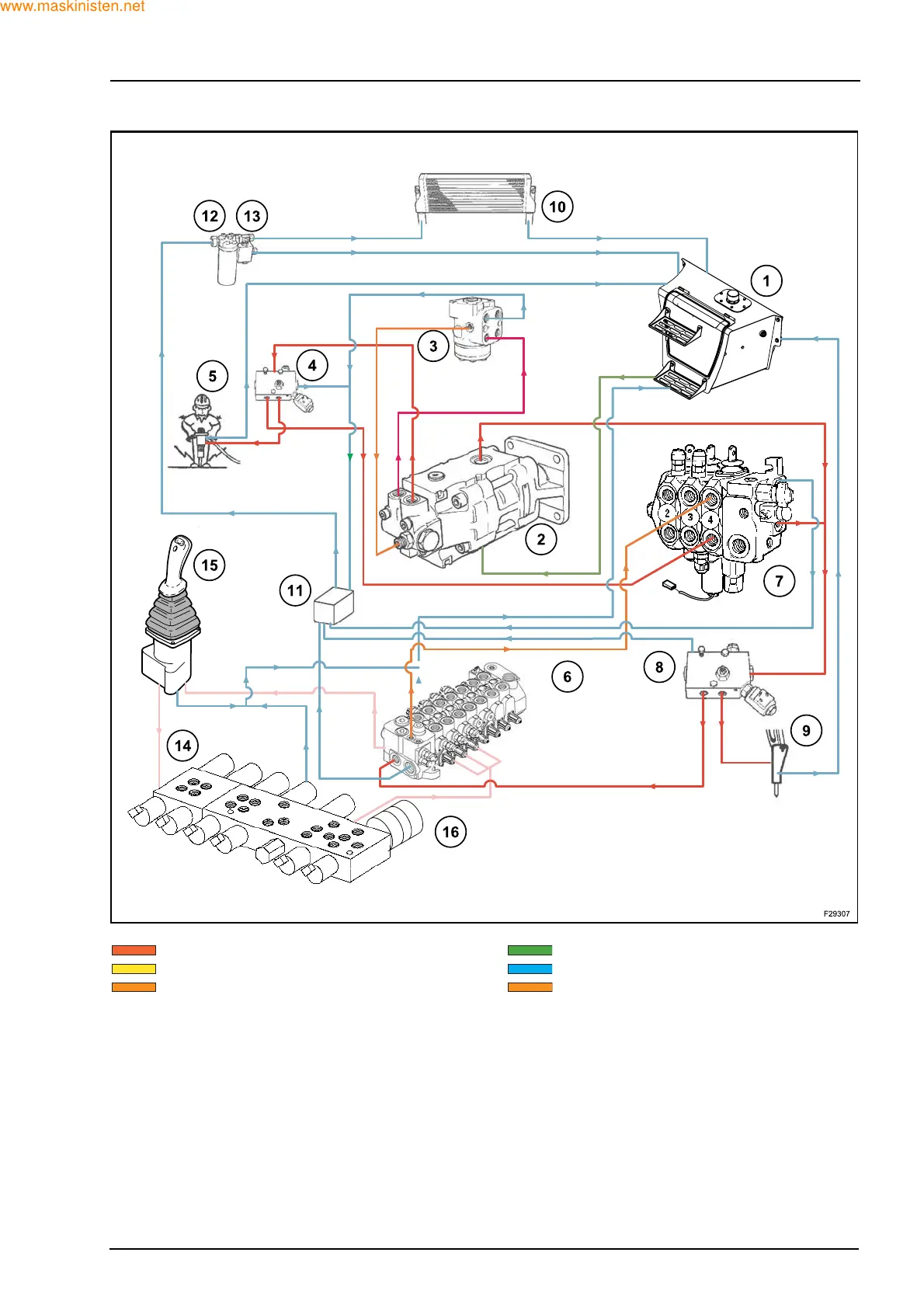

SECTION 35 - HYDRAULIC SYSTEM 41
Hydraulic system oil
Steering system oil
Load sensing oil
Suction oil
Return to oil tank
Control circuit oil
1. Hydraulic tank
2. Pump
3. Power steering
4. Hand hammer control valve
5. Hand hammer
6. Backhoe attachment control valve
7. Loader attachment control valve
8. Backhoe hammer control valve
9. Backhoe hammer
10. Oil cooler
11. Return line distributor block
12. Filter
13. Oil cooler by-pass valve
14. Solenoid valve for piloting hydraulic backhoe
control valve
15. Hydraulic control lever
16. Accumulator
