SECTION 35 - HYDRAULIC SYSTEM 47

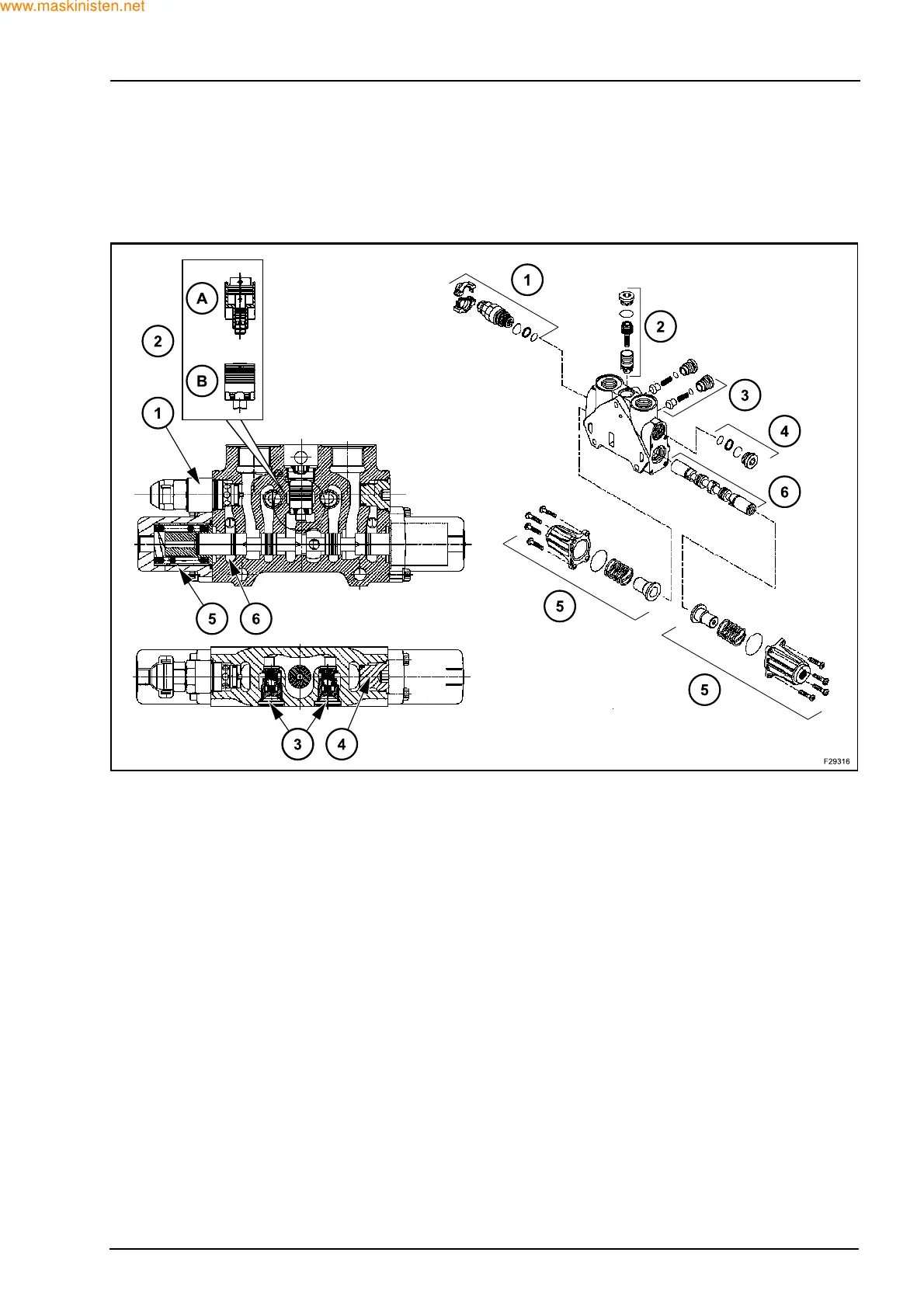

Disassembly of control valve sections (with hy-
draulic control)
In this section are indicated all possible solutions rel-
evant to backhoe control valve sections with hydrau-
lic control.
1. Secondary relief valve
2. Pressure compensator
2A. Pressure compensator with shock absorber
2B. Fixed pressure compensator
3. Check valve
4. Plug
5. Spring return system with guide
6. Spool
