SECTION 35 - HYDRAULIC SYSTEM 73

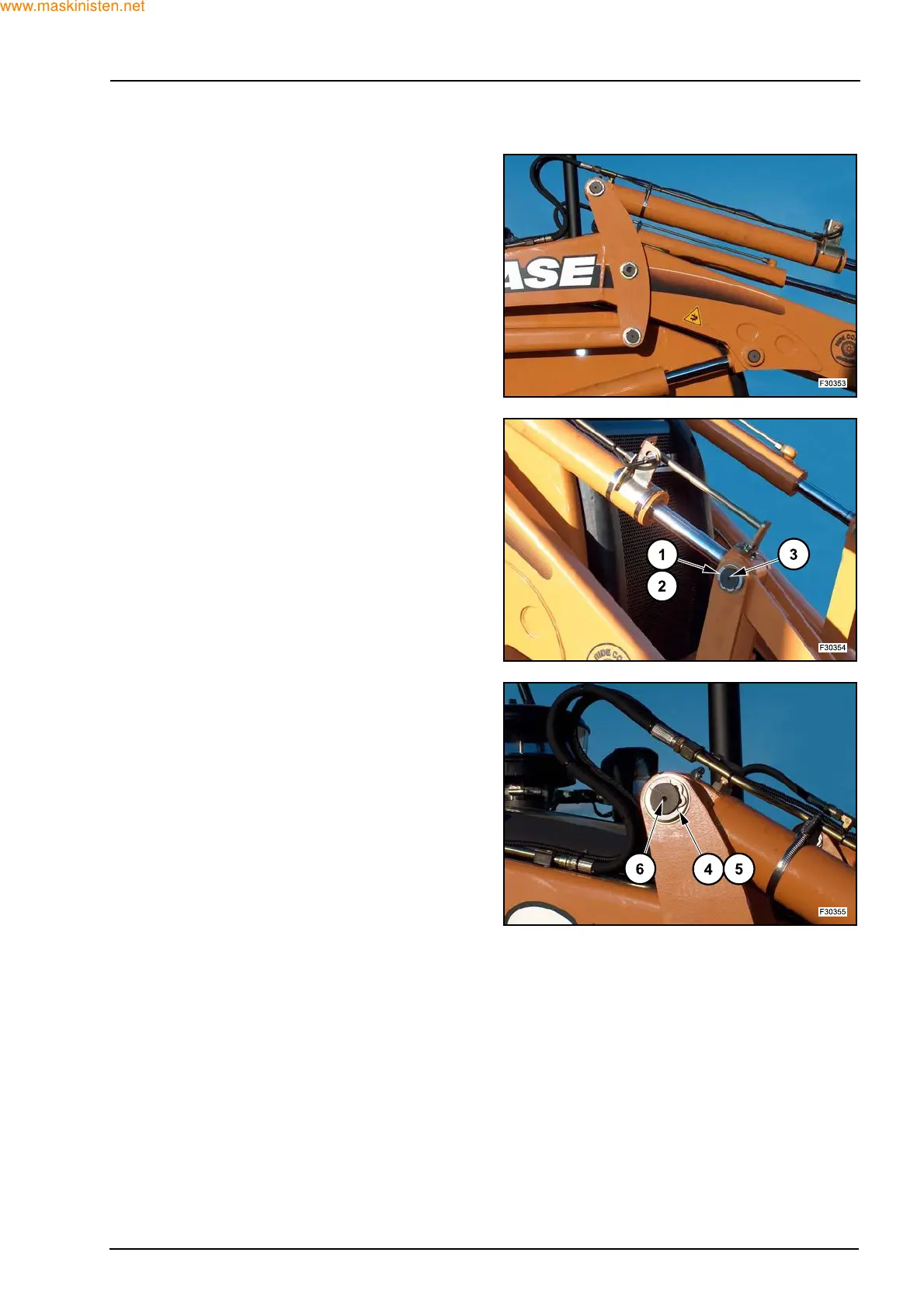

CYLINDER REMOVAL
Park machine on a flat surface and position the
bucket firmly on the ground.
Relieve the residual pressure in the system by mov-
ing the loader control lever through all operating po-
sitions.
Support the cylinder using sling and suitable hoist.
Disconnect the hydraulic hoses.
Support the link rods.
Remove the snap ring (1) with the spacer (2).
Remove the pin (3) using an hammer.
Remove the snap ring (4) with the spacer (5).
Remove the pin (6) using an hammer.
Remove the loader bucket cylinder.
