74 SECTION 35 - HYDRAULIC SYSTEM

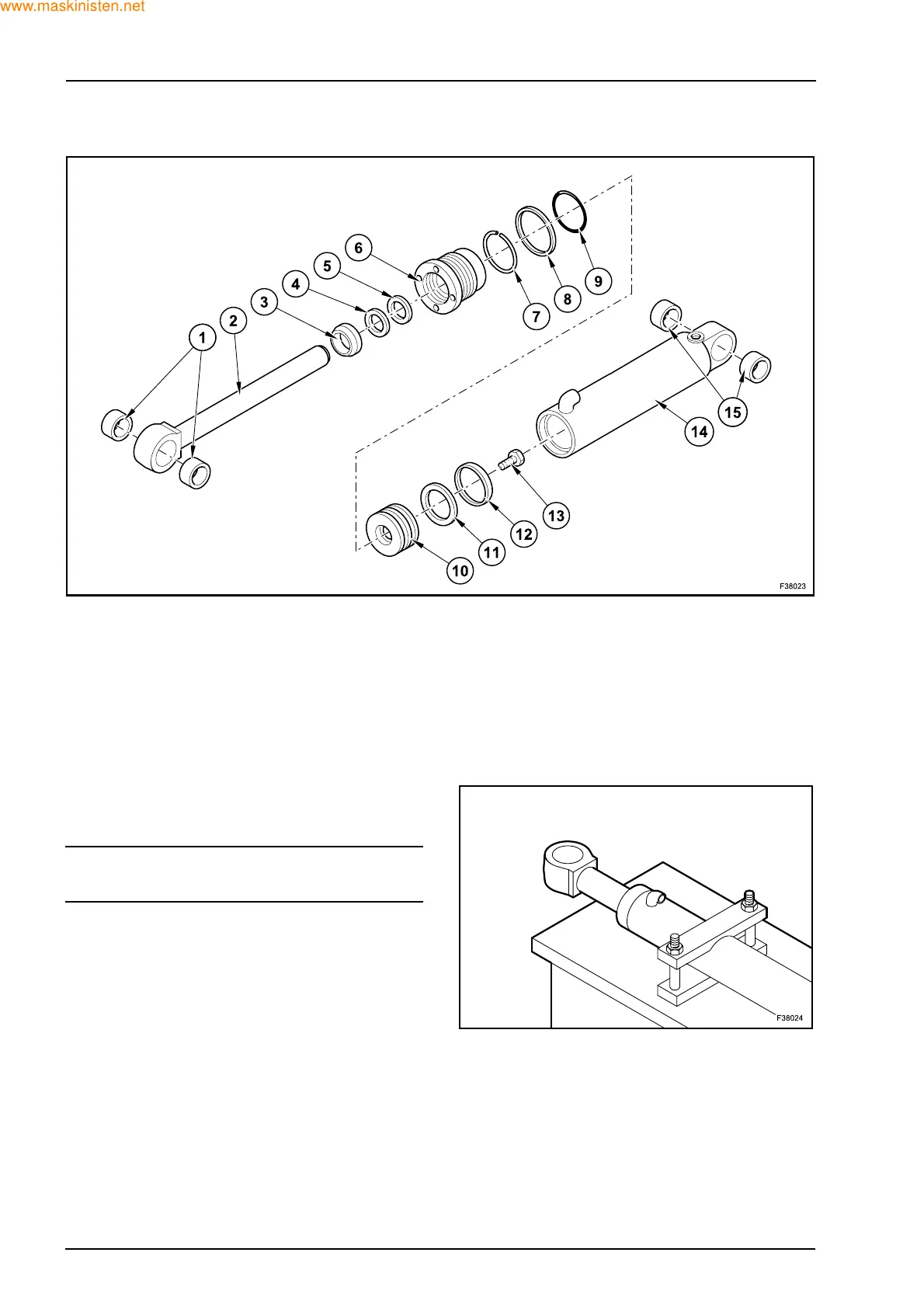

DISASSEMBLY CYLINDER
1. Bushing
2. Cylinder rod
3. Wiper ring
4. Ring seal
5. Ring seal
6. Cylinder head
7. Snap ring
8. Back-up ring
9. O-ring
10. Piston
11. Piston gasket
12. Piston guide
13. Screw
14. Cylinder tube
15. Bushing
The disassembly procedure that follows takes into
consideration the hydraulic piping already disas-
sembled.
SWARNING
Cylinder weight: 32.5 kg
Lift and securely place the cylinder on a workbench.
Be sure that the cylinder is placed horizontally. Drain
hydraulic oil from the cylinder.
