112 SECTION 35 - HYDRAULIC SYSTEM

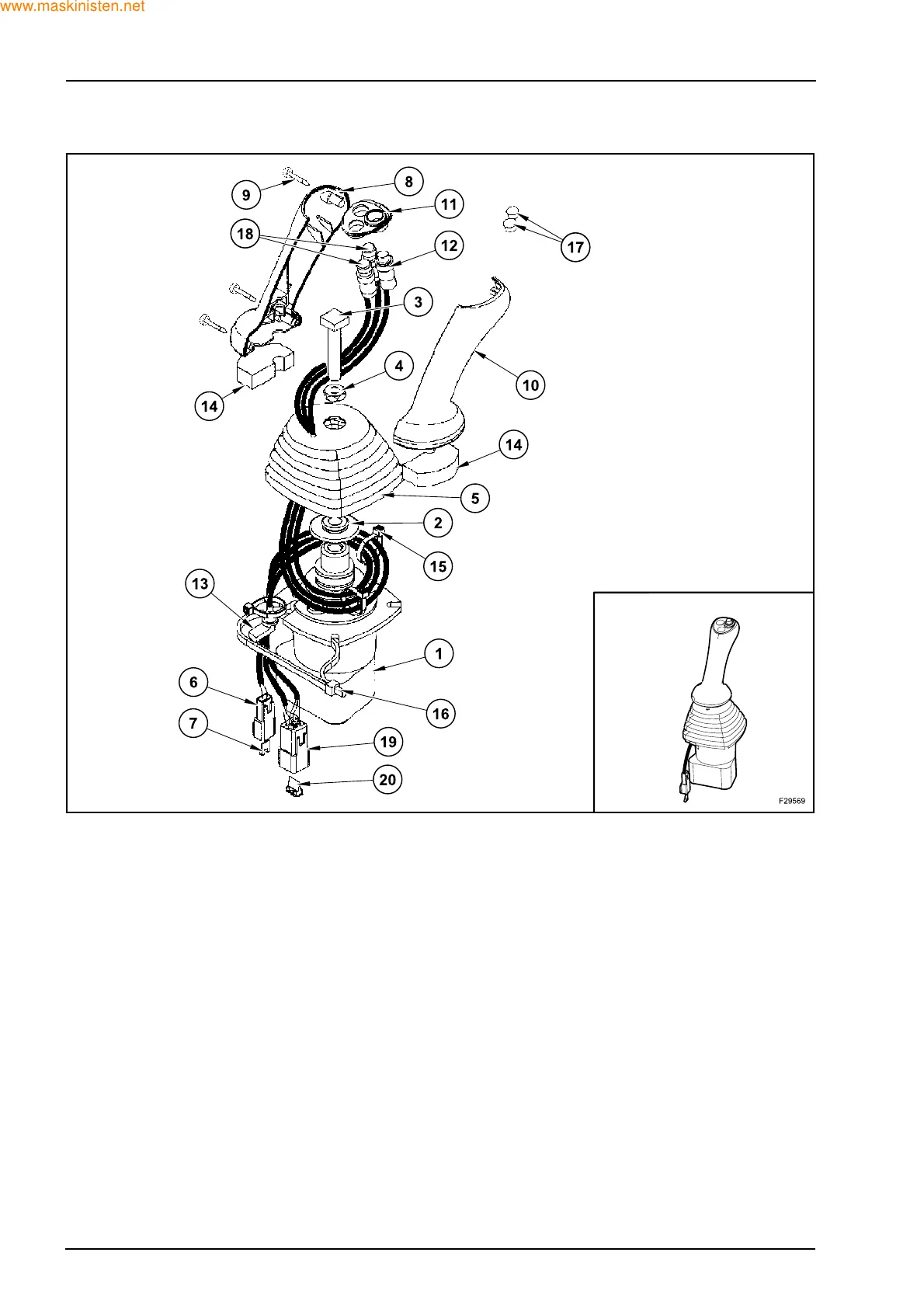

LEFT HAND CONTROL LEVER
1. Valve
2. Plate
3. Screw
4. Nut
5. Boot
6. Connector
7. Wedge
8. Half handle
9. Screw
10. Half handle
11. Cover
12. Switch push button (horn)
13. Washer
14. Spacer
15. Clip
16. Clip
17. Plugs [if the switches (18) are not fitted]
18. Switch push buttons (aux bi-dir)
19. Connector
20. Wedge
