8 SECTION 39 - CHASSIS
2.3 COMPONENTS ATTACHED OUTSIDE THE CHASSIS
TANKS

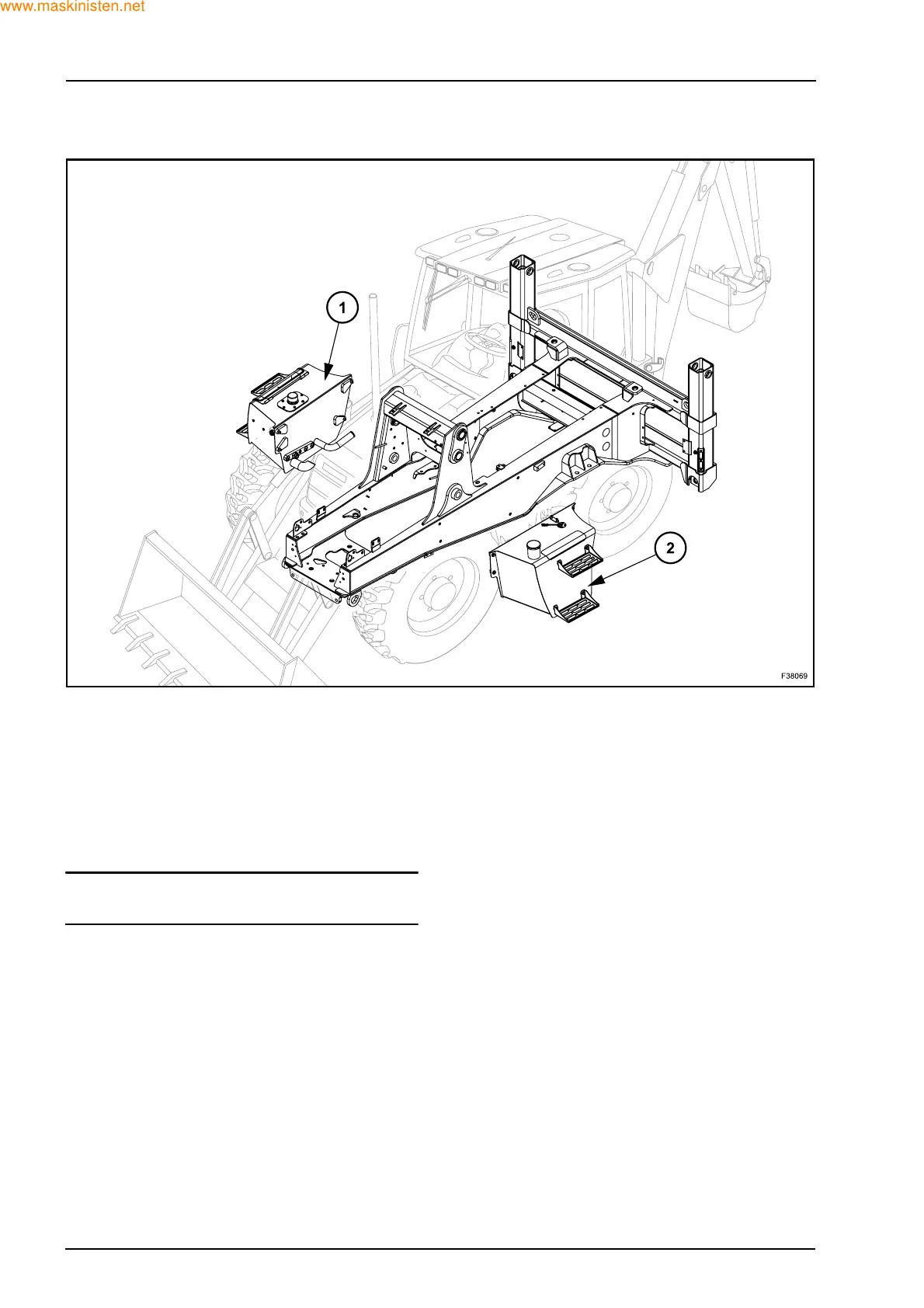

Attached to the chassis below the cab are the tanks
for hydraulic oil (1) mounted to the right hand side of
the machine and the fuel tank (2) mounted to the left
hand side of the machine.
Both tanks when drained of their contents can be re-
moved from the machine by removal of the attach-
ing pipe work and supporting bolts.
IMPORTANT: ensure all ports and pipes are
plugged or blanked off to prevent dirt ingress.
