Case 580SR+ - Page 723

SECTION 39 - CHASSIS 9

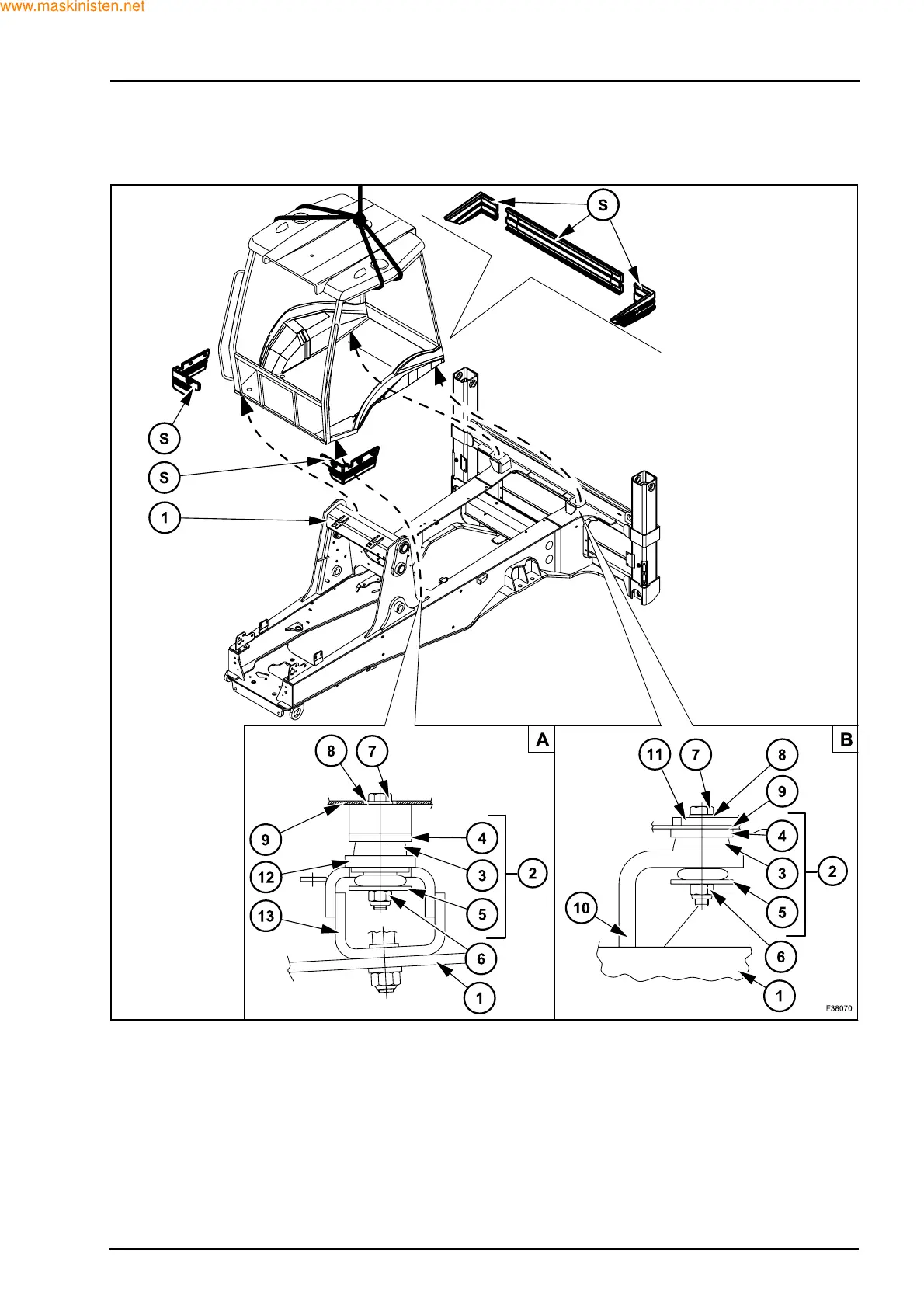

2.4 COMPONENTS ATTACHED ON THE CHASSIS
CAB
A. Front fixing
B. Rear fixing
S. Cab skirts
1. Main frame
2. Anti-vibration
3. Dampener
4. Washer
5. Washer
6. Nut
7. Retaining screw
8. Washer
9. Cab floor
10. Cab support (rear)
11. Support
12. Bushing
13. Cab support (front)
