SECTION 41 - STEERING SYSTEM 23

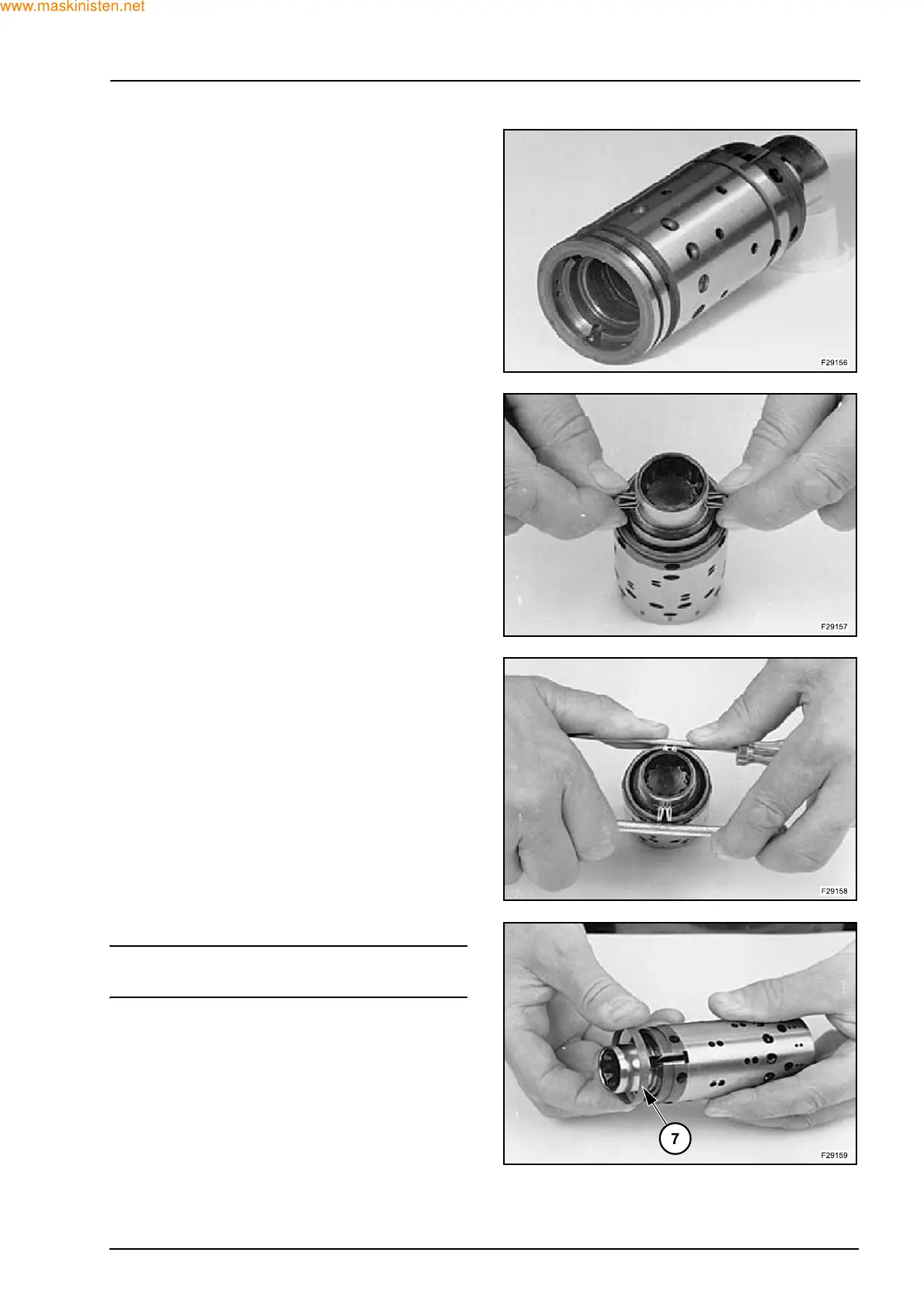

Assemble spool and sleeve.
When assembling spool and sleeve only one of two
possible ways of positioning the spring slots is cor-
rect. There are three slots in the spool and three
holes in the sleeve in the end of the spool/sleeve op-
posite to the end with spring slots. Place the slots
and holes opposite each other so that parts of the
holes in the sleeve are visible through the slots in the
spool.
Press the springs together and push them into the
sleeve.
Line up the springs and centre them.
Guide the ring (7) down over the sleeve.
NOTE: the ring should be able to move - free of
springs.
