24 SECTION 41 - STEERING SYSTEM

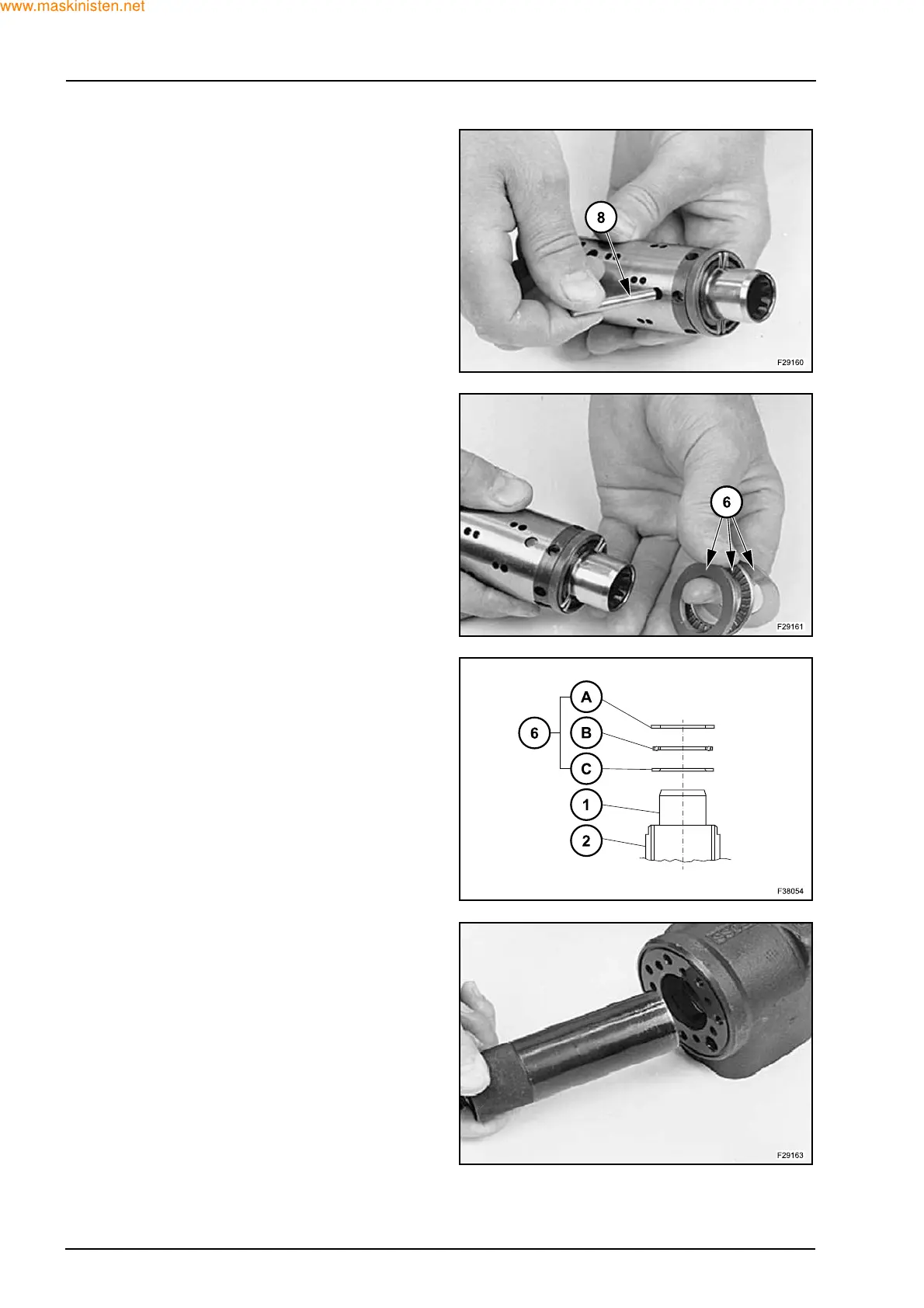

Fit the cross pin (8) into the spool/sleeve.
Fit bearing races and needle bearings (6) as shown
on the next drawing.
1. Spool
2. Sleeve
6. Bearing - needle
6A. Outer bearing race
6B. Needle bearing
6C. Inner bearing race
The inside chamfer on the inner bearing race must
face the inner spool.
Turn the steering unit until the bore is horizontal.
Guide the outer part of the assembly tool into the
bore for the spool/sleeve.
