28 SECTION 41 - STEERING SYSTEM

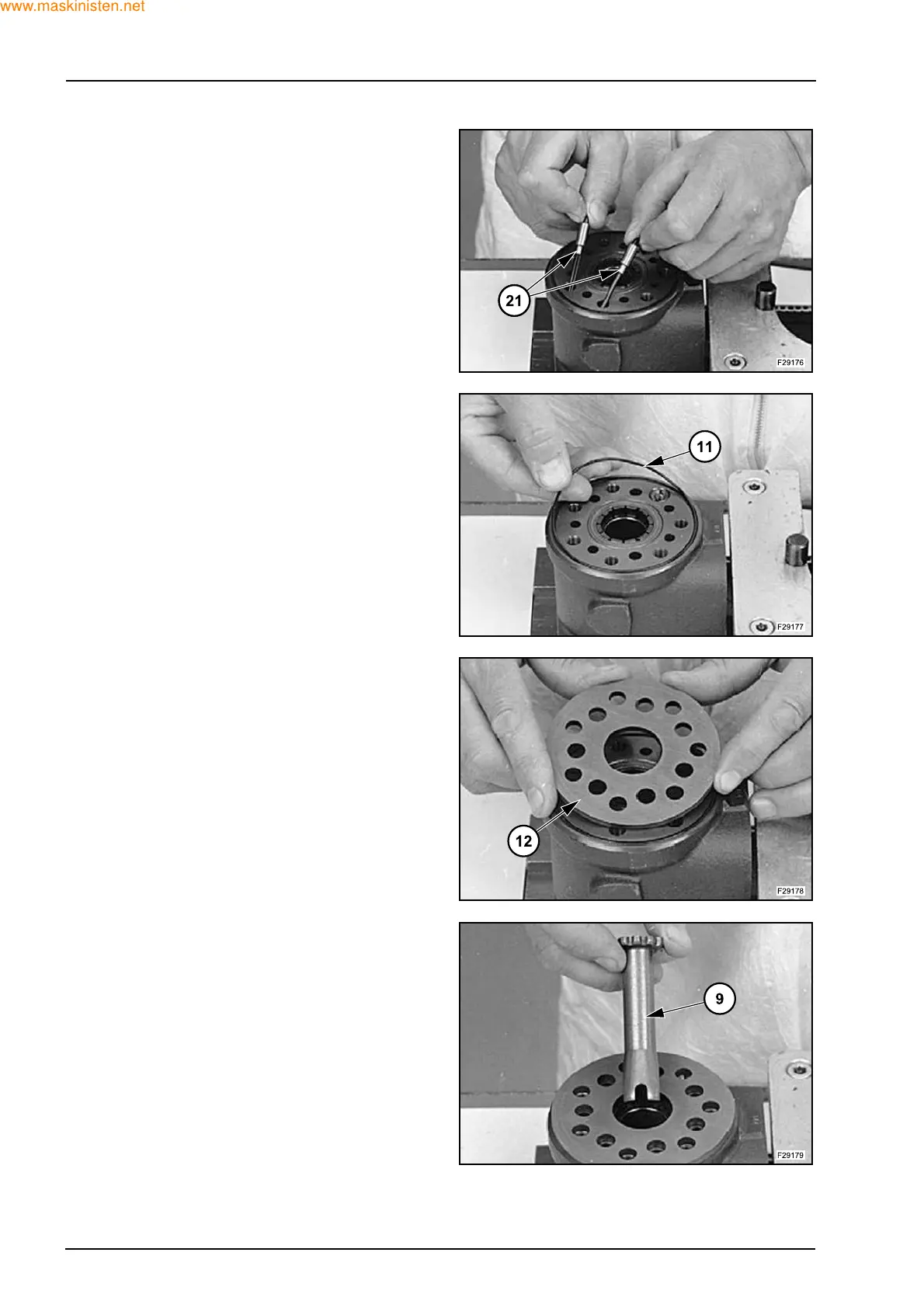

Insert the pins (21) into the same two holes.
Grease the O-ring (11) with mineral oil.
Position the distributor plate (12) so that the channel
holes match the holes in the housing.
Guide the cardan shaft (9) down into the bore so that
the slot is parallel with the connection flange.
