SECTION 41 - STEERING SYSTEM 29

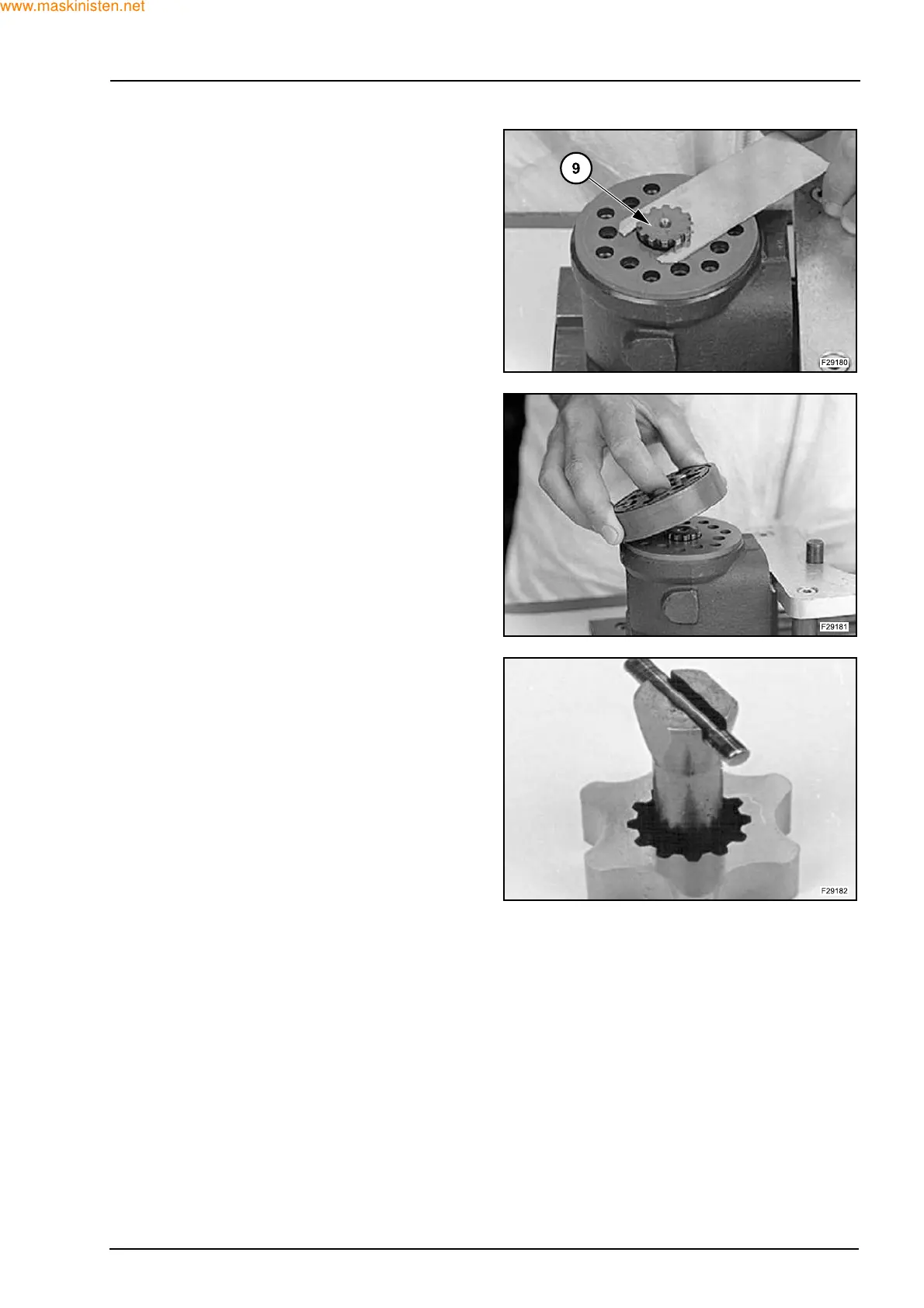

Place the cardan shaft (9) as shown - so that it is
held in position by the mounting fork.
Grease the two O-rings and place them in the two
grooves in the gear rim. Insert the rotor/stator gear
and the rim on the cardan shaft.
Fit the gearwheel (rotor) and cardan shaft so that a
tooth base in the rotor is positioned in relation to the
shaft slot as shown. Turn the gear so that the seven
through holes match the holes in the housing.
