30 SECTION 41 - STEERING SYSTEM
For precise keying and alignment of steering control

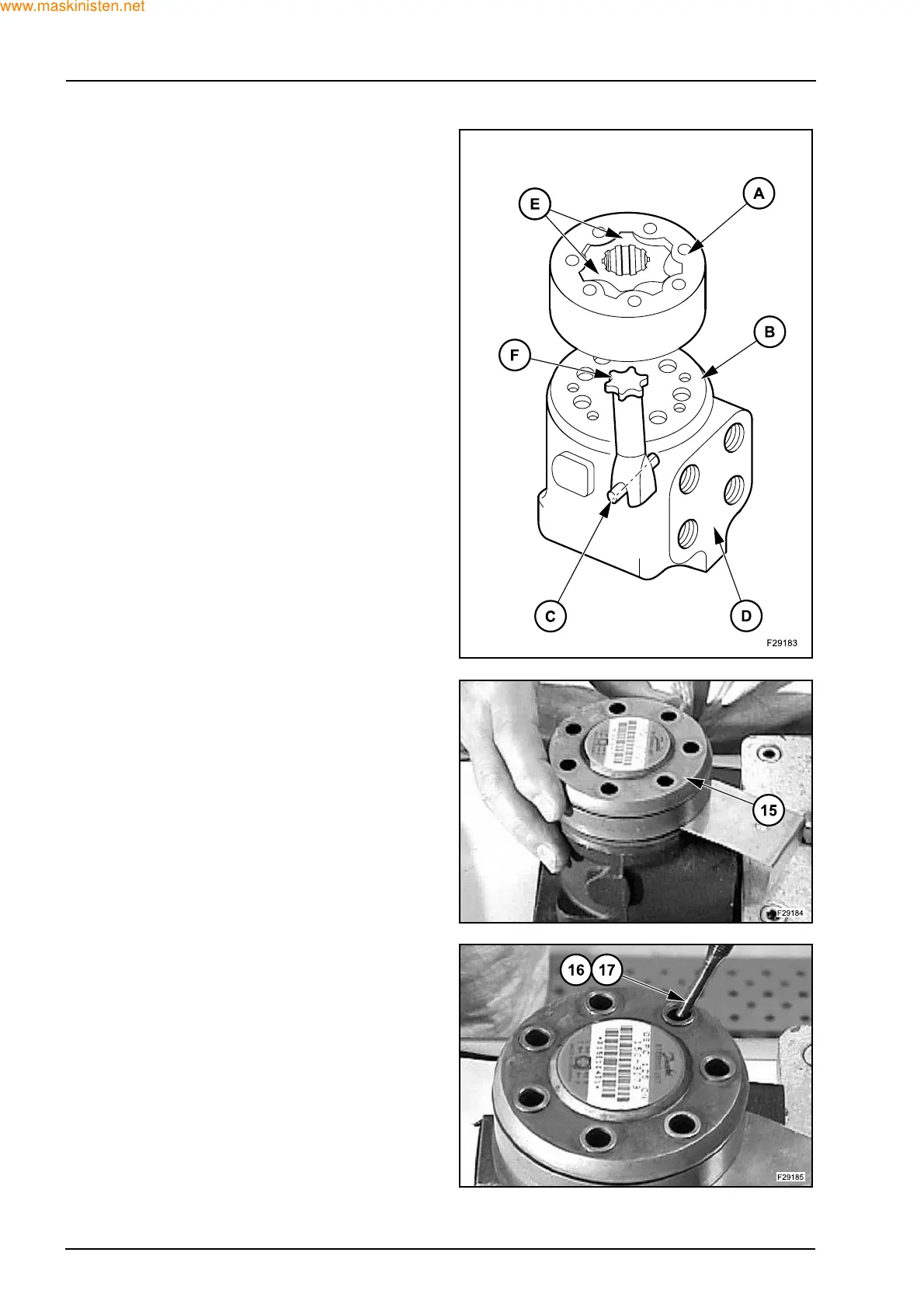

valve, pay attention to the parallelism of (A), (B), (C)
and (D) reference marks.
A. Rotor/stator surface
B. Distributor plate surface
C. Pin axis
D. Housing surface
E. Rotor gear
F. Cardan shaft
Position the end cover (15).
Assemble the special screw (17) with the washer
(16).
