SECTION 41 - STEERING SYSTEM 31

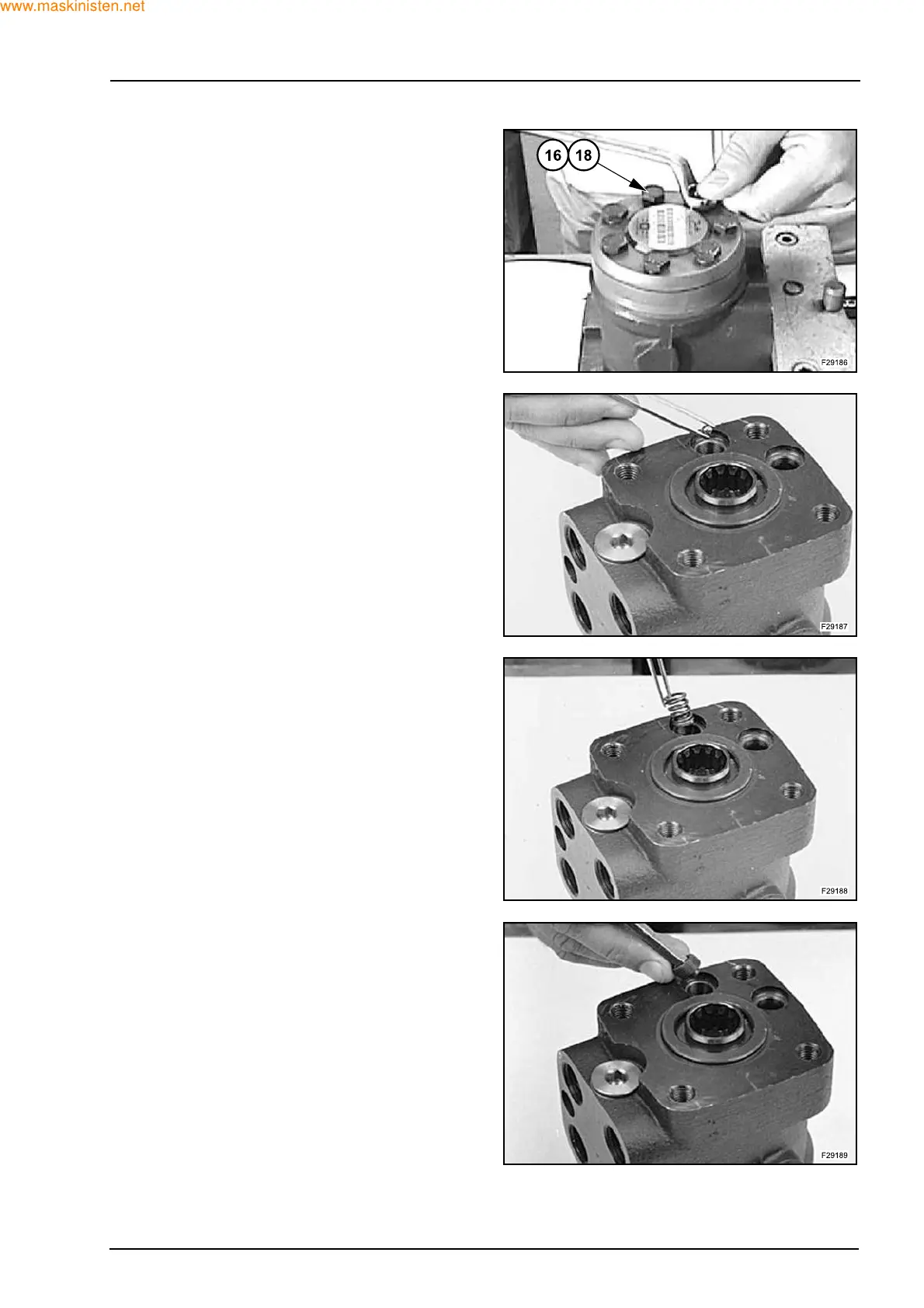

Fit the 6 screws (18) with the relevant washers (16).
Cross-tighten all the screws and the roller pin to a
torque of 30 ± 6 Nm in the sequence shown. The in-
itial torque is 10.8 Nm.
Put a ball in the two holes.
Place springs and valve cones over the two balls.
Screw in the two setting screws.
