SECTION 50 - CAB HEATING AND AIR CONDITIONING 51
CONDENSER

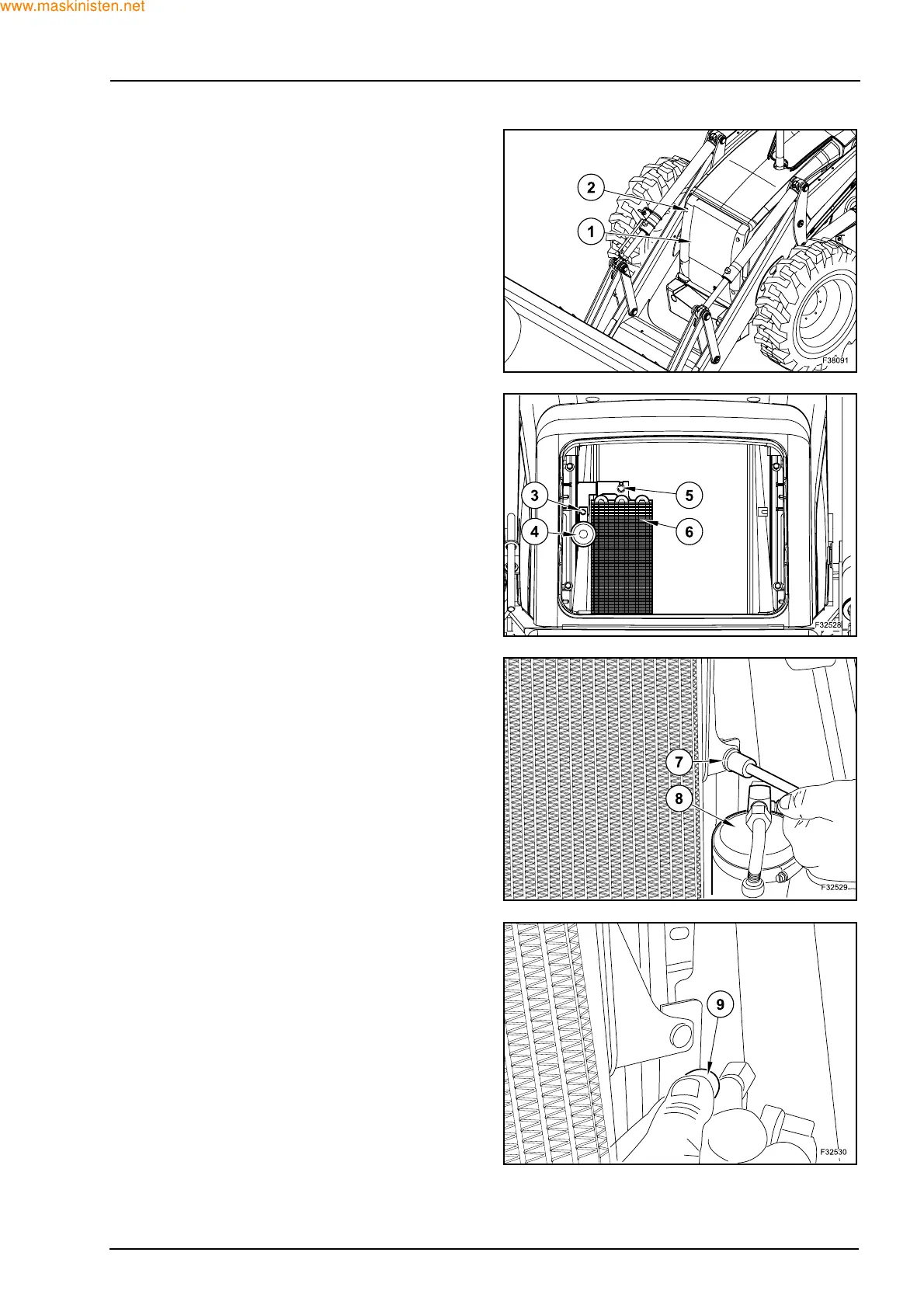

1. Unscrew and remove the fastening screws (2).
Remove the front grill (1).
2. Unscrew and remove the nut (3). Remove the
horn (4). Unscrew and remove the nut (5). Re-
move the fuel cooler (6).
3. Unscrew and remove the fixing upper nut (7) and
loosen the fixing lower nut. Move the dryer filter
(8) to the right side.
4. Unscrew and remove the nuts (9).
