52 SECTION 50 - CAB HEATING AND AIR CONDITIONING

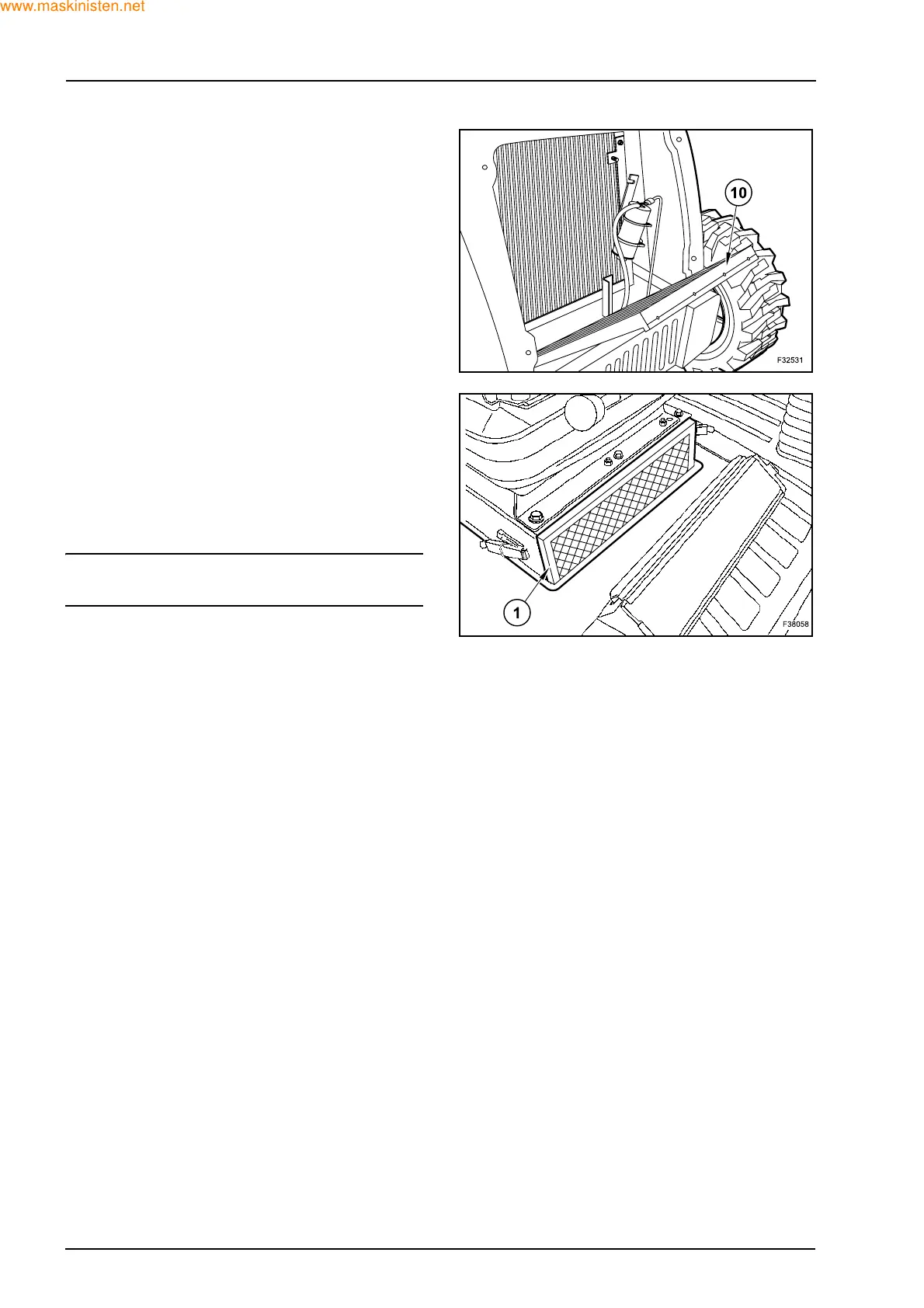

5. Move the condenser (10) forward.
Clean the condenser (10) by compressor air.
CAB AIR FILTER
1. Before servicing the filter (1), switch off the blow-
er and close all windows and one door. Slam the
final door closed and the resulting back pressure
will dislodge most of the loose dirt from the un-
derside of the filter.
2. Remove the filter and clean it by blowing with
compressed air not exceeding 2 bar.
IMPORTANT: make sure you protect your face be-
fore using compressed air.
Blow the dust from the upper surface through the
element to the underside. Hold the nozzle at
least 300 mm from the element to prevent dam-
age to the paper pleats.
3. Clean both filter chambers with a damp, lint free
cloth.
4. Replace the filter element with the rubber seal
uppermost and re-install the covers.
