Case 580SR+ - Page 845

SECTION 55 - ELECTRICAL SYSTEM 17

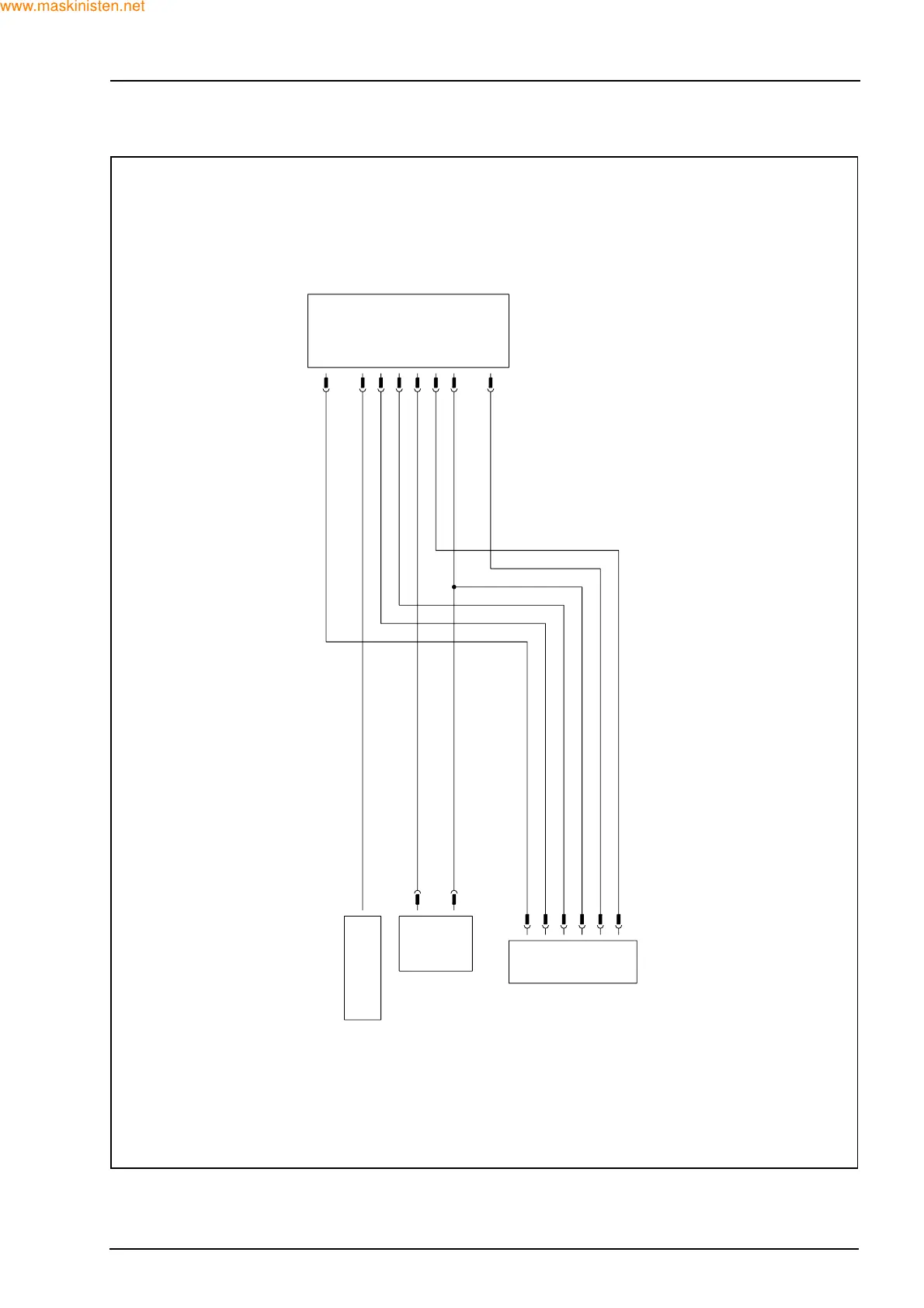

COLD START DIAGRAM
F27176
X82
10
L-N1 V-B1
X2
5
N1
B-N1
X2
3
X2
4
S1 M1
X2
1
X2
2
TO ENGINE LINE
X2
6
X82
8
X82
6
X82
7
X82
4
X82
3
X82
5
CONTROLLER
X82
1
N1
X83
2
G1
X83
1
RELAY
R1
GRID HEATER
