18 SECTION 55 - ELECTRICAL SYSTEM

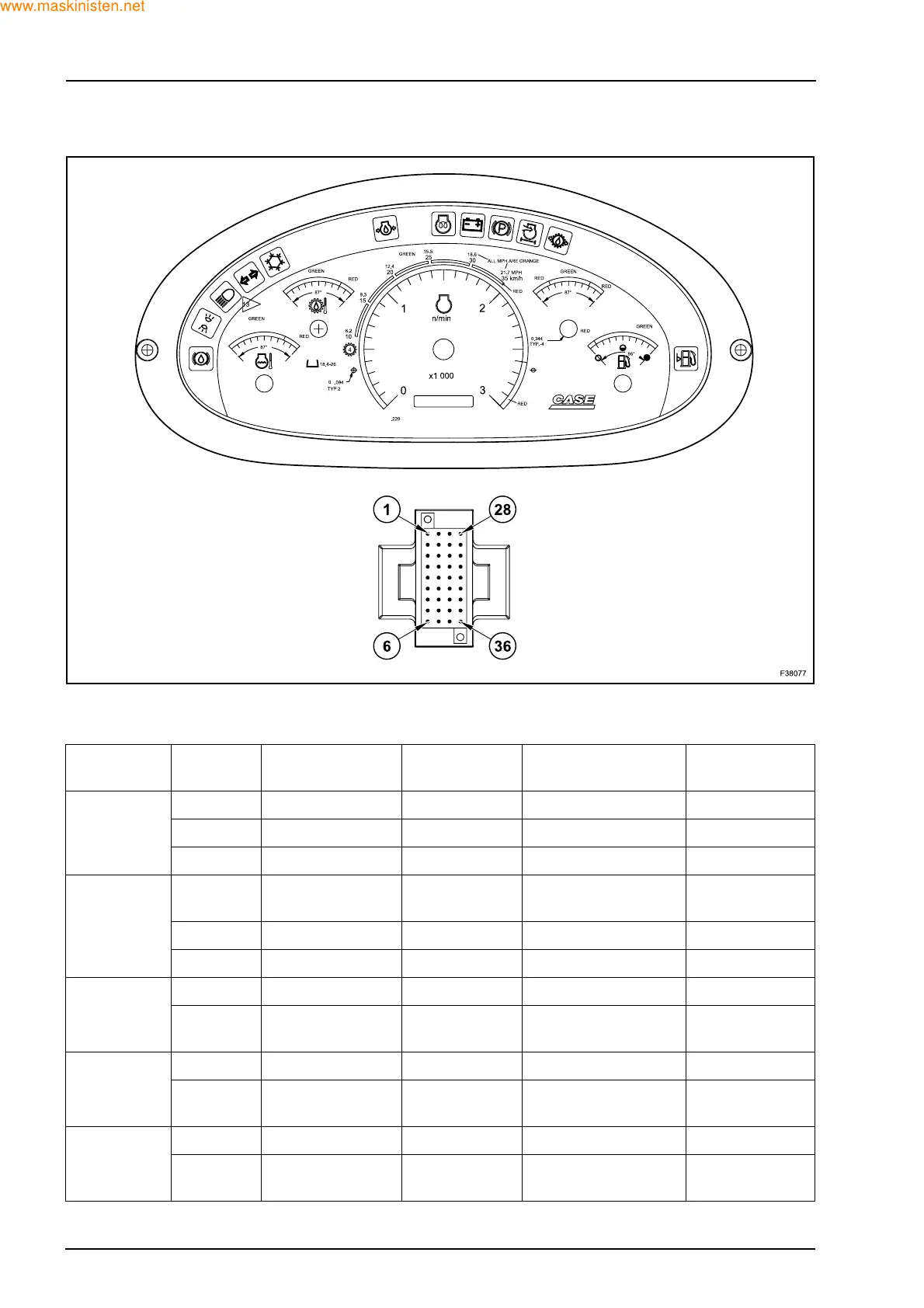

SIDE INSTRUMENT CLUSTER
Calibrations
Gage type Input Reading Pointer
tolerance
Input tolerance Calibration
direction
Speedometer
0 HZ 0 rpm ±3° N/A Descending
307 HZ 1000 rpm N/A ± 60 rpm Ascending
736 HZ 2400 rpm N/A ± 60 rpm Ascending
Level fuel
240 OHMS Empty +0/-6° 230-240 OHMS
(REF)
Descending
102 OHMS 1/2 Tank ±3° (REF) 98-108 OHMS Descending
33 OHMS Full +4/-2° 33-42 OHMS Ascending
Transmission
temperature
900 OHMS Point B +0/-6° N/A Descending
114 OHMS 106 °C (Red/green
line)
±5° 111-117 OHMS (REF) Ascending
Coolant
temperature
700 OHMS Point A +0/-5° N/A Descending
95 HMS 106 °C (Red/green
line)
±3° 93-97 OHMS (REF) Ascending
VOLT
11V Red/green left line ±3° 10.7-11.3 V (REF) Descending
15.9V Red/green right
line
±5° 15.0-15.6 V (REF) Ascending
