30 SECTION 21 - TRANSMISSION

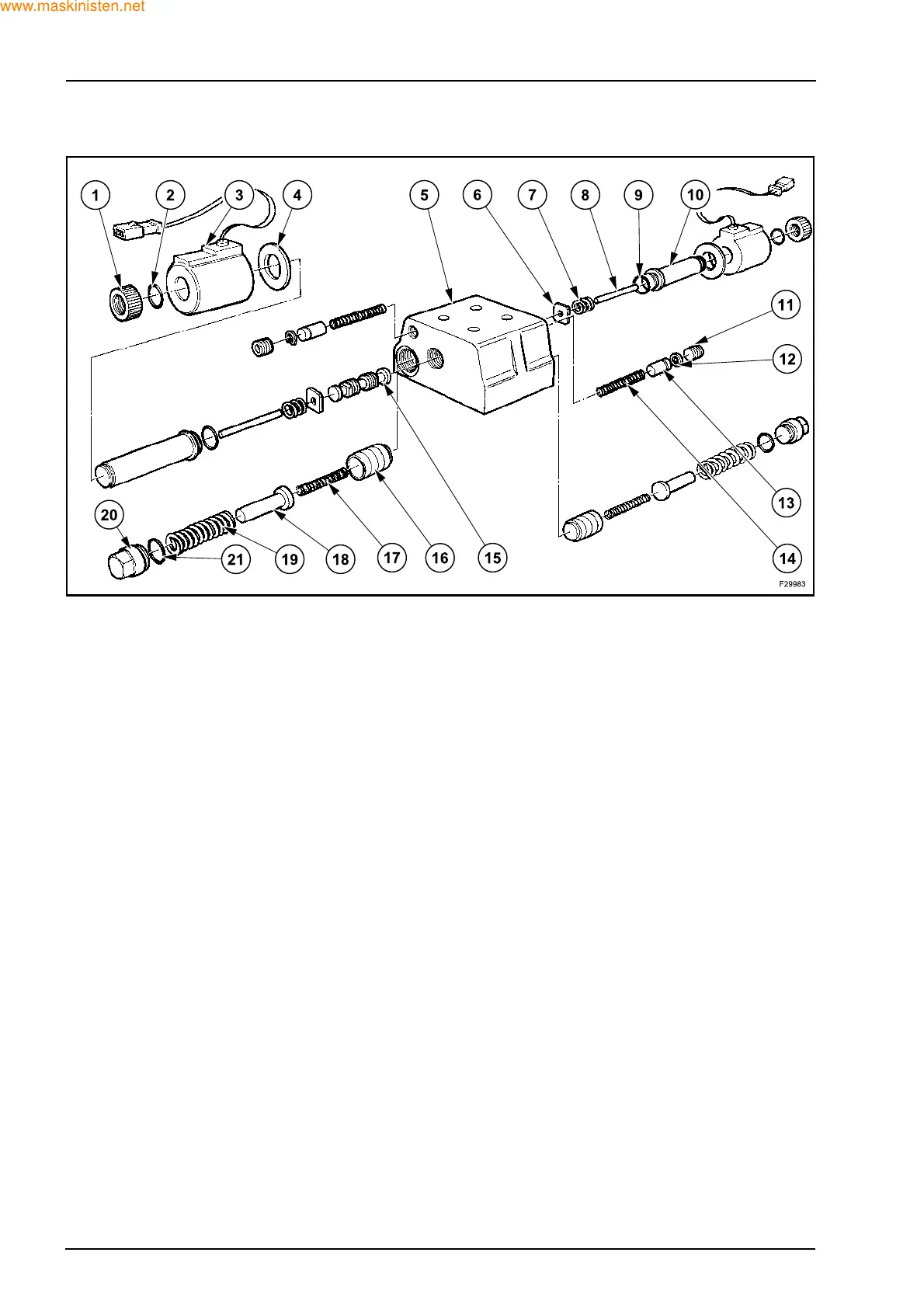

SOLENOID VALVE COMPONENTS
1. Solenoid retainer
2. Dust seal
3. Solenoid
4. Washer
5. Solenoid body
6. Guide
7. Spring
8. Solenoid pin
9. Seal
10. Support body solenoid
11. End cap
12. Circlip
13. Clutch fill metering valve
14. Spring
15. Spool
16. Piston clutch fill
17. Spring
18. Retainer
19. Spring
20. Seal
21. Plug
