SECTION 21 - TRANSMISSION 31

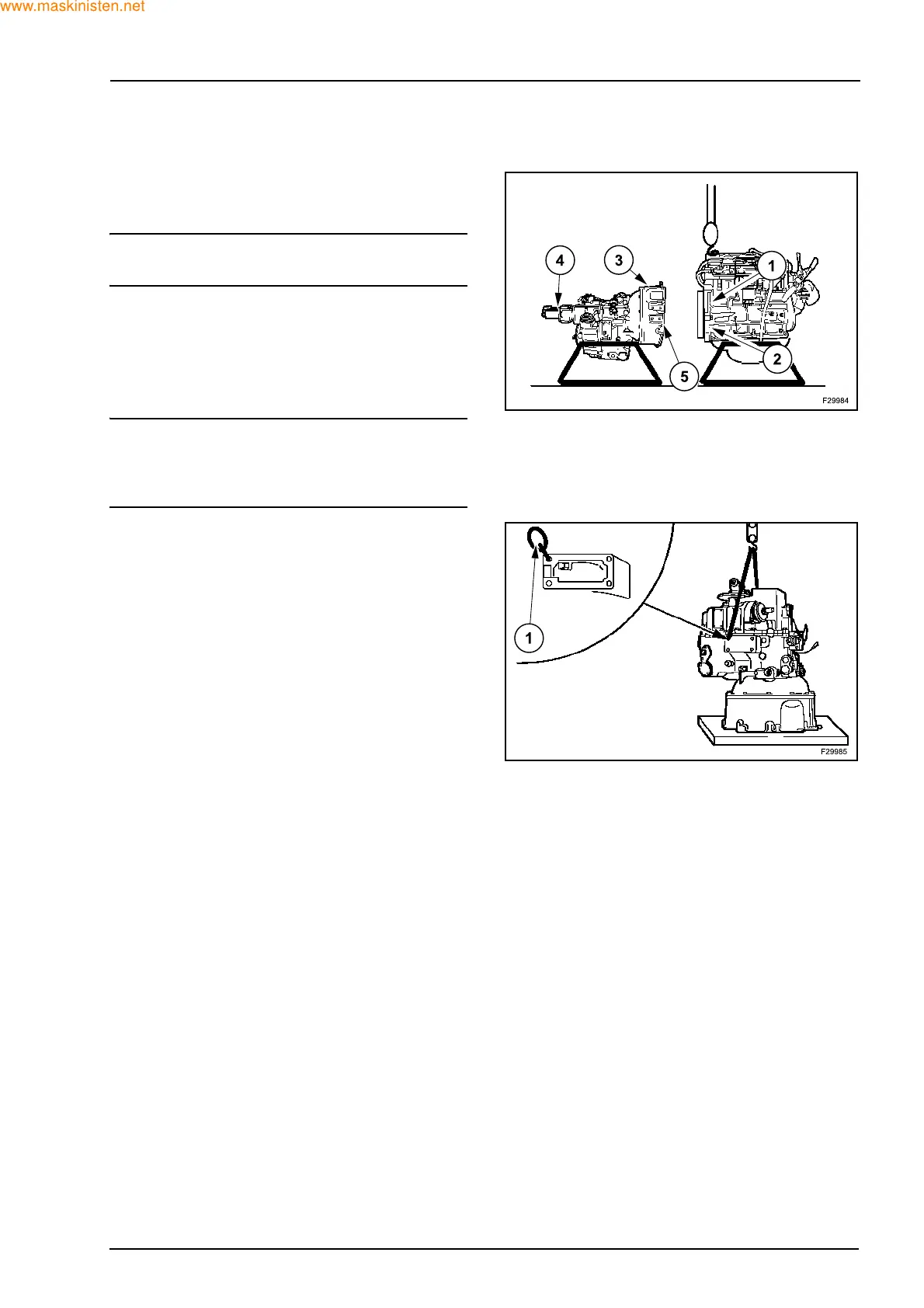

1.10 TRANSMISSION REMOVAL
Remove the transmission and engine as a complete
unit from the vehicle and place on a suitable stand for
disassembly.
NOTE: prior to disassembly drain the oils into suita-
ble containers for disposal.
Prior to separating the transmission from the engine.
Remove the starter motor (1).
Engine timing tab (2).
Torque converter back plate attaching bolts through
the starter motor aperture (1).
Bell housing attachment bolts (3).
IMPORTANT: prior to positioning the transmission
vertically remove the vehicle system oil pump (4) and
torque converter unit (5) from the transmission bell
housing (3).
Using eye bolts (1), one on each side capable of lift-
ing a weight of 250 kg hoist the transmission vertical-
ly and place in a safe, clean and suitable workshop
environment.
