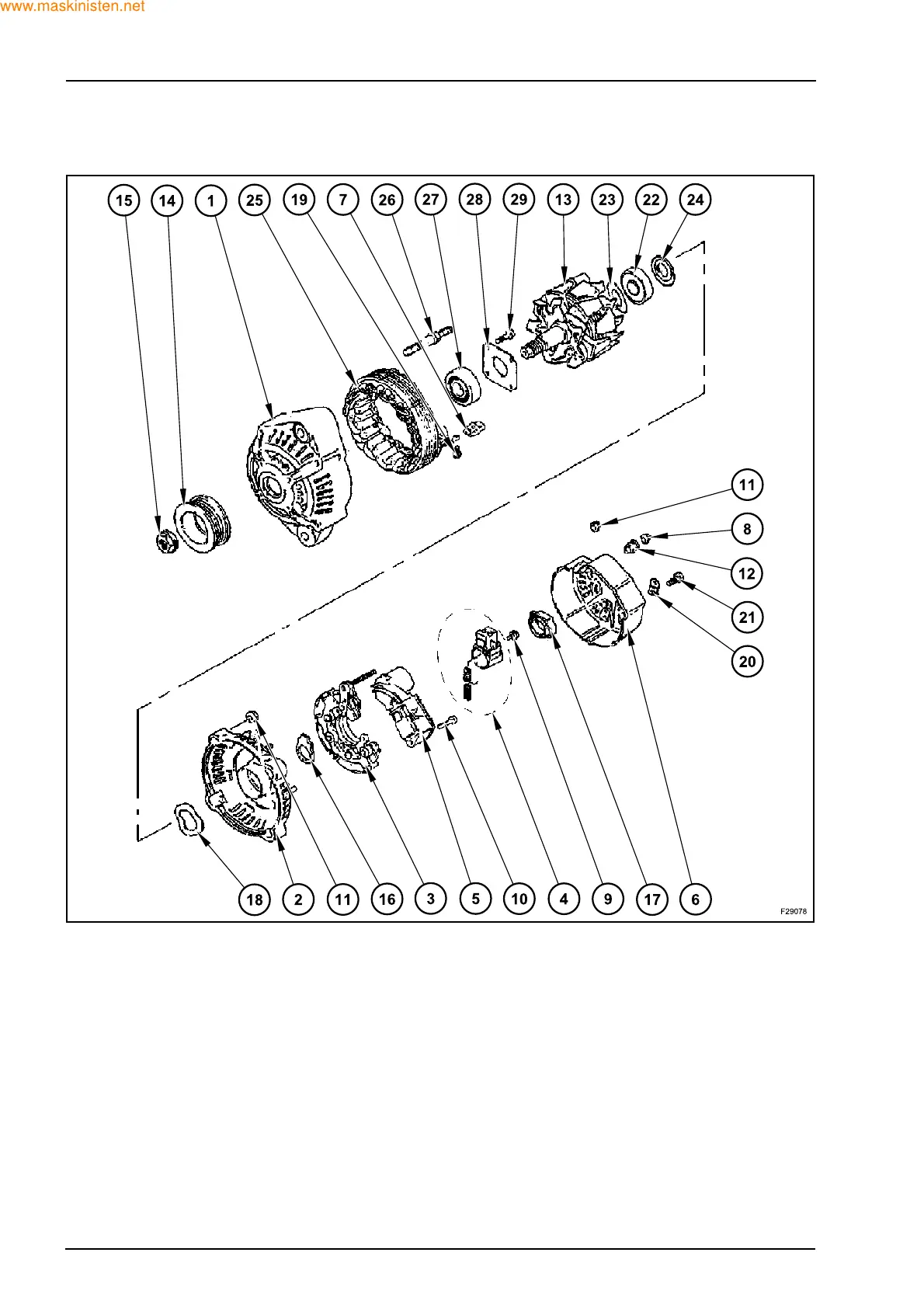

6.3 COMPONENTS
1. Front housing
2. Rear housing
3. Rectifier
4. Brush holder
5. Regulator
6. Rear protective
7. Insulation ring
8. Insulation ring
9. Screw
10. Screw
11. Nut
12. Nut
13. Rotor
14. Pulley
15. Pulley nut
16. Sealing ring
17. Sealing ring
18. Washer
19. Screw
20. Electrical terminal
21. Screw
22. Bearing
23. Flange
24. Flange
25. Stator
26. Stud screw
27. Bearing
28. Plate
29. Screw
