SECTION 55 - ELECTRICAL SYSTEM 167
8.2 COMPONENT TESTING
In general with the key start on there should be 12 V
found at the component connections.
Where 12 V is not present check fuses, relays and
wiring for breaks.

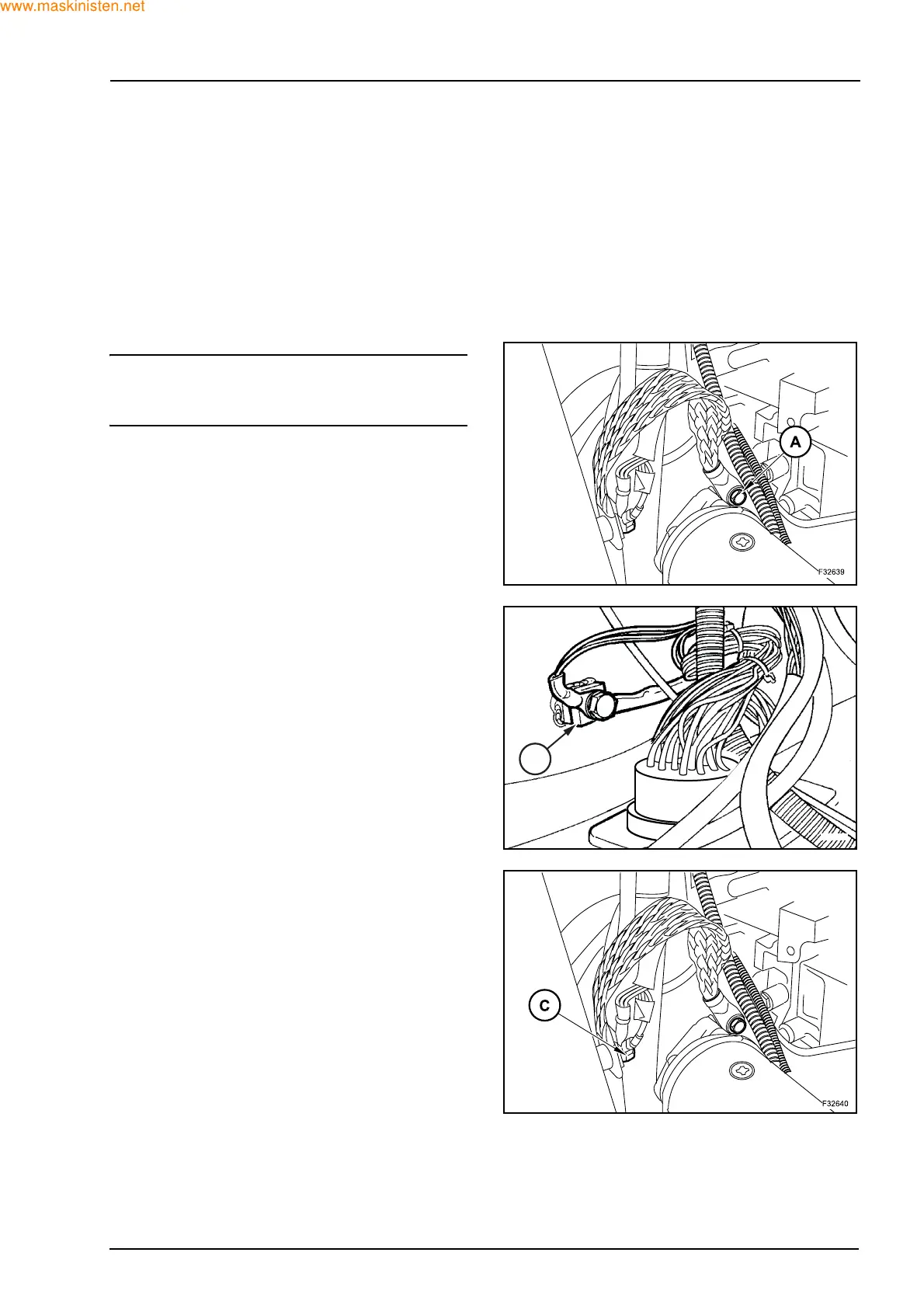

8.3 GROUND POINTS
NOTE: always ensure the ground points are clean
and functional. A poor ground will cause the electrics
to fail.
Ground point A - Starter motor (engine harness)
Ground point A is also linked to ground point B.
Ground point B - Right hand console (front con-
sole harness)
This is also linked to ground points A, C, and D.
Ground point C - Rear of chassis (Chassis har-
ness)
This is also linked to ground point E.
F32641
B
