168 SECTION 55 - ELECTRICAL SYSTEM

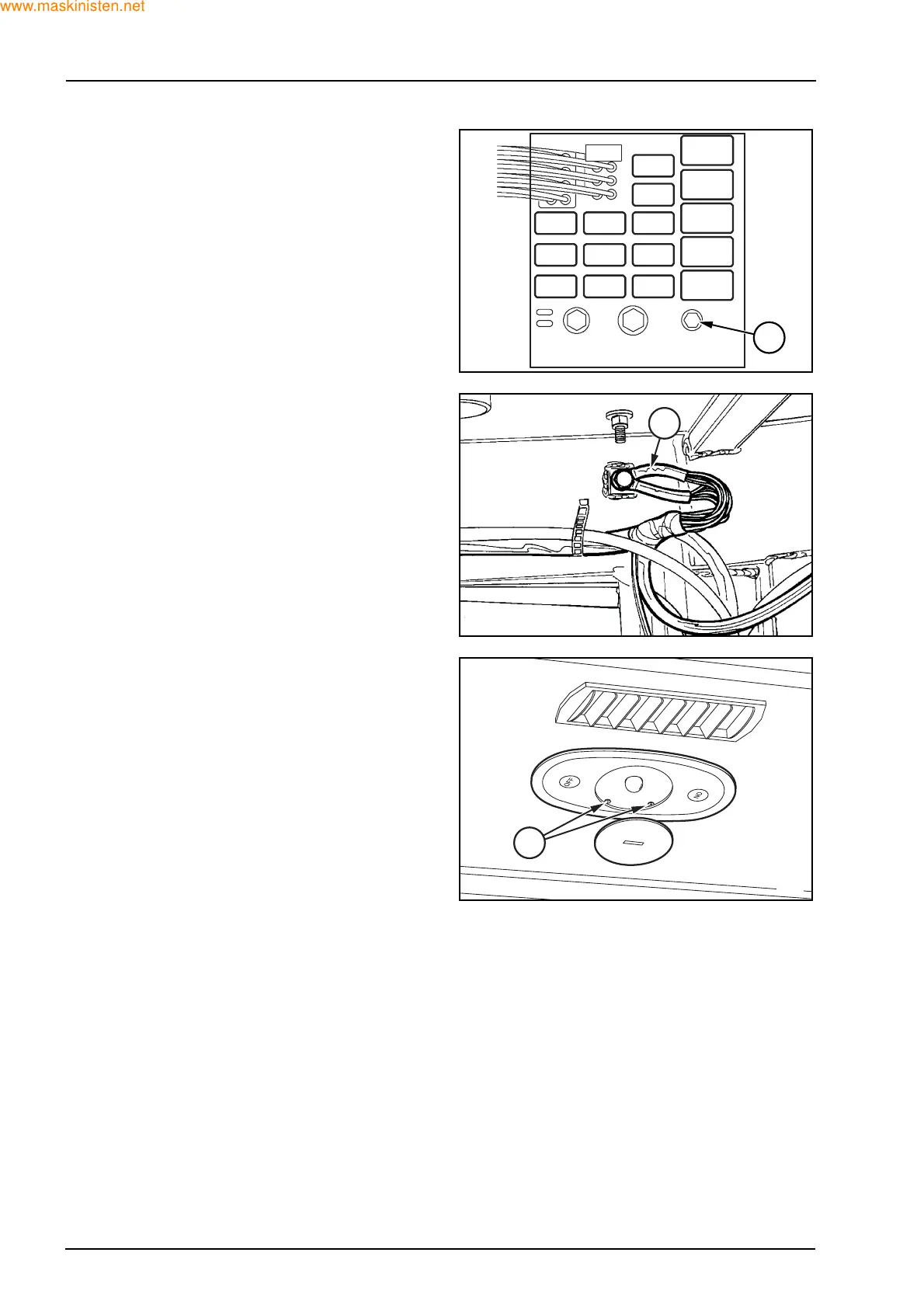

Ground point D - Fuse board
This is also a back-up ground point for Location E.
Ground point E - Top right hand B pillar (roof
harness)
Ground point F - Operator’seat light
F28379
F5/B
F5/A
F8/C
F8/B
F8/A
F7/C
F7/B
F7/A
F6/C
F6/B
F6/A
K8
K9
K7
K6
K5
15v
GND
30v
XC5
D
F28380
E
F28381
F
