8.4 STARTER SWITCH KEY AND STOP
SWITCH
NOTE: when the starter switch key/stop switch is
turned to ON, the audible alarm sounds until the en-
gine is started or the key is returned to the initial po-
sition.

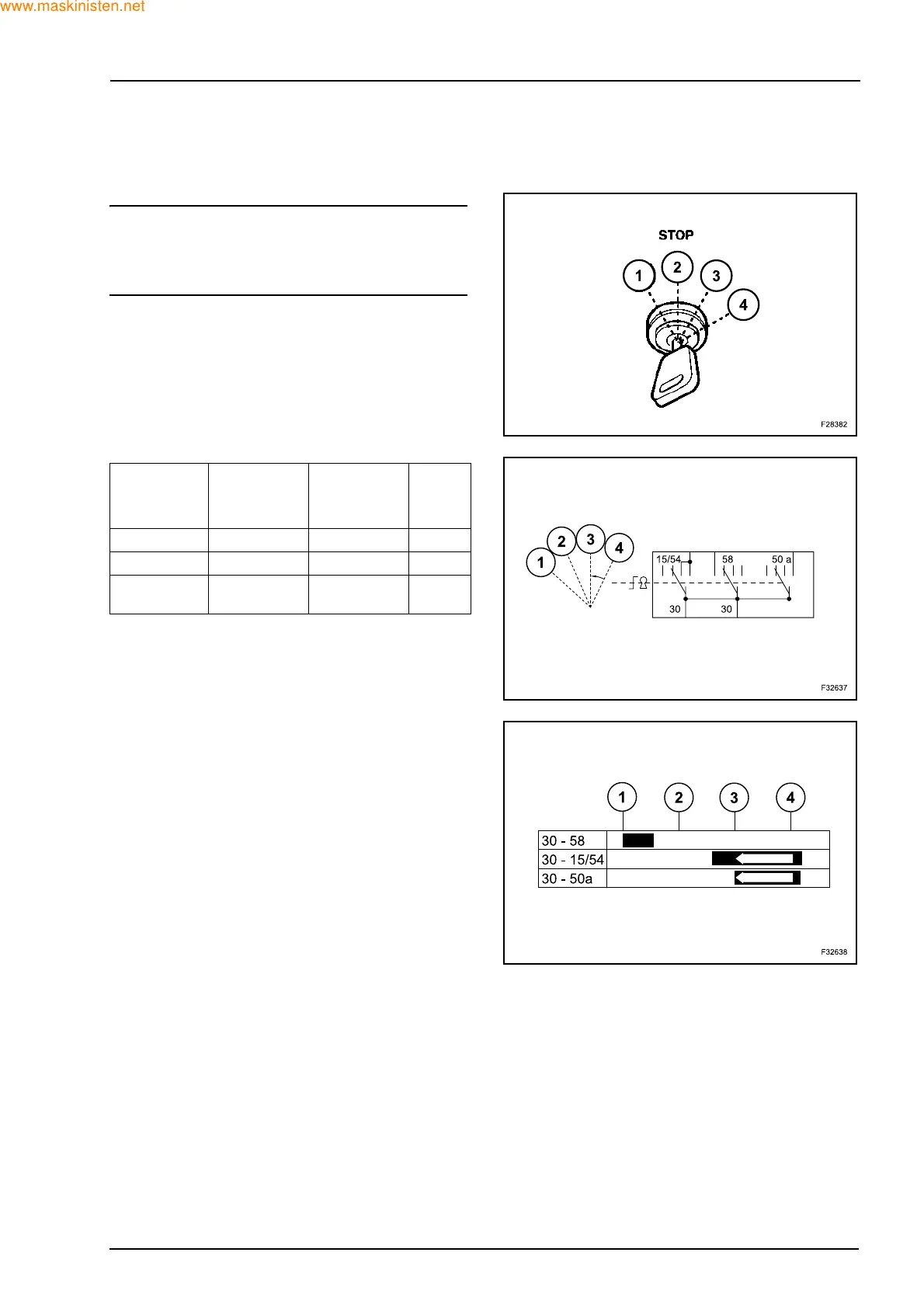

Starter switch key
1. Not used
2. Off
3. Ignition ON
4. Cranking
CONTACTS MAXIMUM
CURRENT
12 V
MAXIMUM
CURRENT
24 V
TIME
30-58 8 A 4 A •
30-15/54 35 A 17.5A •
30-50a
70 A
18 A
40 A
5 A
1 min
