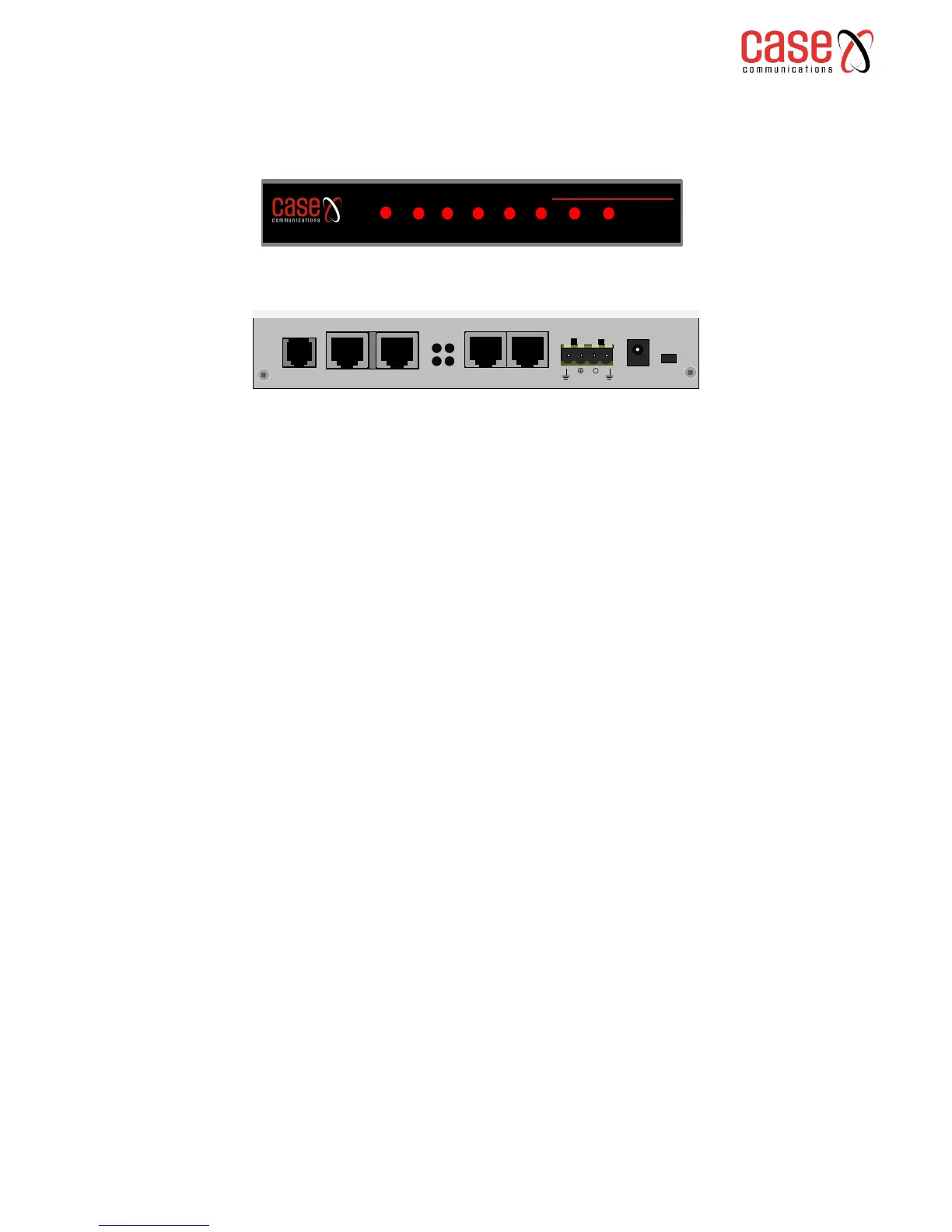

6401 Rugged ADSL Router
PWR Eth4 Eth3
Eth2
Eth1 NC ACT LINK
PWR Eth0 Eth1 Eth2 Eth3 NC ACT LINK
ETH4 PWR
12-72V
+
-
ETH3
ETH2
ETH1DSL
RESET
RS232
PWR
LINK
ALR ACT
ETH3 ETH2
ETH1 ETH0
Hardware Specifications
CPU BCM63281T
RAM 128Mbyte
NOR FLASH 8Mbyte
Power
AC PSU External in line 100-240vac
Power 20 Watts Max
DC PSU (Internal) 12 -72 vdc
Input / Output Ports
WAN ADSL 2 + Annex M (24Mbps)
Ethernet 4 x 10/100Mbps Rj 45
ADSL Features
Full-Rate ANSI T1.413 Issue 2
ITU-T G.992.1 (G.dmt) ITU-T G.992.2 (G.lite)
ITU-T G.994.1 (G.hs) ITU-T G.992.3
(G.dmt.bis)
ITU-T G.992.5 Supports Annex A/L/M
Max 6 kilometres
Environment
Operating Temp -20 to +70 C
Storage Temp -40 to +85 C
Humidity 10 to 90% RH
MTBF – (Calculated)
Main unit 800,000 Hrs
Housing
Die cast aluminium 105mm x 180mm x 31mm
Watchdog Timer – Hardware and Software
System Log Security Log
Auto-Configuration
TR 069 Client (auto-configuration)
Software Specifications
WAN Services
 EoA (VC Mux / LLC SNAP bridging)
 PPPoA (VC Mux / LLC Encapsulation)
 IPoA (VC Mux / LLC Snap-Routing)
 PPPoE (Bridging)
Routing
 IPv4 & IPv6
 Static Routes
 RIP I and II
 Policy based routing
Tunnelling and security
 IP Sec VPN encrypted tunnels (3DES, 256 AES)
 L2TP v3
 Encryption 3DES, AES 256
 Authentication X509 or pre shared
Access Security
 Firewall
 NAT & Full Cone NAT
 Virtual Server (Protocol and external port no.)
 Port Triggering
 Forwarding to DMZ host
 IP and MAC Filtering mechanisms
 MAC Filtering (bridging mode)
 Access restriction by
- User name
- MAC Address
- Date / Time
- URL Filter
Quality of service and performance
 DSCP
 Queue set up ATM 16 modes, PTM 8 modes
 4 Queues for Ethernet ports
 32 classes of traffic
 IGMP Support
Management
 Web based
 SNMP
