OPERATION & MAINTENANCE MANUAL STE35SR

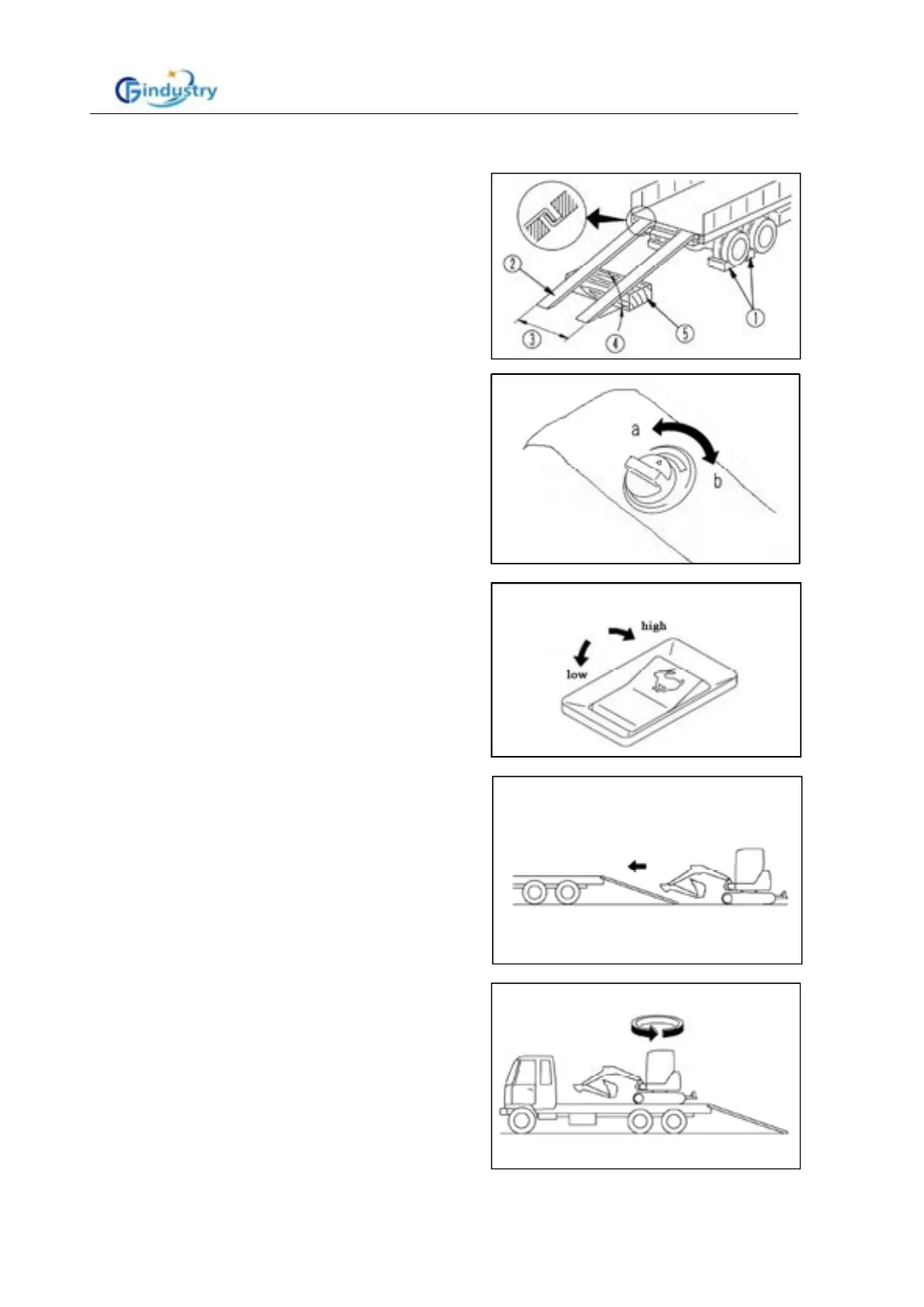

When loading or unloading, always use ramps or a platform. Proceed as follows.
Loading
1. Load and unload on firm level ground only,
maintain a safe distance from the edge of a road.
2. Apply the trailer brakes securely, then put blocks
① under the tires to prevent the trailer from
moving. Set left and right ramps②parallel to
each other and equally spaced to the left and
right of center ③ of the trailer. Make angle of
installation ④ a maximum of 15°.
3. Operate the fuel control dial to position (A) to set
the engine speed to low idling.
4. Turn the travel speed selector switch to low
speed travel.
5. If the machine is equipped with work equipment,
set the work equipment at the front and blade at
the behind. Make sure that rise to the blade and
the machine is positioned in a straight line with
the ramps and that the centerline of the machine
matches that of the trailer.
6. Before moving onto the ramps, make sure that
the machine is positioned in a straight line with
the ramps and that the centerline of the machine
matches that of the trailer. Align the direction of
travel with the ramps and travel slowly. Lower
the work equipment as far as possible without
causing interference.
7. When on the ramps, operate only the travel lever.
Do not operate any other lever. Drive the
machine forward to the specified position, then
stop the machine. Then swing the upper
structure slowly 180°.
8. Stop the machine at the specified position on the
trailer.
To Next Page
