OPERATION & MAINTENANCE MANUAL STE35SR
Bucket Replacement and Inversion
When pins are knocked in with a hammer, pieces of metal may fly and cause serious injury.
When carrying out this operation, always wear goggles, hard hat, gloves, and other protective
equipment.
When the bucket is removed, place it in a stable condition.
If pins are hit with a strong force, there is a hazard that the pin may fly out and injure people in
the surrounding area. Make sure that there is no one in the surrounding area before starting
the operation.
When removing the pins, do not stand behind the bucket. In addition, be extremely careful not
to put your foot under the bucket while standing at the side for the work.
When removing or inserting pins, be extremely careful not to get your fingers caught.
Never insert your fingers into the pin holes when aligning the holes.
IMPORTANT
After removing the pins, make sure that mud or sand does not get on them. Dust seals are fitted at
both ends of the bushings, be careful not to damage them.
Stop the machine on a firm and flat surface and do the work. When performing joint work, appoint
a lead and follow that person's instructions and signals.

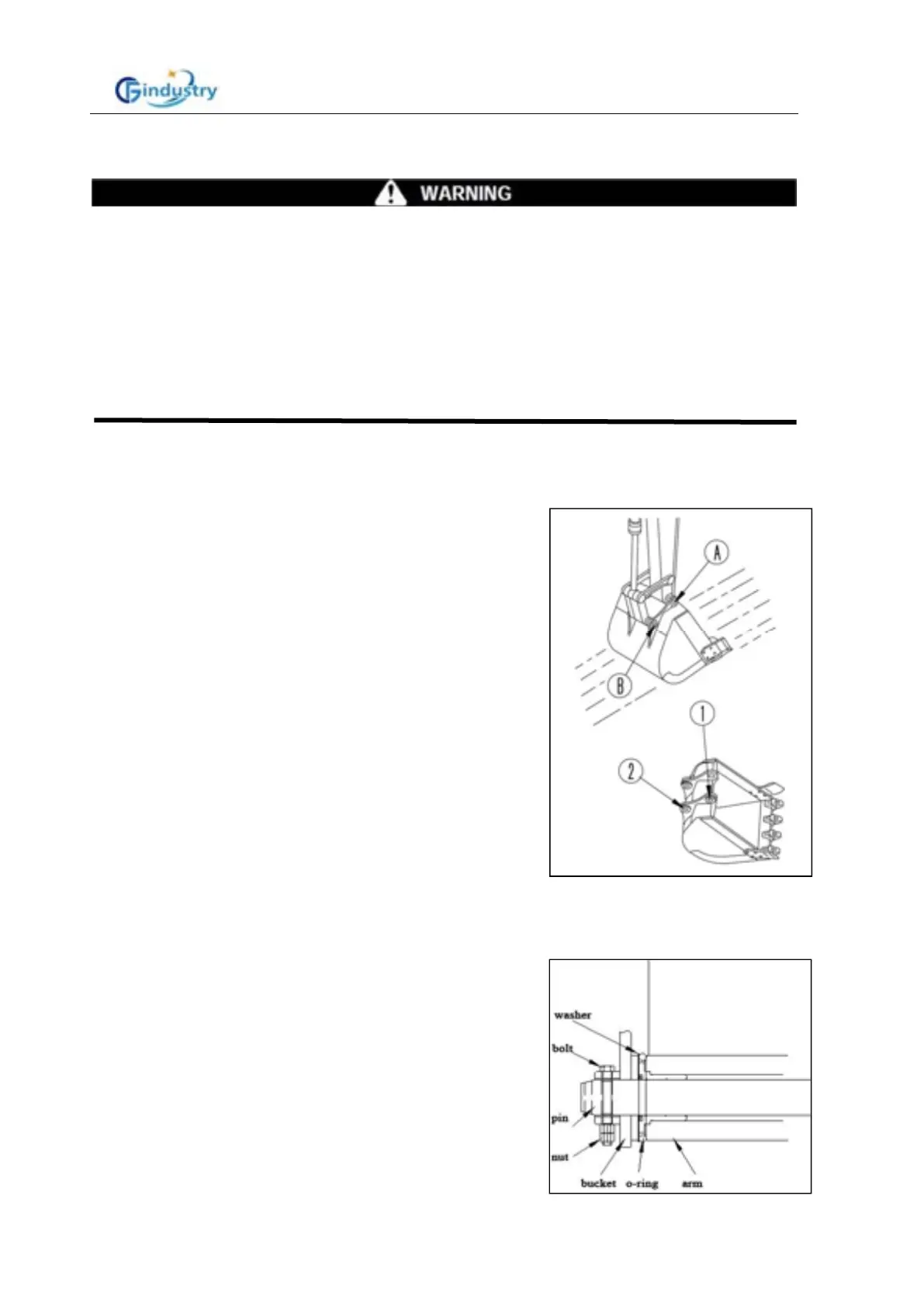

1. Place the bucket in contact with a flat surface. Remove
the nut and bolt on
○
A
○
B ,pull out pin
○
A
○
B .
REMARK
When removing the pins, place the bucket so that it is in
light contact with the ground. If the bucket is lowered
strongly to the ground, the resistance will be increased
and it will be difficult to remove the pins.
After removing the pins, make sure that mud or sand
does not get on them.
2. Align the arm with holes
○
1 of the new bucket and the
link with holes
○
2 , install washer O-ring then insert
rease-coated pins
○
A and
○
B into hole
○
1 and hole
○
2 respectively.
REMARK
When installing bucket. the O-ring is damaged easily, so
installing the O-ring on the bulge tower of the bucket as
shown.
When beating pins, move the O-ring down to the
standard groove.
3. Install the bolts and nuts for each pin, then grease the
pin
○
A
○
B through fitting grease.
