OPERATION & MAINTENANCE MANUAL STE35SR

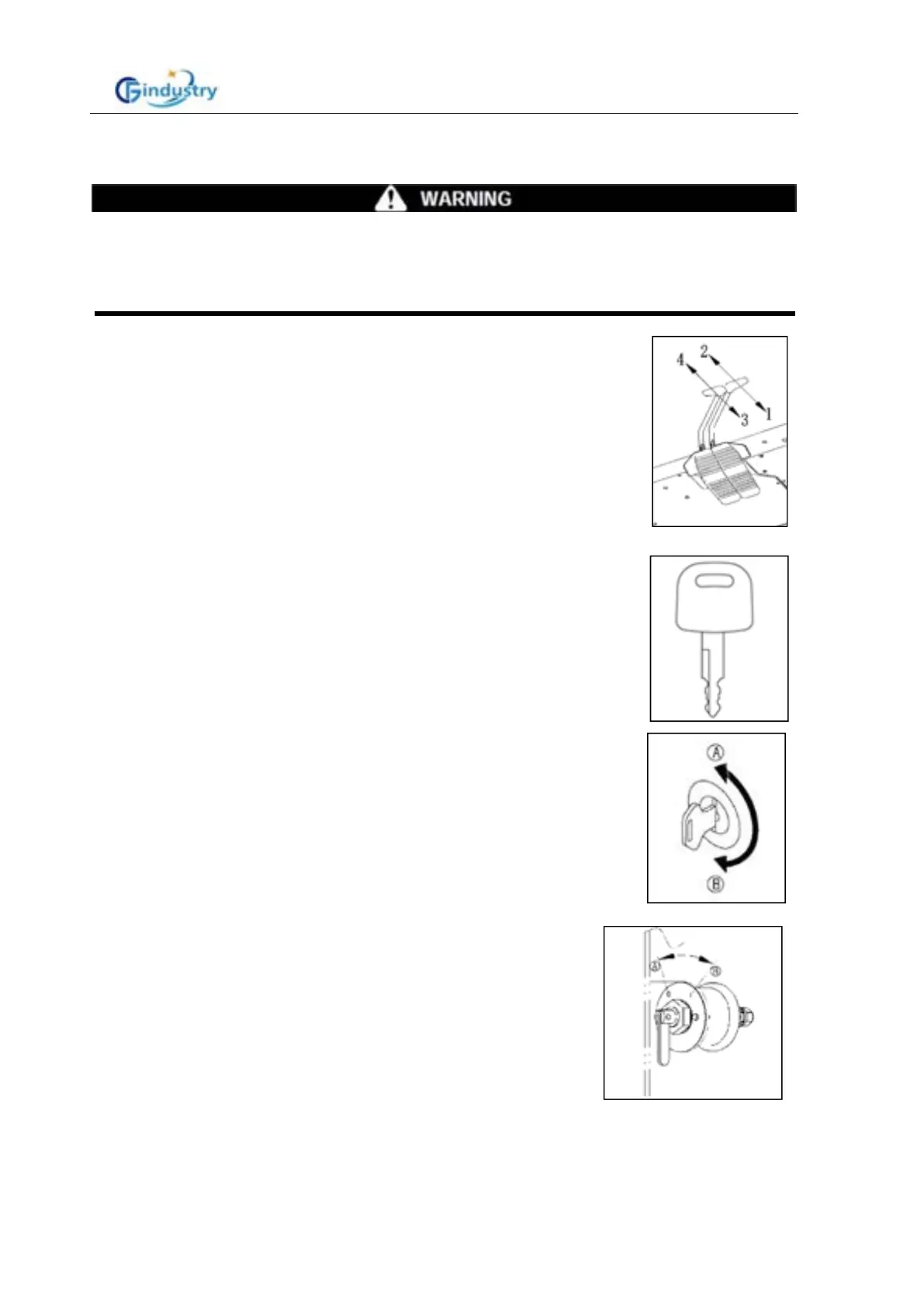

6. Travel levers
Do not rest your foot on the pedal during operations.
When operating the walking handle/pedal (Optional), determine the walking direction of the
crawler.
The following description is for when the driving wheel is at the rear and the driving wheel is at
the front, the walking operation sequence is reversed.
This lever is used to change the direction of travel between forward and
reverse.
Operating 1,3 simultaneously: retrogression.
Operating 2,4 simultaneously: forward.
Separate operation 4 or1: turn right
Separate operation 2or3: turn left
Operating1 or 4 simultaneously: turn right around
Operating2 or 3 simultaneously: turn left around
When the lever return to the middle position, the machine stops.
Equipment Lock
The engine cover is equipped with the lock. A key is required to open and
lock these locks.
NOTICE
Insert the key the end, then turn the key clockwise. If the key is turned
before it is inserted all the way, it may break.
Engine hood lock
There are three positions of the lock here. When the key is turned or
released later, the key will automatically spring back to the middle position
following the lock cylinder.
○
B Opening the Lock
Insert the key into the key slot. Turn the key clockwise, then open the lock.
○
A Locking the Lock
Insert the key into the key slot. Turn the key anticlockwise, then lock it.
Battery Disconnect Switch
IMPORTANT
In addition to the following cases, this switch should be in the I
(electrify) position,
Long term storage machine (more than one month)
When repairing the electrical system
When welding
When handling the battery
If you switch to the O (OFF) position, all electrical systems are
