OPERATION & MAINTENANCE MANUAL STE35SR

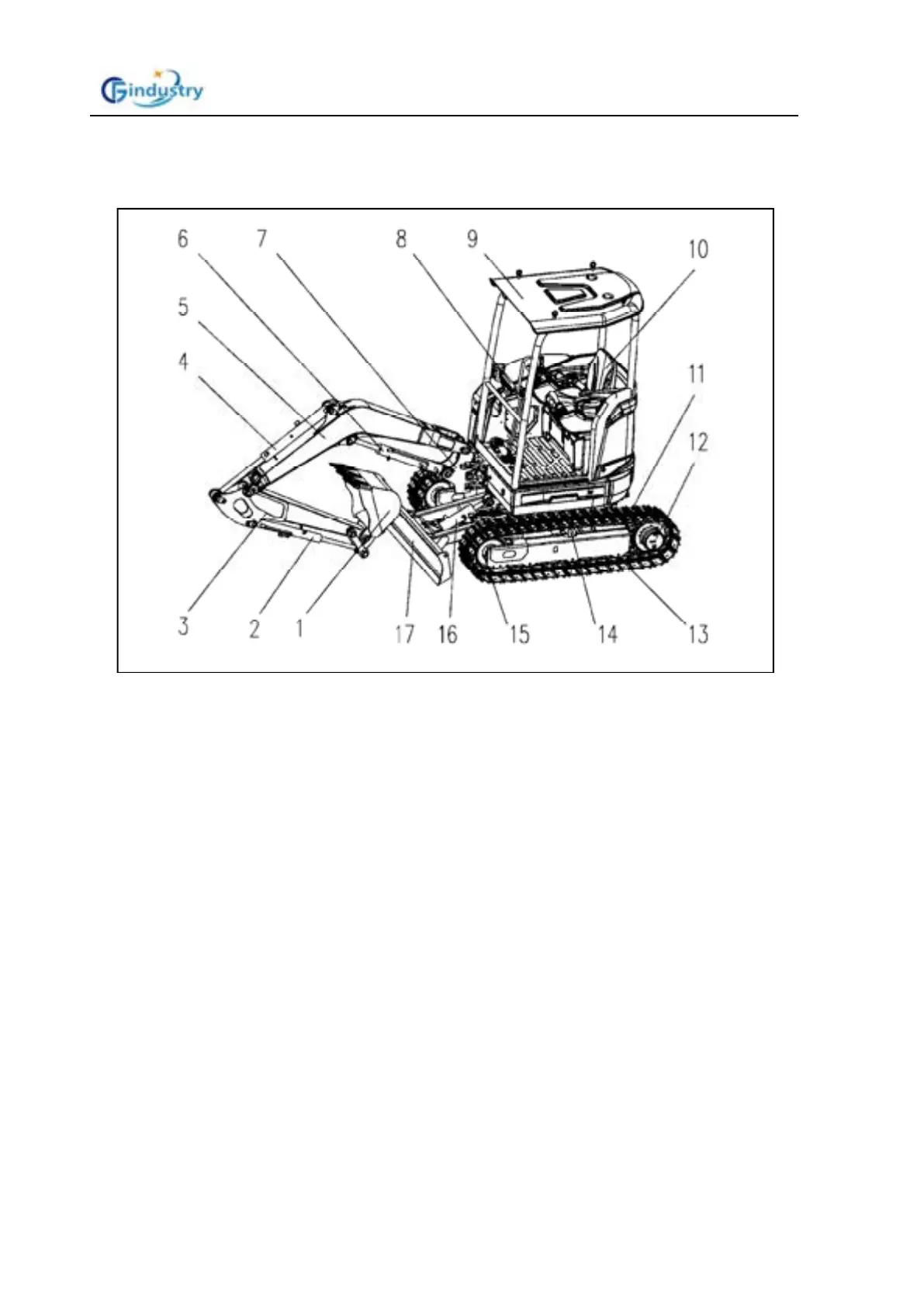

Equipment Outline
Introduction
1. Bucket
2. Bucket cylinder
3. Arm
4. Arm cylinder
5. Boom
6. Boom cylinder
7. Yaw frame
8. Display
9. Driver's shed
10. Seat
11. Track
12. Traveling motor and drive sprocket
13. Support wheels
14. Towing sprocket
15. Increase assembly
16. Bulldozer cylinder
17. Bulldozer
Specified Use
The machine is intended to be used under normal conditions for the applications described in this
manual. If it is used for other purposes or in potentially dangerous environments, for example
explosive atmosphere, flammable environment or areas with dust containing asbestos and so on,
special safety regulations must be followed and the machine is equipped for such use.
Contact CFG industrial ltd. or dealer for further information.
