OPERATION & MAINTENANCE MANUAL STE35SR
93

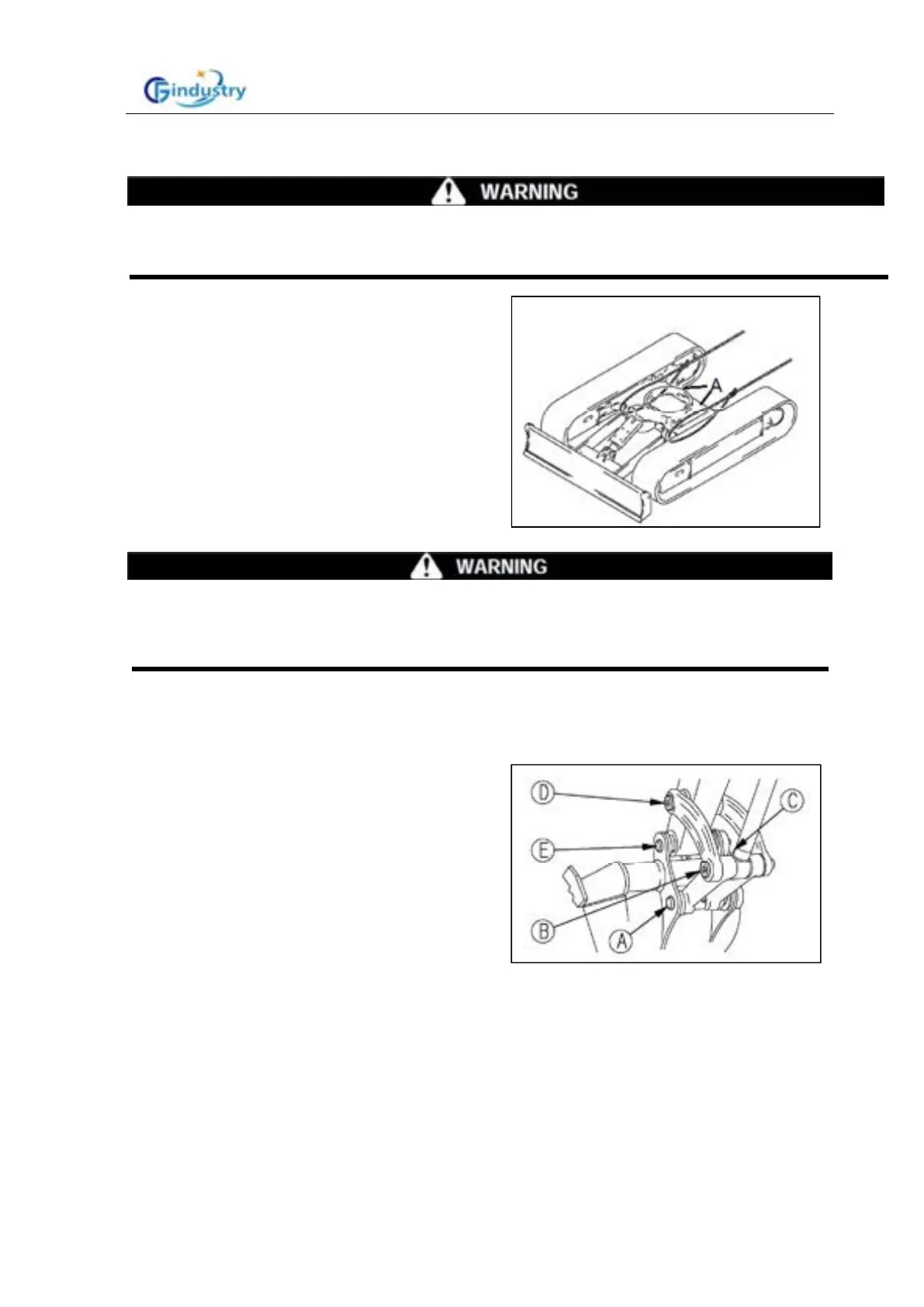

Towing the Machine
 Always check that the wire rope used for towing has ample strength for the weight of the
machine being towed.
 Operate the machine slowly and be careful not to apply any sudden load to the wire rope.
If the machine sinks in mud and cannot get out
under its own power, or if the drawbar pull of the
excavator is being used to tow a heavy object, use
a wire rope as shown in the diagram on the right.
Place pieces of wood between wire ropes and body
to prevent damage to ropes and body.
Hold the wire rope level and direct it straight to the
track frame.
Lightweight Towing Hole
 When use A hook rings (1), the traction load must be light, otherwise it is easy to damage the
crawler frame.
 Hold the wire rope level and direct it straight to the track frame.
 Move the machine slowly and be careful not to apply any sudden load to the wire rope.
There is one hole in the track frame to fit the shackle when towing light objects.
Severe Job Condition
 When carrying out digging operations in water,
if the work equipment mounting pin goes into
the water, carry out greasing at the position
○
A 、
○
B 、
○
C 、
○
D and
○
Eevery time the
operation is carried out.
 For heavy-duty operations and deep digging,
carry out greasing of the work equipment
mounting pins
○
A 、
○
B 、
○
C 、
○
D and
○
E
every time before operation.
After greasing, operate the boom, arm and bucket several times, then grease again.
