OPERATION & MAINTENANCE MANUAL STE35SR
Crawler tension- inspect/adjustment Machine with metal treads
Wear of the pins and bushings of the lower body varies with operating conditions and soil types.
Therefore, in order to maintain the standard tension, to each250Check the tension of the track for
hours.
For inspection and maintenance, park the machine in a firm, flat place.
CHECK
1. Run the engine at low idle speed and slowly move the machine forward for a distance
equivalent to the length of contact between the track and the ground, then stop the machine.
2. Check whether the track board is broken or damaged.

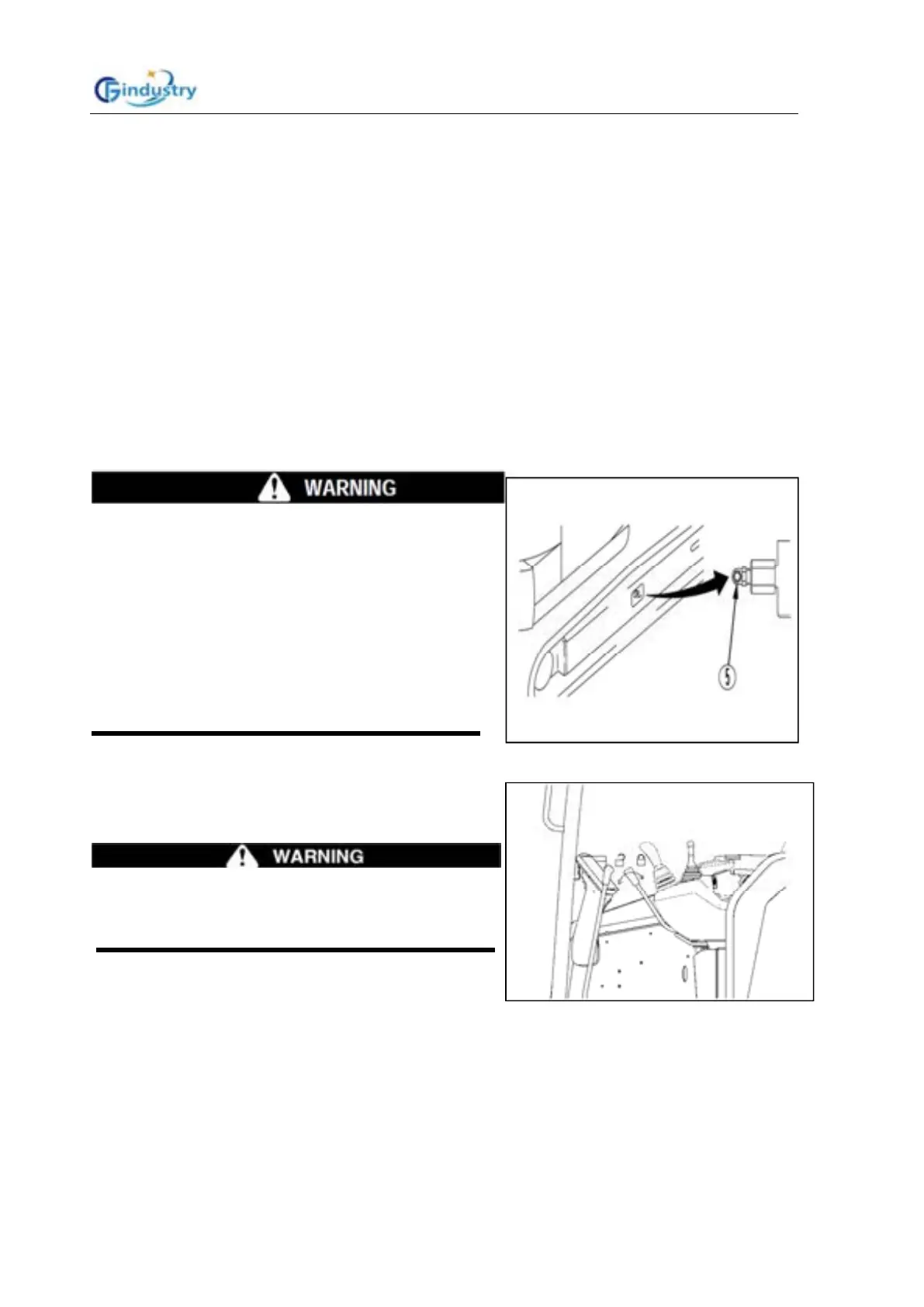

Track Tension-Adjustment
Be sure to loosen the plug.1More than one lap.
If the screw plug1Loosened more than a circle, under
the high pressure of grease, there is a risk of flying out.
At this point, do not loosen the screw removal plug1Do
not face the plug for any part other than the plug1The
installation direction of the.
If the method provided here does not loosen the track
tension, contact the dealer and commission the repair.
Replace Bucket Teeth
Replace the teeth before the wear reaches the adapter.
It is dangerous if the work equipment is mistakenly
moved when replacing the teeth. Set the work
equipment in a stable condition, stop the engine,
then set lock lever securely to the LOCK position.
Working Device Grease - filling
Notice
The grease filling point of the working device lubricates every 8 hours (every day).
If there is abnormal noise in the parts that need lubrication, the lubrication should be carried out
regardless of whether there is time for maintenance.
When excavating in water (on civil land, etc.), lubricate the pin shaft immersed in water.
1. Lubricate according to the lubrication position in the right picture. Lower the actuator to the
ground and shut off the engine.
