OPERATION & MAINTENANCE MANUAL STE35SR

108

Correct Selection

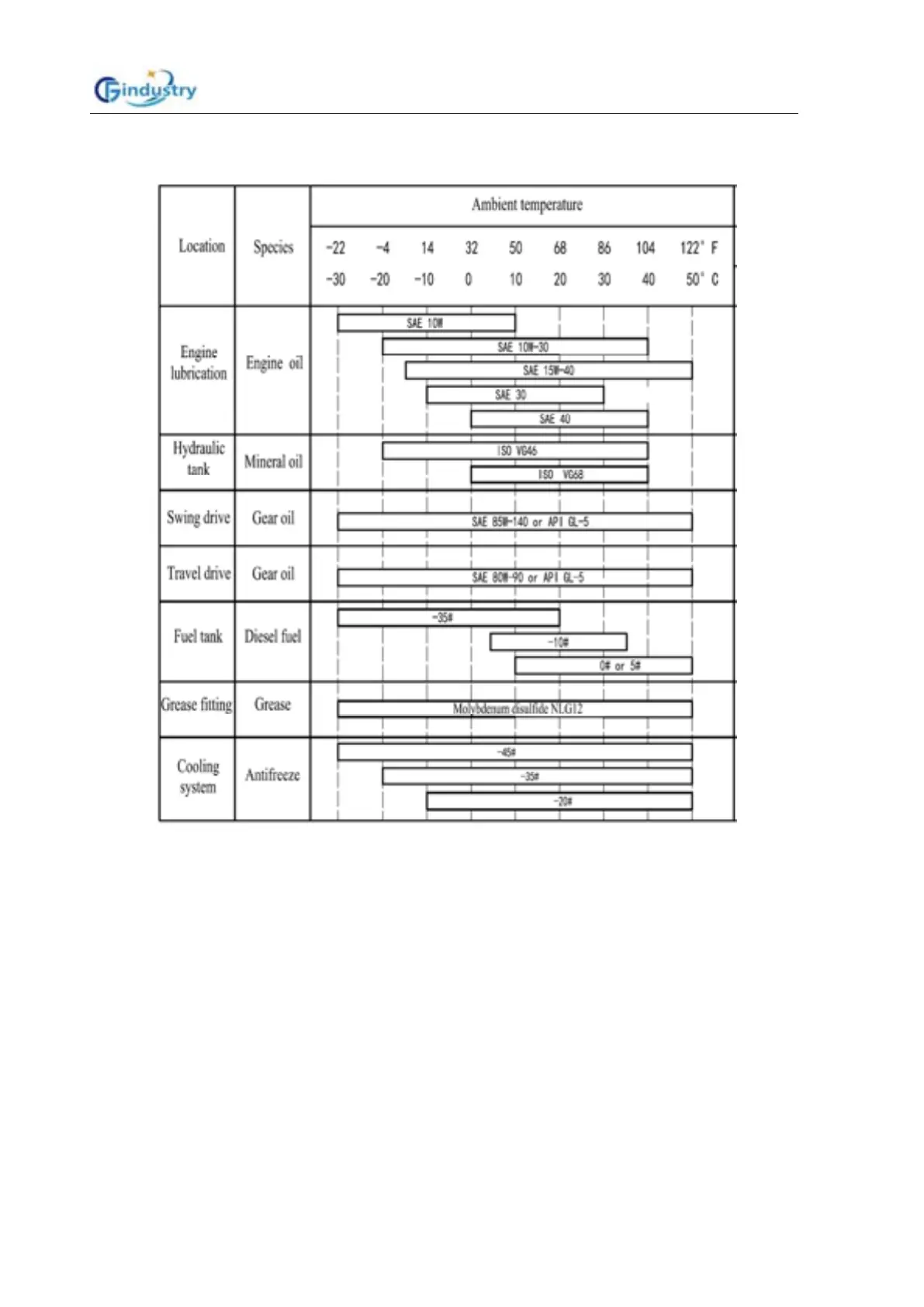

Please buy genuine oil from distributor, in order to ensure the quality of oil.

Notice:

SAE: Society of Automotive Engineers

ISO: International Organization for Standardization

API: American Petroleum Institute
