OPERATION & MAINTENANCE MANUAL STE35SR
49
switched off. This switch is used to cut off the current from the battery. Located in the machine
right cover, you can see it when
open the foot pad.
A: O, (Off) position
B: I, (Electrify) position
Before operating the machine, always place the switch in position I.

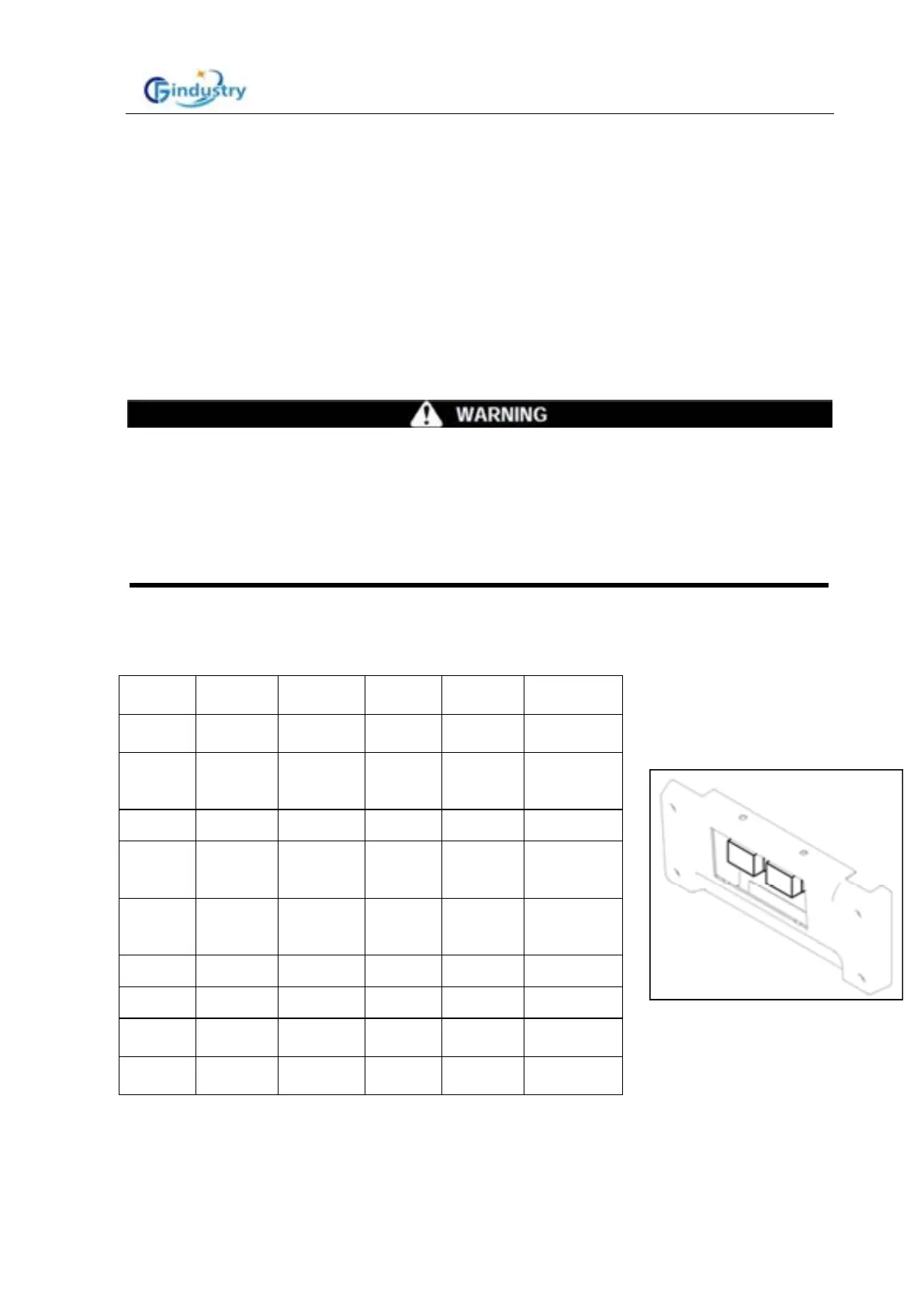

Fuse
The machine is equipped with a central controller, which is installed under the seat. The internal
fuse can prevent electrical equipment and wires from burning out. If the fuse box fuse is corroded
or white powder can be seen, or the fuse is loose in the fuse holder, replace the fuse.
 Before replacing a fuse, be sure to turn off the starting switch.
 Do not install the fuse that is specified on the label, otherwise there is a risk of damage to the
circuit board or fire.
 Fuse burn off, must identify the cause of the fault, the party can be replaced.
 After the fuse is blown out, the fuse must be replaced with the same standard.
 When the fuse is corroded, the surface appears white powder or fuse is loose, should check
and timely.
 The fused fuse can not be repaired, and should be replaced in a timely manner.
Fuse capacity and electrical name (After opening the fuse box cover, face the fuse box from left to
right)
Fuse
box
number
fuse
capacity
electrical
name
number
fuse
capacity
electrical
name
1 20A
Electric
lock
10 10A
Preheating
relay
2 10A
Cab
lights,
clocks
11 30A
Glow
plug
3 20A Monitor 12 30A starter
4 20A
The
cigarette
lighter
13 10A
Upper
electric
signal
5 10A
Solenoid
valve
14 30A
Flameout
Solenoid
valve
6 10A horn 15 10A radio
7 10A Relay 16 20A Wiper
8 10A motor 17 10A
Excitation,
Oil pump
9 30A
Plateau
valve
18 20A
Warm air
blower
