OPERATION & MAINTENANCE MANUAL STE35SR
Notice
When the lock lever is at the LOCK position, allow to start the engine only, otherwise it can not
work.
The lock lever is at the FREE position, if the engine stops, set the lock lever to the LOCK
position, then start the engine again.
4. Throttle knob
This knob is used to control engine speed and output power.
For the low speed position: push forward to reduce engine speed and power.
For the high speed position: Pull back to increase engine speed and power.
5. Working device control handle

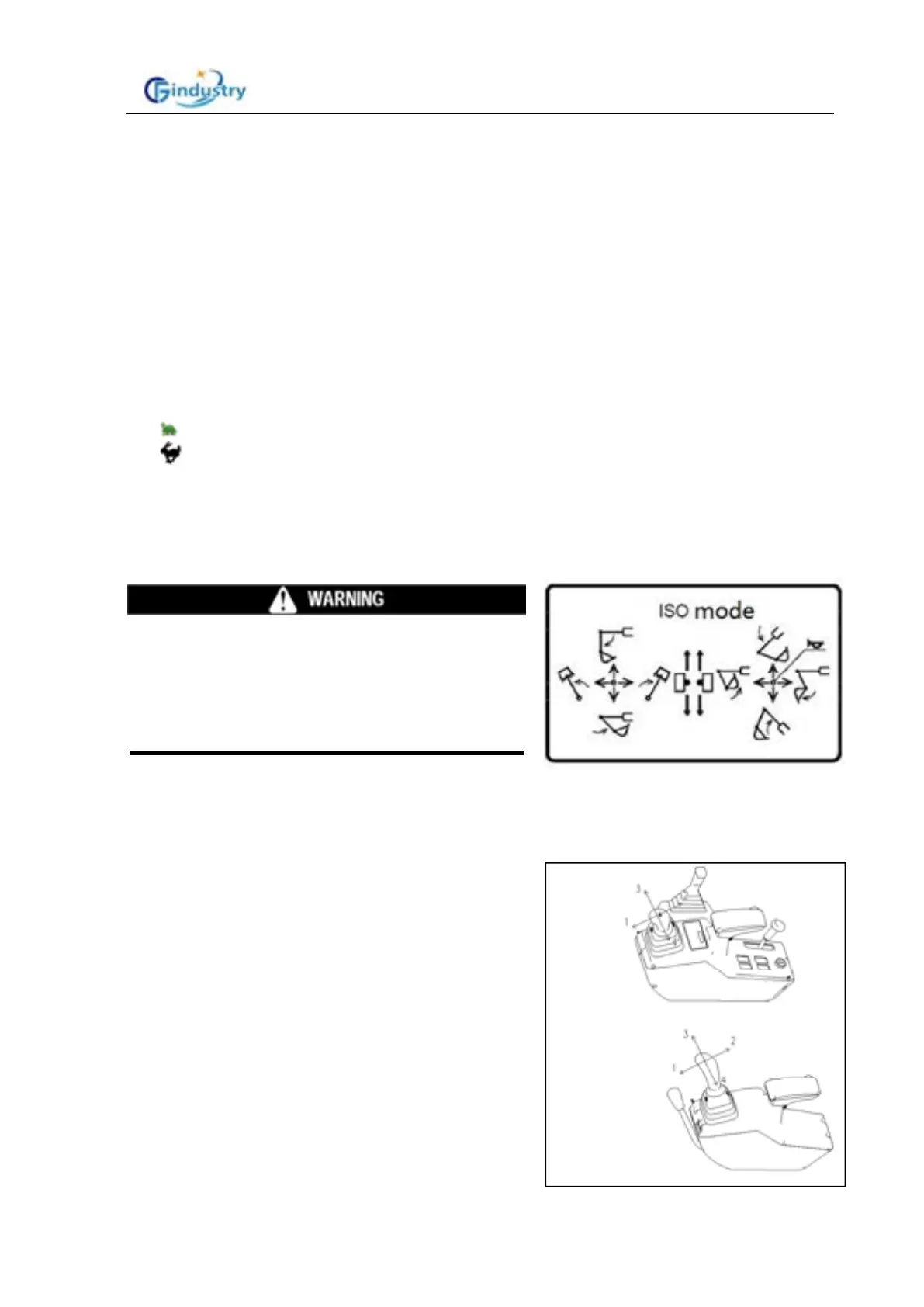

Operation mode is set to standard mode (ISO
mode)
When you need to change the mode of operation,
please contact the dealer.
When changing the mode of operation, please
replace operation signs to ensure consistent with
the operation of the machine.
Left work equipment control lever is used to turn and operate the arm.
1 Arm OUT
2 Arm IN
3 Swing to LEFT
4 Swing to RIGHT
Right work equipment control lever is used to operate
the boom and bucket.
1 Boom LOWER
2 Boom RAISE
3 Bucket DUMP
4 Bucket CURL
Middle: The upper body and stick, boom and bucket
remain in place.
