OPERATION & MAINTENANCE MANUAL STE35SR
IMPORTANT
If the air filter element is frequently cleaned before the alarm, the performance of the air filter
can not be fully played, making its filtering effect
worse.
In addition, dirt attached to the filter element
during cleaning will frequently fall to the inner filter
side, suction engine, resulting in engine wear.

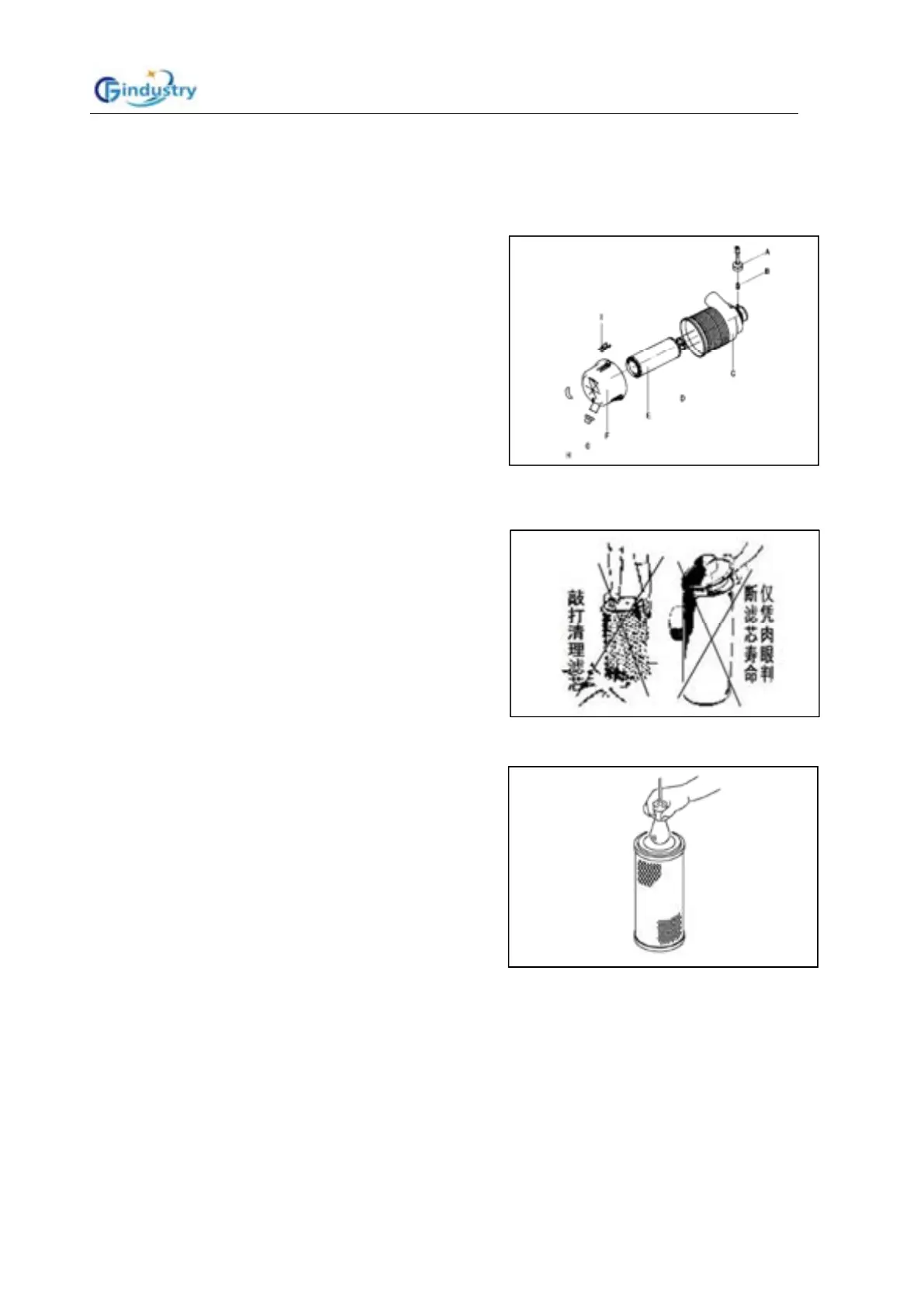

Air cleaner - Clean up
1. Open the engine cover and ensure that the brace is
locked.
2. Open the three locks on the end cover of the air filter (I).
3. Remove the end cover of the air filter (F).
4. Empty and clean the end cover and dust exhaust
valve (G), and clean the inside of the end cover shell
with a clean cloth.
5. Remove the main filter element (E).
NOTICE
If the dust valve (G) is cracked, damaged or lost, the dust valve needs to be replaced. If the
dust valve is intact, the dust valve needs to be
cleaned.
Main filter element (E) adopts radial seal, there will
be a certain resistance when taking off, should be
pulled out while rotating the main filter element,
remember not to beat the shell and the main filter
element.
Do not remove the safety filter element (D),
otherwise, dirt is easy to enter and cause engine failure. Unless the safety filter element is
damaged and spare parts are ready for replacement.
6. Check and clean the main filter element (E) and shell (C).
