Chroma 62150H-600S - APG Current Calibration

Programmable DC Power Supply (with Solar Array Simulation) 62000H Series
Operating & Programming Manual
3-72
[
S A V E A R G U M E N T ]
S A V E
=
N O
Figure 3-129
9. Press “
EXIT
” to return to the MAIN PAGE.
The calibration points may be different for other models (non
62150H-600S); perform the calibration following the instructions
displayed.
3.3.7.5 APG Current Calibration
3.3.7.5.1 Hardware Requirements
Table 3-10 lists the hardware requirements for APG current calibration.
Table 3-10
Device
Suggest Model or Capacity
DVM
HP 34401A or equivalent DVM
DC Power Supply
Any DC Power Supply or DC signal source
that can output 10Vdc and drive 100mA.
3.3.7.5.2 SETUP

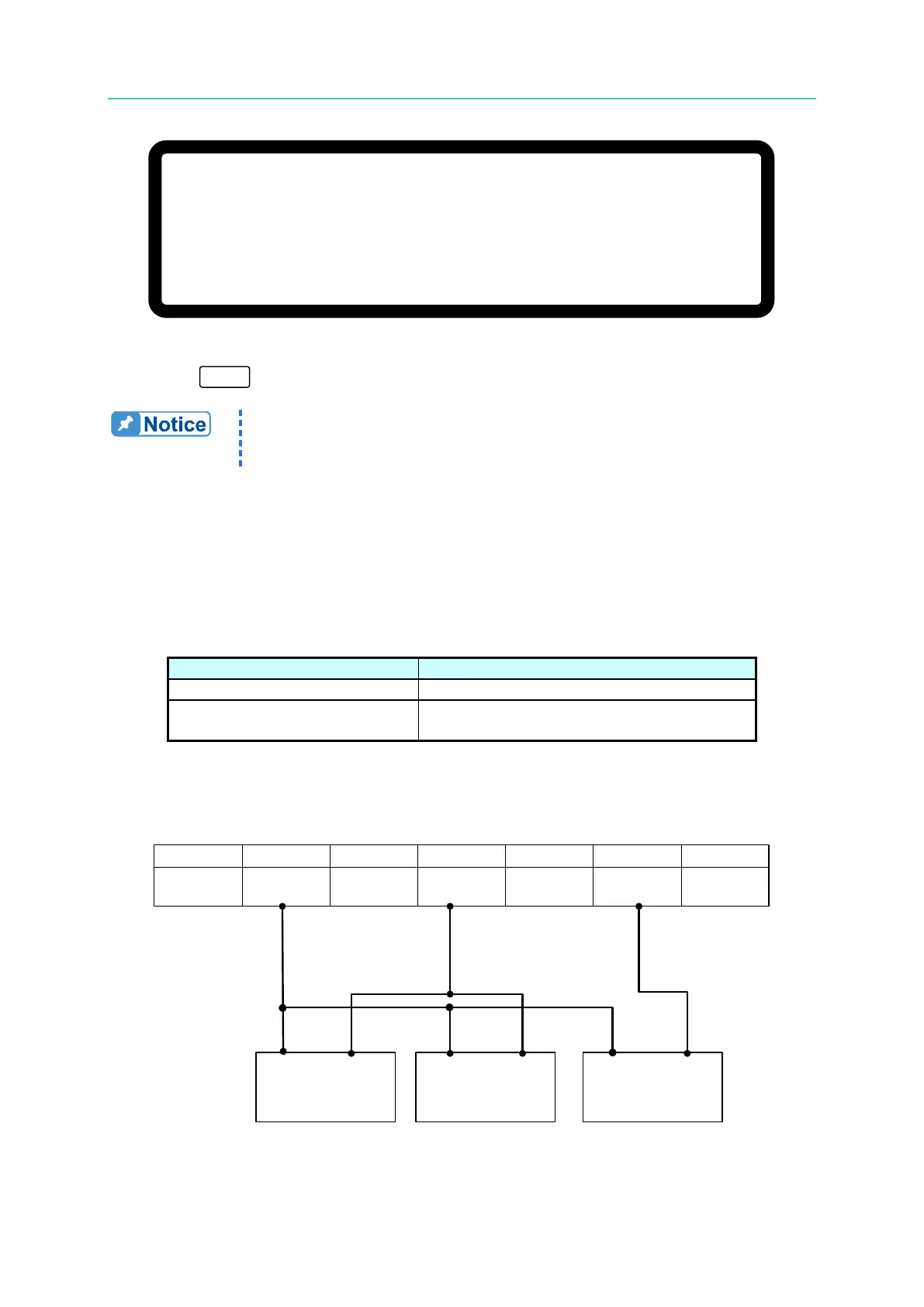

Figure 3-130 shows the wiring connections for APG current calibration.
Figure 3-130
+
+
− −
DC Power
Supply
DVM
1
DVM
2
−
+
1
+12VAPI
API GND AIO_SETV
14 ...
17 ...
19
AIO_MEAS
