hazards that may exist - unless specified proce-
dures are followed – a number of warning signs are
attached to CINCINNATI
Hydraulic Press Brakes.
Warning signs are not intended to be a substitute
for reading and understanding this Safety section
and machine Operation and Maintenance manual.
The warning signs are placed at strategic points on
the press brake for the most effective use. It is
intended that they become a permanent part of the
equipment and, therefore, must not be removed,
covered, hidden or defaced. All signs installed on
the machine by CINCINNATI INCORPORATED are
identified by a small six digit part number in the
lower right corner. If any of these plates become
damaged or defaced, new ones should be
ordered by contacting the factory or the nearest
CINCINNATI Sales and Service Office.
The following illustrations are of the warning signs
most commonly used on the hydraulic press
brakes. Some other signs may be furnished to cover
possible hazards due to special equipment or
machine features. The user management should
also include additional warning signs to cover any
hazards that may be presented by customer-added
auxiliary equipment.

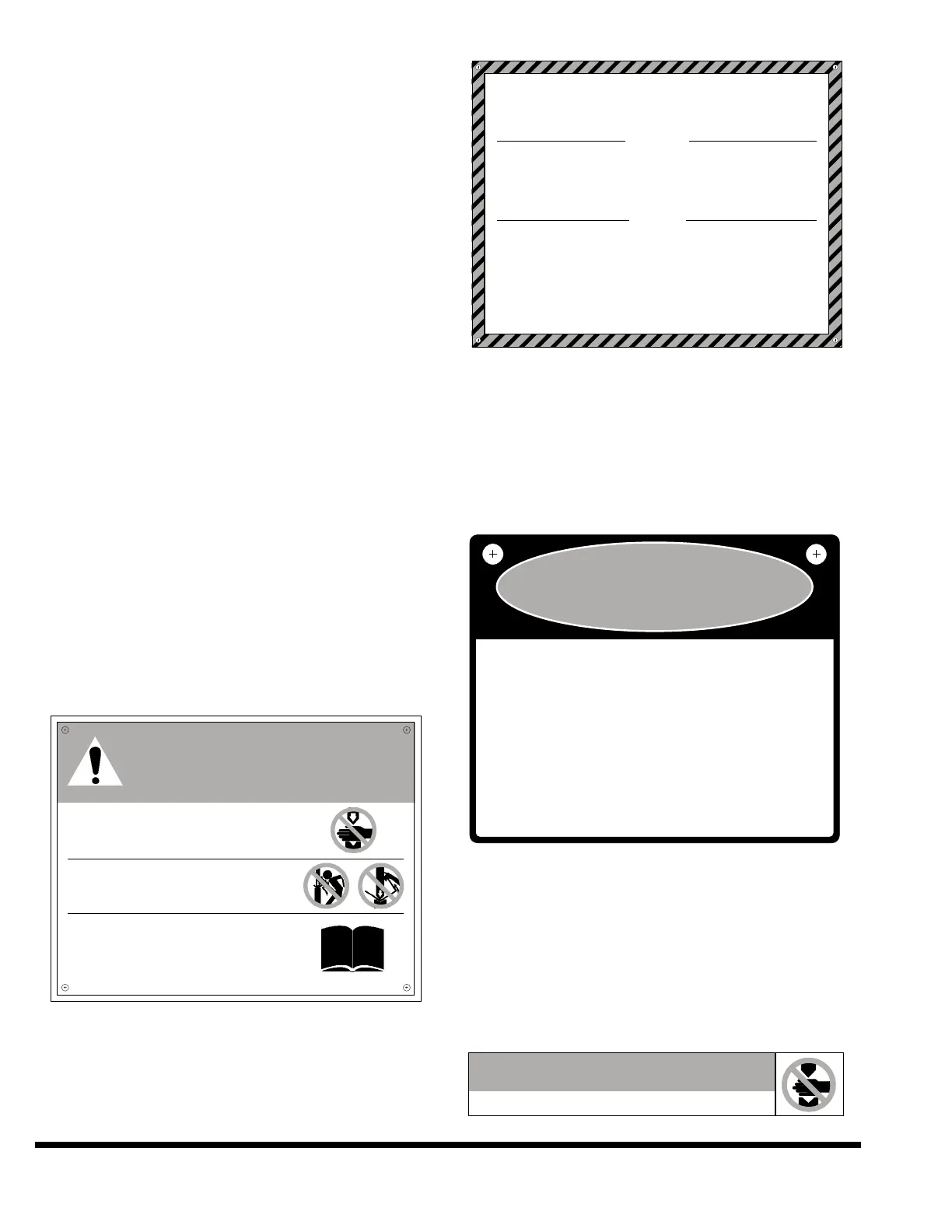

DANGER (240008)
This warning sign is attached to the press brake
ram, which is the most visible location on the
machine. The sign is a reminder to operators or
maintenance personnel that certain procedures
must be followed to prevent serious bodily injury.
SAFETY GUIDELINES (240003)
This sign is attached to the ram adjacent to the
DANGER sign. It provides a checklist of safety con-
siderations which should be observed before, dur-
ing and after operation of the press brake.
HAZARDOUS AREA (232913)
This sign warns of a hazardous area between the
machine housings at the rear of the press brake.
The sign is attached to a steel restraining cable
which spans the space between the housings. No
one should enter this area while the machine drive
motor is running or the control is energized.
DIE AREA (153725)
This DANGER sign warns the operator to keep his
hands out of the die area (point-of-operation). The
sign is usually attached to one end of CINCINNATI
dies and not on the press brake. These adhesive
backed signs have been furnished in safety update
packages and are available from CINCINNATI
INCORPORATED.
DANGER
KEEP HANDS OUT OF DIE AREA
➧
153725
DANGER
KEEP OUT OF THIS
AREA WHILE THE
MACHINE DRIVE
MOTOR IS RUNNING
DO NOT REMOVE THIS SIGN FROM THIS MACHINE
232913
● READ AND UNDERSTAND THE OPERATION AND SAFETY MANUAL
● KNOW HOW TO USE THE OPERATOR CONTROLS AND MODES OF OPERATION
● POSITION RAM AT BOTTOM OF WORKING STROKE
● TURN OPERATOR CONTROLS "OFF" (key lock) WHEN WORKING IN DIE AREA
● USE "INCH" MODE AND TWO HAND CONTROL
● TO AVOID SPLITTING DIE, MAKE CERTAIN TONNAGE CAPACITY OF DIE IS NOT EXCEEDED
● PROVIDE POINT OF OPERATION SAFEGUARDING
● TEST ALL THE REQUIRED OPERATION CONTROL STATIONS, MODES OF OPERATION AND
SAFEGUARDING
● INSTRUCT OPERATORS IN PROPER USE OF SET-UP
● REMOVE ALL KEYS UNDER SUPERVISORY CONTROL
● USE POINT OF OPERATION SAFEGUARDING
● KNOW THE SET-UP AND PROPER METHOD OF OPERATION
● TEST ALL THE REQUIRED OPERATOR CONTROL STATIONS AND MODES OF OPERATION
BEFORE EACH SHIFT, EACH JOB RUN, AND AFTER EACH BREAK
● KEEP HANDS OUT OF DIE AREA (point of operation)
● DO NOT POSITION ANY PART OF YOUR BODY WHERE IT MAY BE STRUCK OR CRUSHED BY
PART MOVEMENT
● USE HAND TOOLS FOR SMALL OR NARROW PIECE PARTS
● MAKE CERTAIN EVERYONE IS CLEAR OF PRESS BRAKE, DIES AND MATERIAL BEFORE OPERATING
● TURN OFF OR LOCKOUT OPERATOR CONTROLS WHEN NOT OPERATING PRESS BRAKE
● WHEN YOU LEAVE THIS PRESS BRAKE:
● POSITION RAM AT BOTTOM OF WORKING STROKE
● TURN OFF OR LOCKOUT OPERATOR CONTROLS
● TURN POWER OFF
DO NOT REMOVE THIS SIGN FROM THIS PRESS BRAKE 240003
SET-UP
OPERATION
SAFETY GUIDELINES
HYDRAULIC PRESS BRAKE
240008
DANGER
TO REDUCE THE POSSIBILITY OF INJURY . . .
DO NOT
DO NOT
ALWAYS
PLACE YOUR HANDS
IN THE DIE AREA
POSITION ANY PART OF YOUR
BODY WHERE IT MAY BE STRUCK
OR CRUSHED BY PART MOVEMENT
READ AND UNDERSTAND THE
OPERATION, MAINTENANCE AND
SAFETY MANUAL BEFORE
INSTALLING DIES, OPERATING OR
SERVICING THE PRESS BRAKE
DO NOT REMOVE THIS SIGN FROM THIS PRESS BRAKE
