MAIN DISCONNECT Switch: This switch controls
the incoming electrical supply to the machine.
After turning the main disconnect switch from
“ON” to “OFF”, wait 10-15 seconds before
switching back to “ON”. See Figure 6-4.
IMPORTANT: This 10-15 second delay is
required to allow machine functions to
reset properly.
POWER SUPPLIES OPERATIONAL Light: The
FM Control is a low voltage system. This light
indicates internal 24 volt power supply is oper-
ating correctly. See Figure 6-4. If no light is
illuminated and the machine is ON, a light
bulb is burned out. Advise Maintenance. Do
not operate the machine with non-function-
al operation-related indicator lights.

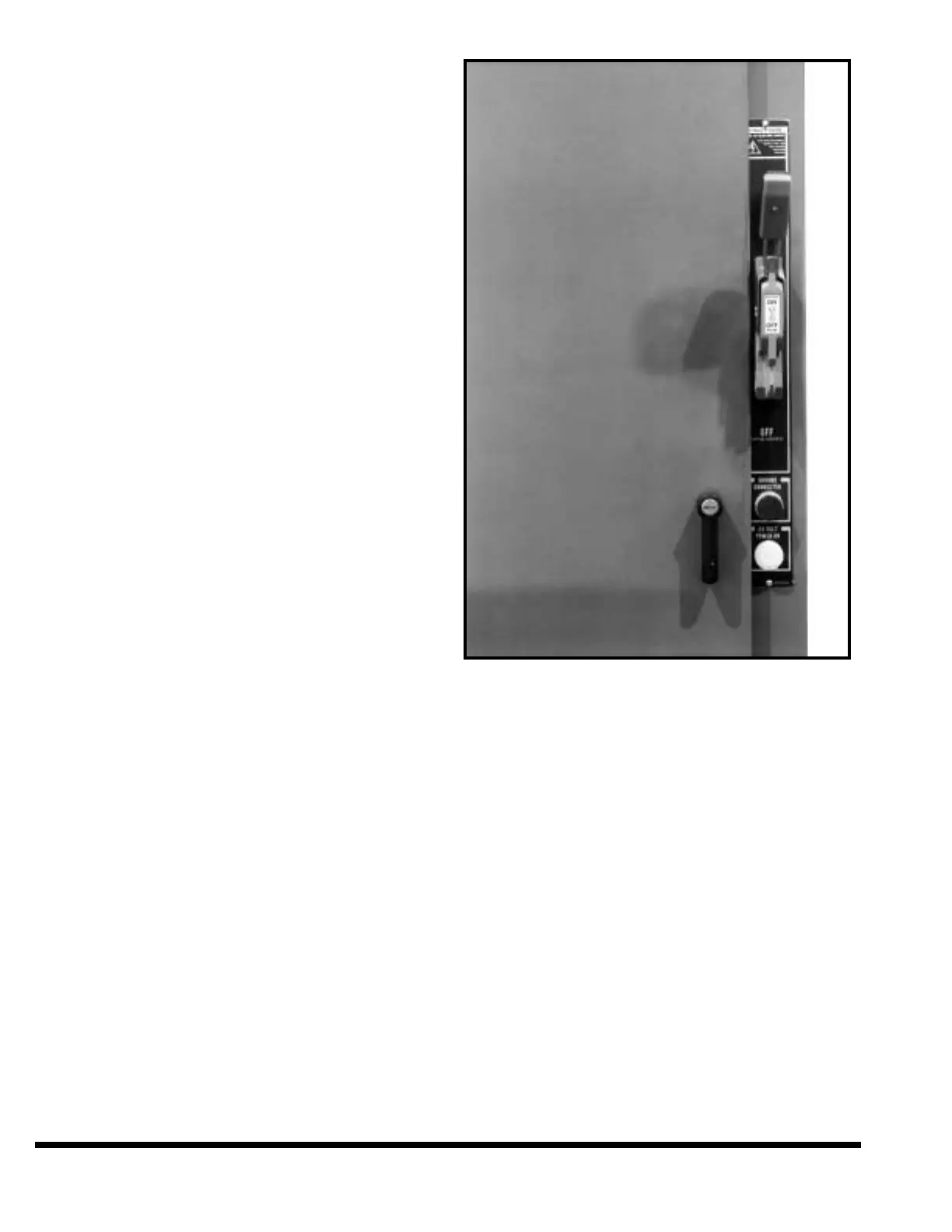

FIGURE 6-4 – Electrical Enclosure
❦
6-6
