Cisco 1240 Connected Grid Router Hardware Installation Guide
OL-26223-04
Chapter 3 Router Hardware Description
Router Overview

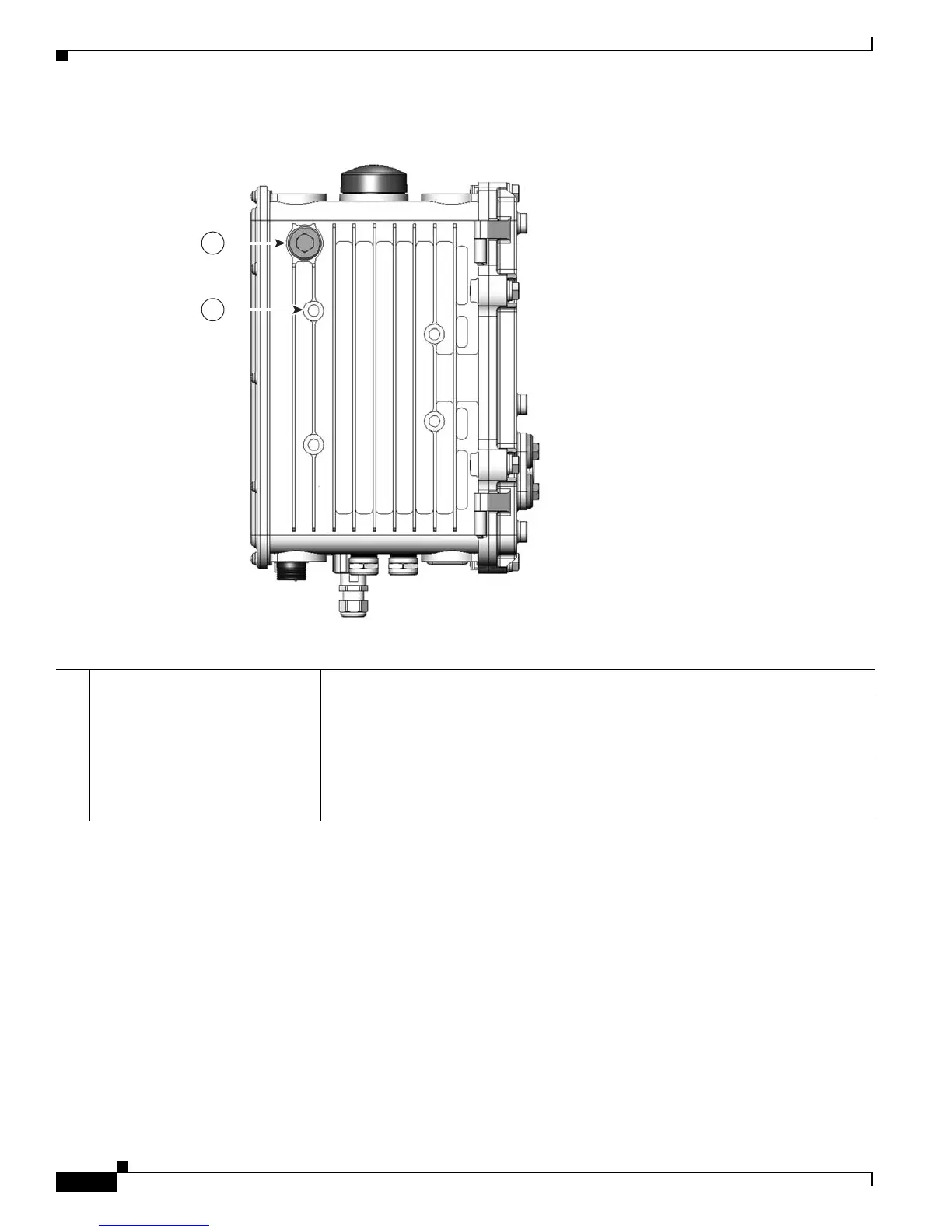

Figure 3-4 Router Right Side Exterior
Table 3-4 Router Right Side Exterior Features
Description Detailed Information
1 Console port access Remove the plug shown here to access the console port. This port is described in the
“Console Port” section on page 3-14, later in this chapter. For detailed information
about connecting to this port, see the “Installing the Router” chapter.
2 Mounting bracket posts (4) Attach supported brackets to the router using these mounting posts. For information
about router mounting options and procedures, see the “Mounting the Router”
chapter.
300535
1
2
