CFM is mandatory in the case of Layer 2 Fabric Network Architecture to ensure that link failure detection
is fast.
Note

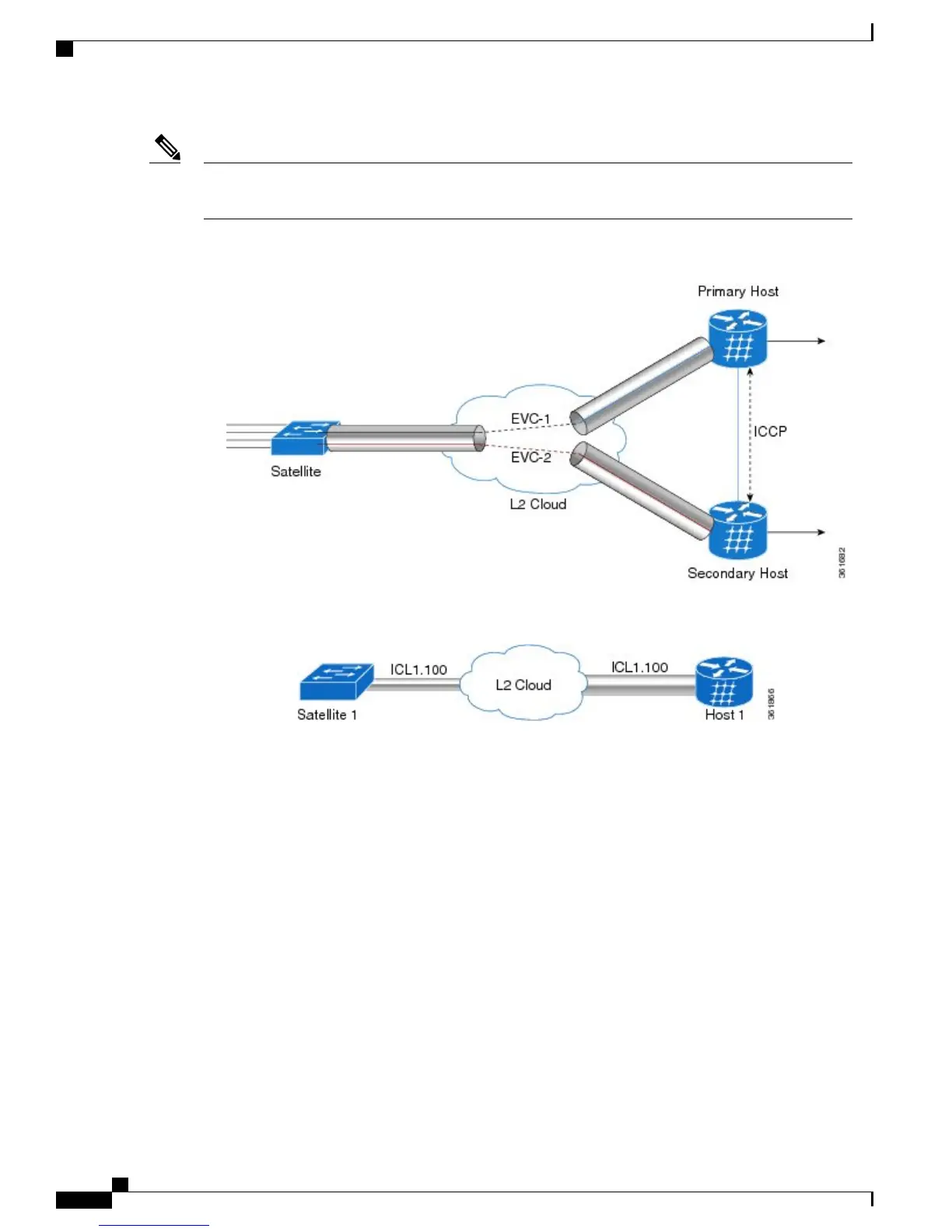

Figure 5: Layer 2 Fabric Satellite Network Architecture with dual host
Figure 6: Layer 2 Fabric Single Home (SH) with Single Physical ICL on Host and Satellite
Figure 7: DH : Single physical ICLs on hosts and Multiple physical ICLs on satellite
