Use Cases for Satellite nV System Access Port Bundles
These are different use cases of satellite topologies with Satellite nV System access port bundles along with
redundant ICL.

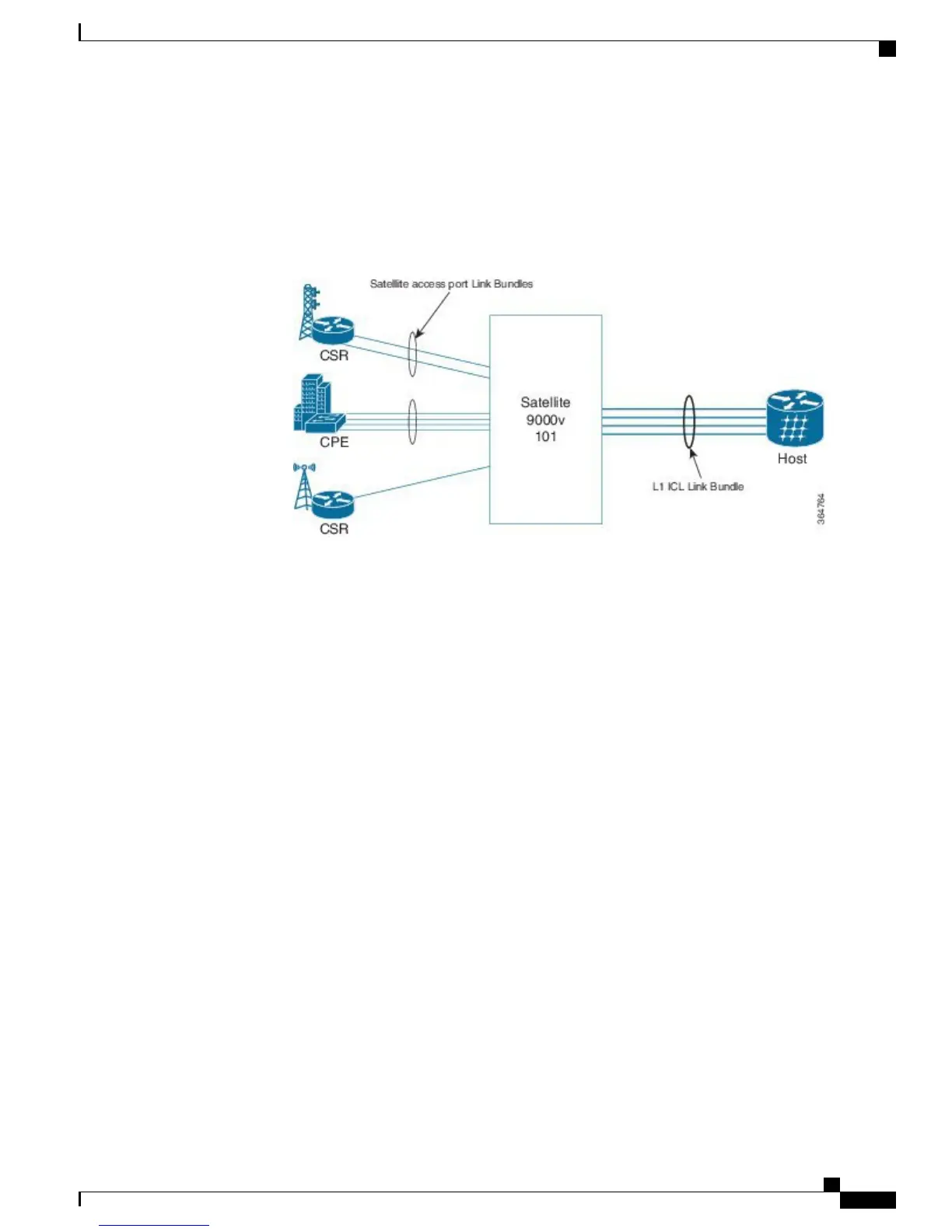

Figure 8: Multiple Access Bundles over single ICL Bundle to Single Host
