Port Level Parameters Configured on a Satellite
These are the port-level parameters that can be configured on a satellite nV system:
•
Admin state (shut and no shut)
•
Ethernet MTU
•
Ethernet MAC Address.
•
Ethernet link auto-negotiation that includes,
◦
Half and full duplex
◦
Link speed
◦
Flow control
•
Static configuration of auto-negotiation parameters such as speed, duplex, and flow control
•
Carrier delay
•
Layer-1 packet loopback which includes,
◦
Line loopback
◦
Internal loopback
•
All satellite access port features on Cisco ASR 9000 Series Router.
Loopback Types on Satellite Ports
There are two types of loopback interfaces that can be configured on satellite ports. They are,
•
Line Loopback
•
Internal Loopback

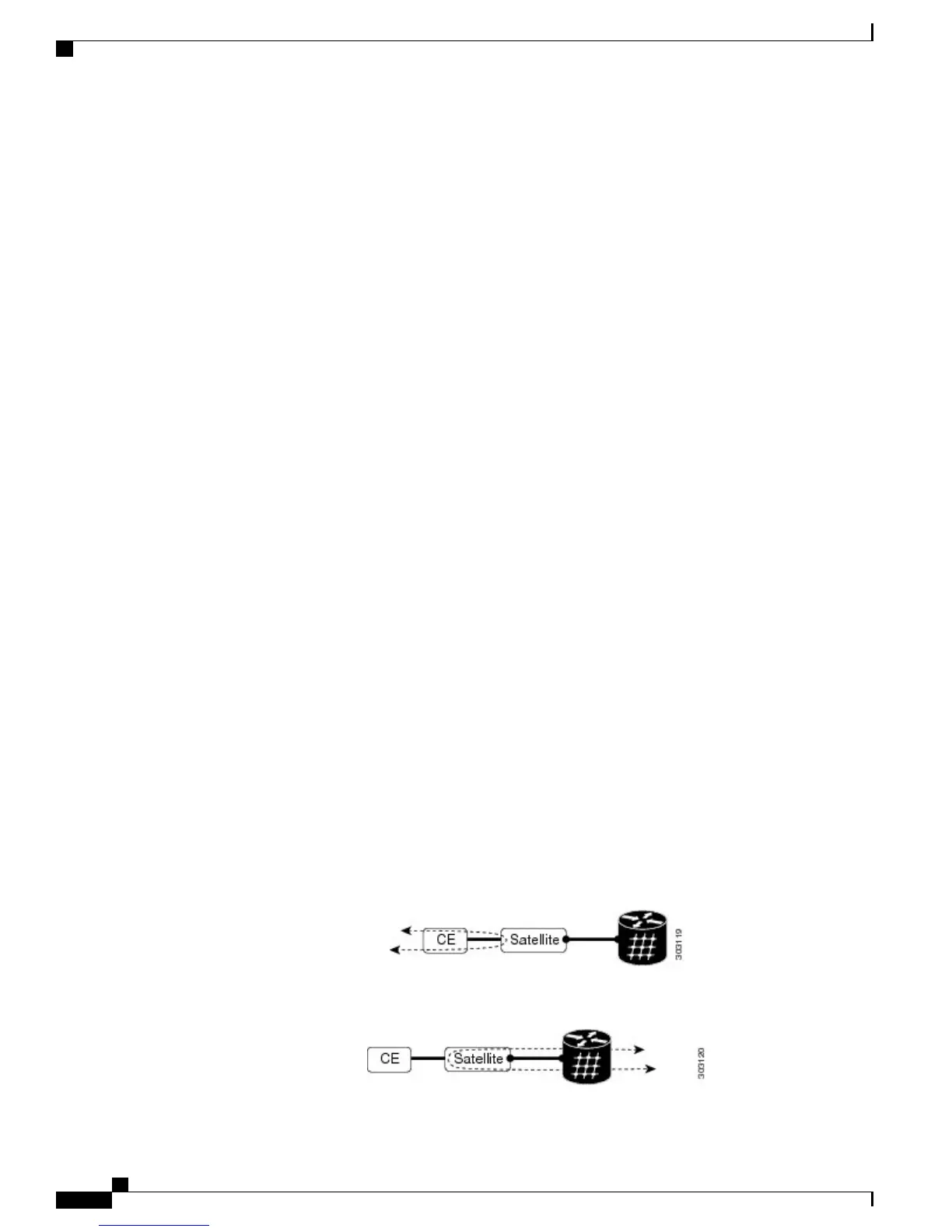

These illustrations show how the loopback interface types function on a satellite.
Figure 12: Line Loopback
Figure 13: Internal Loopback
Cisco ASR 9000 Series Aggregation Services Router nV System Configuration Guide, Release 5.3.x
64
Configuring the Satellite Network Virtualization (nV) System
Port Level Parameters Configured on a Satellite
