Cisco ASR 9000 Series System Configuration Guide

Limitations of Layer 2 Fabric Network Topology
1
Bundle interfaces are not supported in Layer 2 Fabric architecture. In the Layer 2 Fabric topology, bundle
ICL is not supported but sat-ether port bundle is supported.
2
Point to Multi-point Layer 2 cloud is not supported.
3
A Satellite can support only one encapsulation on a given physical interface. So, the Layer 2 fabric
connections from both hosts must be configured with the same encapsulation type.
4
A Satellite cannot support multiple Layer 2 fabric connections with the same VLAN on the same physical
ICL interface.
5
When Satellite ethernet bundle interfaces are configured on the access ports, the bundle wait timer needs
to be configured to zero to get better convergence.
6
Cisco ASR 9000v has these limitations on the Layer 2 Fabric network topology:
•
The usable VLAN range is from 2 to 4093.
•
Only four 10 Gigabit Ethernet ICLs can be used on the ports 1/45 to 1/48.
•
Only two 1 Gigabit Ethernet ICLs can be used on the ports 1/45 and 1/46.
•
Only 44 satellite ports are present (namely, Gig1/1 to Gig1/44).
7
Cisco ASR 901 has these limitations on the Layer 2 Fabric network topology:
•
The usable VLAN range is from 2 to 4094.
•
Only two 1 Gigabit Ethernet ICLs can be used (Gig0/10, Gig0/11). However, from Release 5.2.2
onwards, any two ports of the 12 available ports can be configured as ICL. Remaining 10 ports are
satellite ports.
8

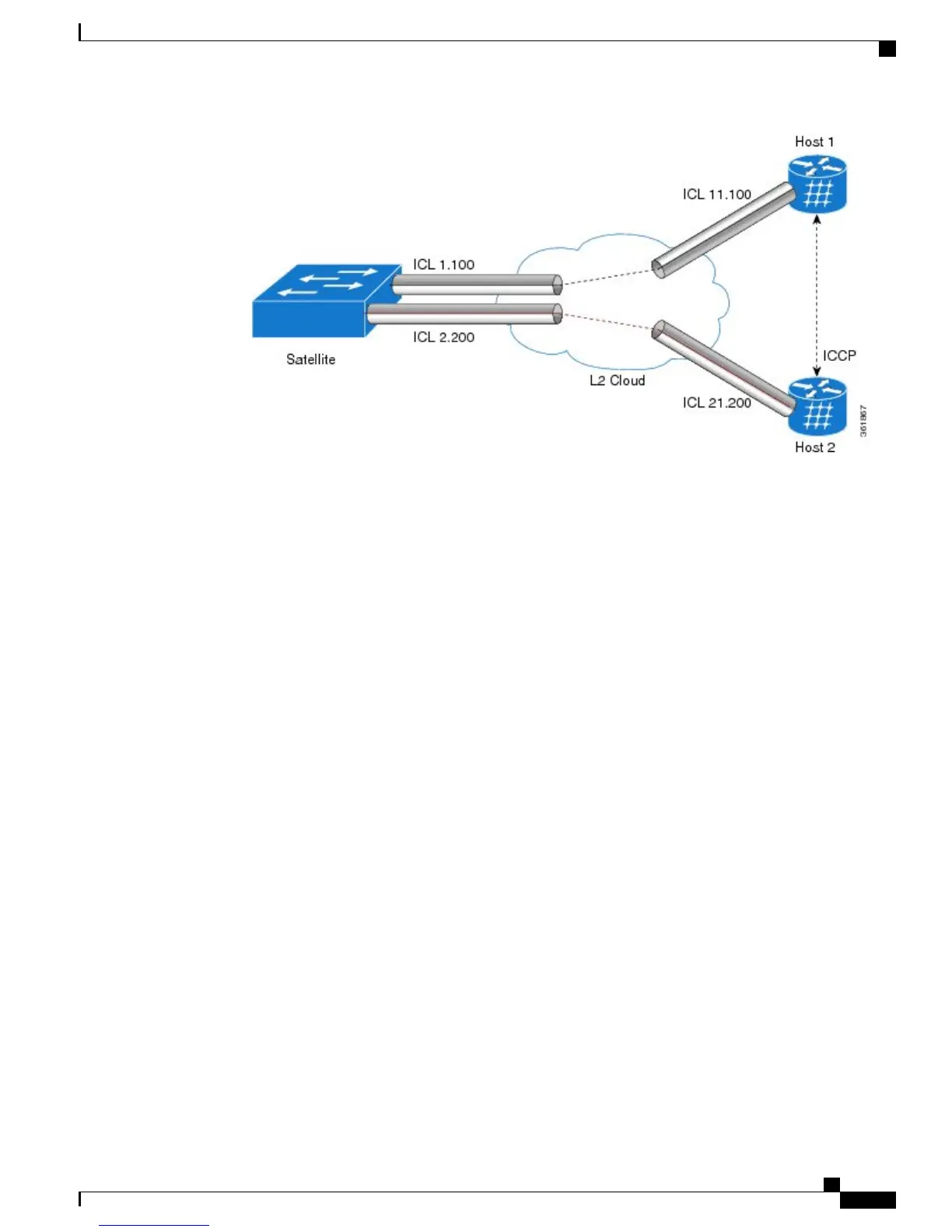

When a single physical ICLs is connected on both hosts and multiple physical ICLs are connected on
satellite, the following limitations are applied:
Cisco ASR 9000 Series Aggregation Services Router nV System Configuration Guide, Release 5.3.x
17
Configuring the Satellite Network Virtualization (nV) System
Layer 2 Fabric Network Architecture
