Introduction
Initial Installation
Cisco Small Business WRV210 Administration Guide 8
1

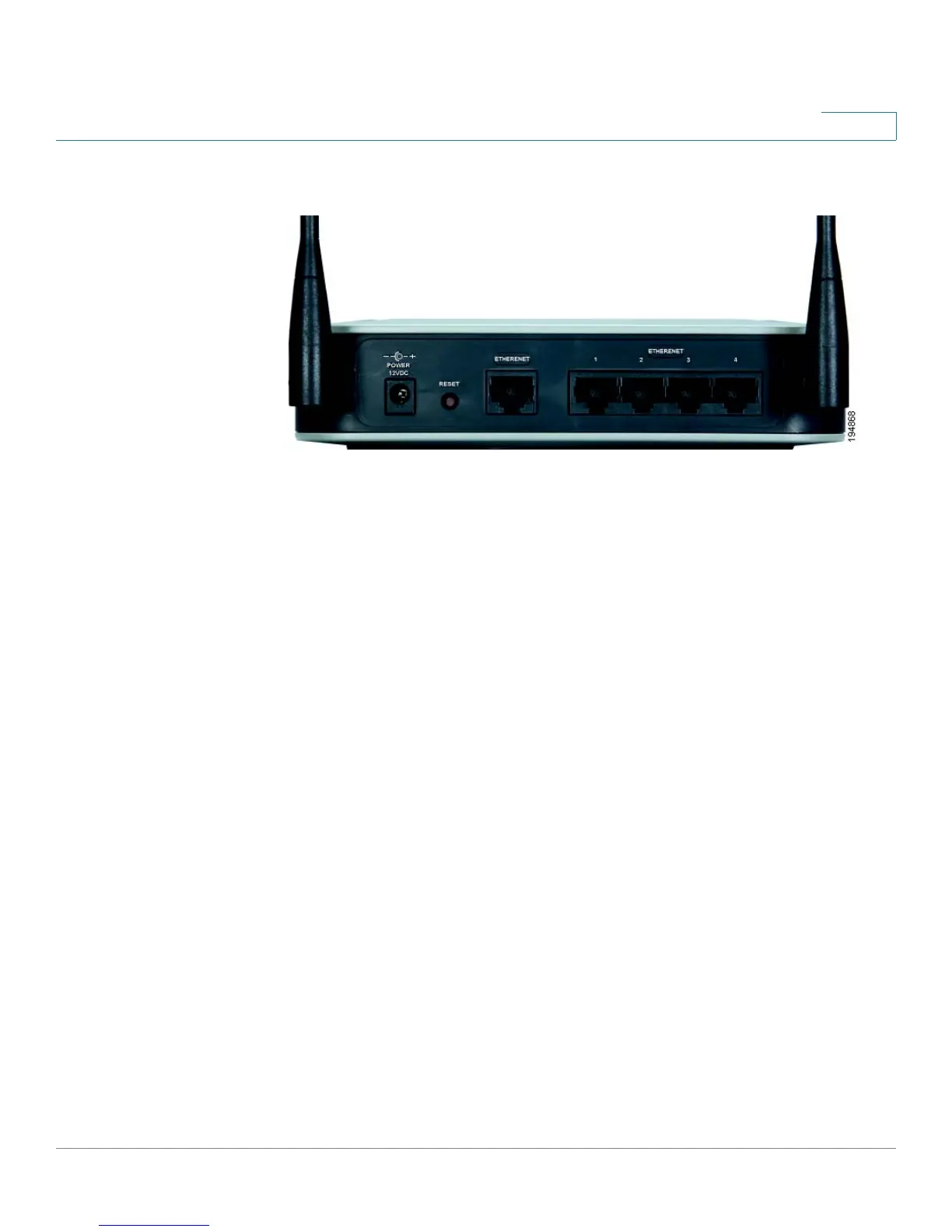

Back Panel
POWER—The Power port is where you connect the AC power cable.
RESET—The Reset button has two functions.
• If pressed for one second, the Reset button causes a warm reboot—the
Router restarts without losing any of the current configuration settings.
• If pressed for approximately 15 seconds, the Reset button resets the
Router’s factory defaults.
You can also restore the factory defaults from the
Administration > Factory Defaults
screen of the Router’s Configuration Utility.
INTERNET—The Internet port connects to your cable or DSL modem.
1-4 (ETHERNET)—The four Ethernet ports connect to your PCs and other network
devices.
Initial Installation
Follow the instructions below to connect the equipment and configure the Internet
connection and wireless network.
• “Placement Options” on page 9
• Connecting the Equipment, page 9
• Verifying the Hardware Installation, page 11
• Configuring the Internet Connection, page 12
