Introduction
Initial Installation
Cisco Small Business WRV210 Administration Guide 9
1
• Securing the Wireless Network, page 13
Placement Options
You can place the router horizontally on a desktop or mount it on the wall.
Desktop Option
For desktop placement, place the router horizontally on a surface so it sits on its
four rubber feet.
Wall Option
To mount the router on the wall, follow these steps.

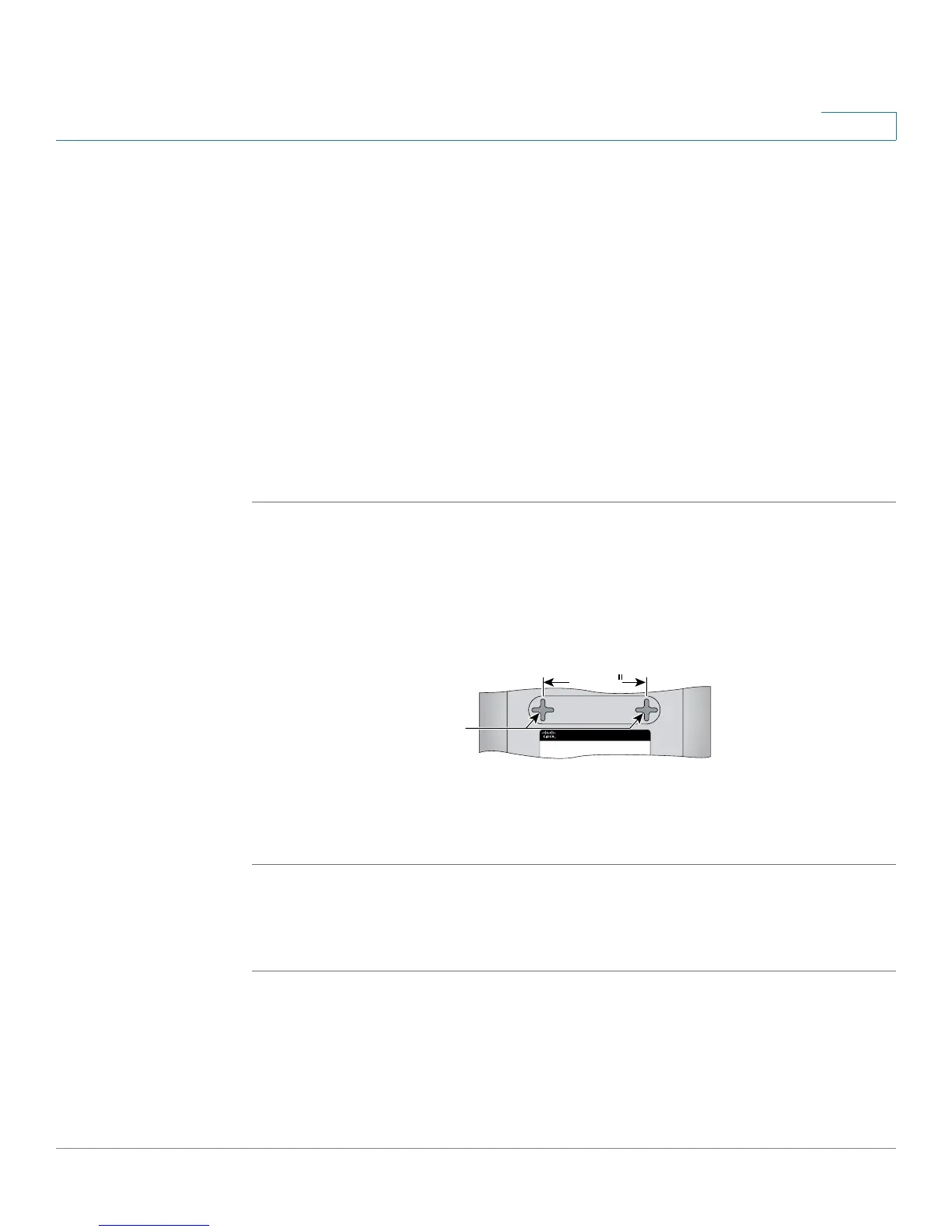

STEP 1 Determine where you want to mount the router.
STEP 2 Install two screws (not supplied) 2-9/16 in. apart (approximately 6.45 cm.) Leave
about 1/8 in. (about 3 mm) of the head exposed.
STEP 3 With the back panel pointing up (if installing vertically), position the router so that
the wall-mount crisscross slots on the bottom panel line up with the two screws.
STEP 4 Place the wall-mount slots over the screws and slide the router down until the
screws fit snugly into the wall-mount slots.
Connecting the Equipment
STEP 1 Make sure that all of the network hardware is powered off, including the Router,
PCs, and cable or DSL modem.
STEP 2 Connect one end of an Ethernet network cable to one of the LAN ports (labeled 1-
4) on the back of the Router, and the other end to an Ethernet port on a PC.
