Operation QUANTUM TIC
3-12 10/04

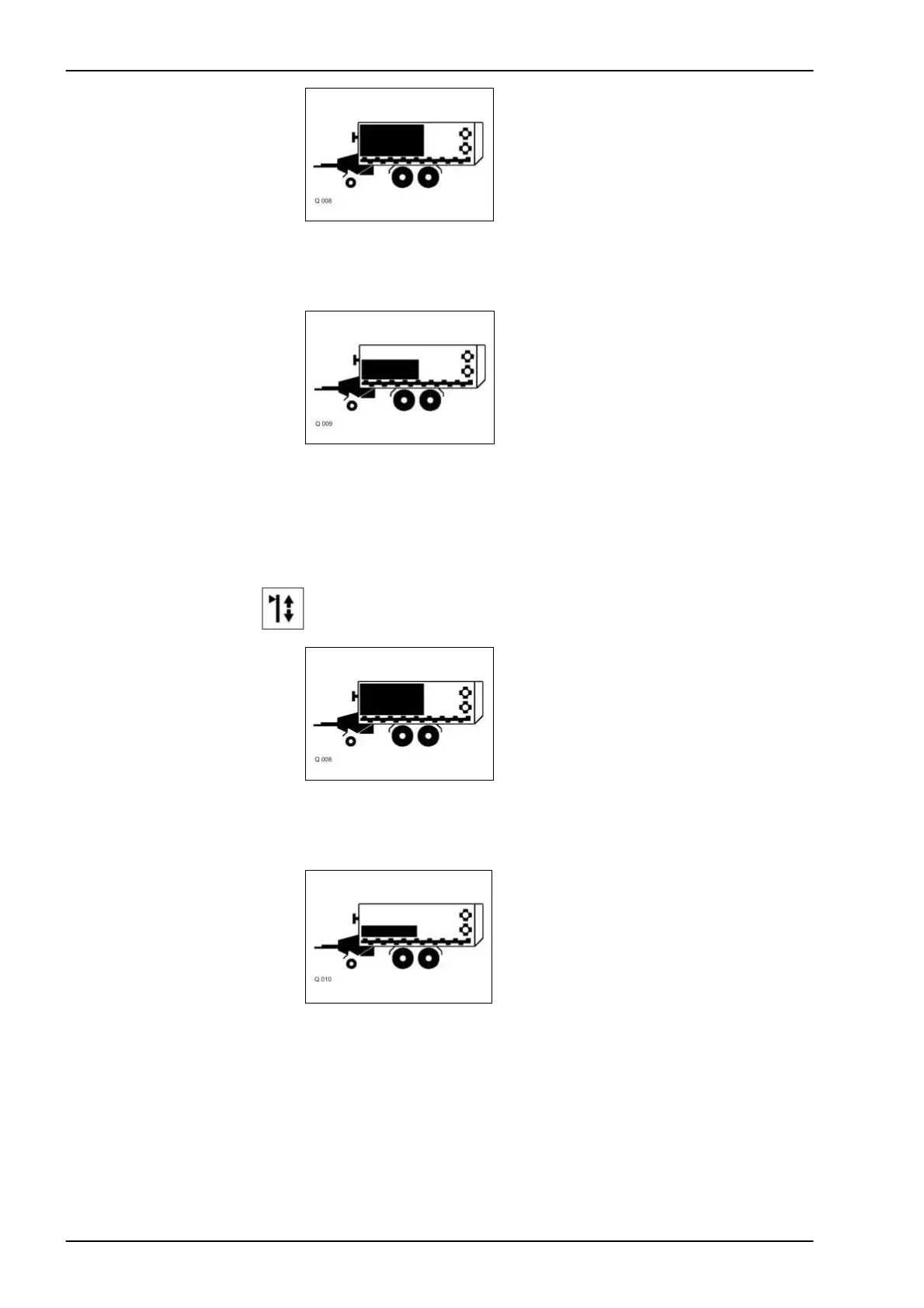

The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
Upper position
(e.g. for loading dry fodder): The floor conveyor is switched on when the
cover plates are raised. All 3 plates are linked with one another.
The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
Lower position
(e.g. for loading green fodder and silage): The floor conveyor is switched
on when the feelers at the front wall are lifted.
The floor conveyor will run until the feelers and/or the top plate are free
again.
Micro switch (3) in top
position:
Using this button allows switching between fully loading the wagon
and deactivating the automatic filling.
The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
Upper position
(e.g. for loading dry fodder): The floor conveyor is switched on when the
centre top plate is raised.
The black filling bar ceases
to apply from serial no. and
installation of EPROM
350 812-5.
The filling indicator disappears:
The automatic filling mode is deactivated; the floor conveyor has to be
operated manually.
To adjust the micro switch, switch off the control box and the oil supply
from the tractor. Then open the distributor box located in the front part of
the wagon and switch over using a small screwdriver. Close the box and
connect the oil supply to the tractor.
